FL1850.2-R15

Report Status
Approved
Code Version
2023 Florida Building Code
Application Type
Revision
Folio:
Model:

Bertha HV Accordion Shutter (Combo) - HVHZ - Drawing#23-128

Database:
Florida Product Approval
Source Link:
Description:

Extruded aluminum interlocking blades retained by tracks (top and bottom) for storm protection

Listing Details
Category:
Impact Protection Devices
Subcategory:
Accordion
Evaluator:
Walter A. Tillit, Jr., P.E. - PE-44167
Validator:
John Henry Kampmann Jr.
Official Site Status:
Approved
Compliance Method:
Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Approval Method:
Method 1 Option D
Entity:

Specifications
Submission Date:
October 14, 2023
Validation Date:
October 17, 2023
HVHZ Approved:
Yes
Impact Resistant:
Yes [FL]
Possible CSI Codes:
CSI Code: 08 11 69.23 - Aluminum Storm Doors and Frames
CSI Code: 05 15 13 - Aluminum Wire Rope Assemblies
CSI Code: 08 12 16 - Aluminum Frames
CSI Code: 05 14 00 - Structural Aluminum Framing
CSI Code: 10 26 16.16 - Protective Corridor Handrails
Other:
Large Missile Level D. Max. span is 13'-2" for 30 psf positive ASD load w/o window blade, 16'-0" for 30 psf negative ASD load for HV1 blade w/o window blade for conditions indicated on schedule #1, sheet 12. And 12'-3" for 30 psf positive ASD load w/o window blade and 15'-5 for 30 psf negative ASD load for HV2 blade w/o window blade. See sheets number 12, 25, 28 and 28A of installation drawings for other spans and pressures.
Notes:


Date Submitted: October 14, 2023

Date Validated: October 17, 2023

Entity:

Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer

Other: Large Missile Level D. Max. span is 13'-2" for 30 psf positive ASD load w/o window blade, 16'-0" for 30 psf negative ASD load for HV1 blade w/o window blade for conditions indicated on schedule #1, sheet 12. And 12'-3" for 30 psf positive ASD load w/o window blade and 15'-5 for 30 psf negative ASD load for HV2 blade w/o window blade. See sheets number 12, 25, 28 and 28A of installation drawings for other spans and pressures.

Official Site Status: Approved

Subcategory: Accordion
Manufacturer Info
The American Shutter Systems Association, Inc. (ASSA) is a non-profit trade association dedicated to promoting the interests of the shutter industry. Founded in 1980, ASSA represents shutter manufacturers, distributors, and retailers, as well as related businesses such as shutter installers and repair specialists. The association works to improve industry standards, educate consumers about the benefits of shutters, and provide networking opportunities for its members. View all listings
* This manufacturer has not claimed their profile. Any logo or description displayed above has been generated by AI.
Contact Information
Representative:
Bill Feeley
Address:
4268 Westroads Drive,
West Palm Beach, Florida 33407 USA

Read, ask experts, & comment on this topic. All for free.

Latest Posts From This Product Category

Ask The Circle
Listing Changes
Last Synced: 02/06/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

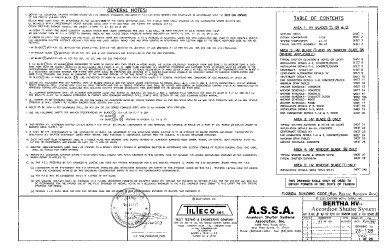

PR INSTL DOCS FL1850 R15 II DRAWING 23-128
PR INSTL DOCS FL1850 R15 II DRAWING 23-128
PR TECH DOCS FL1850 R15 AE PRODUCT EVALUATION REPORT DRAWING 23-128
PR TECH DOCS FL1850 R15 AE PRODUCT EVALUATION REPORT DRAWING 23-128
