FL3557.3-R12
Report Status
Approved
Code Version
2017 Florida Building Code
Application Type
Revision
Folio:
Model:
HA4 and HA8 Hurricane/Seismic Clip
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
18 gauge (minimum thickness with coating 0.0466") steel clips are used to fasten rafters and trusses to wall top plates.
Listing Details
Specifications
Submission Date:
September 12, 2019
Validation Date:
October 2, 2019
Possible CSI Codes:
CSI Code: 05 15 16 - Steel Wire Rope Assemblies
CSI Code: 05 15 00 - Wire Rope Assemblies
CSI Code: 05 15 19 - Stainless-Steel Wire Rope Assemblies
CSI Code: 05 15 13 - Aluminum Wire Rope Assemblies
CSI Code: 05 45 00 - Metal Support Assemblies
Other:
The clips resist uplift loads and forces applied parallel to and perpendicular to the top plates. The HA4 clip is 4-1/2" long. The HA8 clip is 8 long. ASTM A 653, Structural Steel, Grade 50, Class 3 (Fu=70 ksi, Fy=50 ksi) steel, G90 zinc coating.
Notes:
Date Submitted: September 12, 2019
Date Validated: October 2, 2019
Entity: DrJ Engineering LLC
Compliance Method: Certification Mark or Listing
Other: The clips resist uplift loads and forces applied parallel to and perpendicular to the top plates. The HA4 clip is 4-1/2" long. The HA8 clip is 8 long. ASTM A 653, Structural Steel, Grade 50, Class 3 (Fu=70 ksi, Fy=50 ksi) steel, G90 zinc coating.
Official Site Status: Approved
Subcategory: Wood Connectors
Manufacturer Info
Quick Tie Products, Inc. is a worldwide leader in the design and manufacture of high-quality construction fasteners. Since 1997, contractors, remodelers, and do-it-yourselfers have relied on Quick Tie's innovative fastening solutions to deliver superior results in concrete forming, reinforcing, and masonry projects. View all listings
* This manufacturer has not claimed their profile. Any logo or description displayed above has been generated by AI.
Contact Information
Representative:
Harvel Crumley
Address:
13300 Vantage Way,
Jacksonville, Florida 32218 USA
Jacksonville, Florida 32218 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 04/27/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

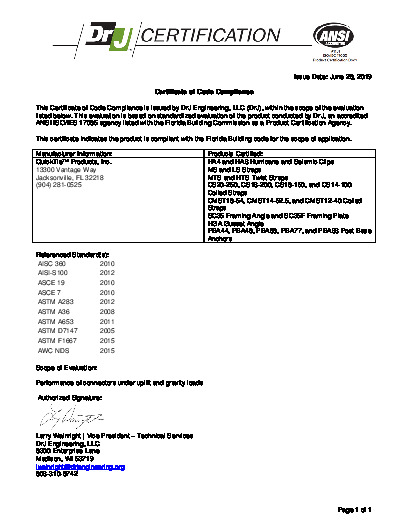

PR CERTIFICATE FL3557 R12 C CAC 190726 0910-01 FPA CERTIFICATE DRJ
PR INSTL DOCS FL3557 R12 II HA4, MTS,HTS INSTALLATION INSTRUCTIONS UPDATED
PR TECH DOCS FL3557 R12 AE TER 0910 01 QT ALL PRODUCT LINES SEALED
