FL5684

Parent Folder

Save to Favorites

Most Recent Revision

FL5684-R12

Revision Folder

Manufacturer

Clopay Building Products Company

Report Status

Approved

Code

2023 Florida Building Code

Validator

Gary Pfuehler

Approvals in this folder:

PR Instl Docs FL5684 R12 II 104119-Rev05

Gallery/Artistry/Expressions: Double-skin Insulated (exterior skin 27 ga. min.; interior skin 27 ga. min.) Single-Car (up to 90 wide) WINDCODE® W8 Garage Door

01 W8-09 DSIE-1F471: GD2SP, GR2SP, GD2LP, GR2LP, AR2SP, AR2LP, ED2SP, ED2LP, 4302, 6202, SFC68, 4305, HDGR, MFR68, 6205, SFR68

PR Instl Docs FL5684 R12 II DISCONTINUED

Double-skin Insulated EPS (exterior skin 24 ga. min.; interior skin 27 ga. min.) WINDCODE® W8 Sectional Door, up to 122 wide, with optional Impact Resistant Glazing

10 W8-12 C-DSIE-1F447: 3200, 3205, 3220, 240, 240G

PR Instl Docs FL5684 R12 II DISCONTINUED

Ribbed Steel (min. 24 ga.) WINDCODE® W8 Sectional Door, up to 122

11 W8-12 C-PAN-1E448: 524, 520, 224, C4ST, C0ST

PR Instl Docs FL5684 R12 II DISCONTINUED

Ribbed Steel (min. 24 ga.) WINDCODE® W8 Sectional Door, 123 to 142

12 W8-14 C-PAN-1E448: 524, 520, 224, C4ST, C0ST

PR Instl Docs FL5684 R12 II DISCONTINUED

Gallery/Artistry/Expressions: Steel Pan (min. 24 ga.) Double-Car (up to 162 wide) WINDCODE® W8 Garage Door

13 W8-16 PAN-2F443: G4S, GS4, GD4S, GR4S, E4S, ED4S, SS4, AR4S

PR Instl Docs FL5684 R12 II DISCONTINUED

Gallery/Artistry/Expressions: Double-skin Insulated (exterior skin 27 ga. min.; interior skin 27 ga. min.) Double-Car (up to 162 wide) WINDCODE® W8 Garage Door

14 W8-16 DSIE-1F471: GD2SP, GR2SP, GD2LP, GR2LP, AR2SP, AR2LP, ED2SP, ED2LP

PR Instl Docs FL5684 R12 II DISCONTINUED

Double-skin Insulated (exterior skin 27 ga. min.; interior skin 27 ga. min.) with Overlay Double-Car (92 up to 16'2" wide) WINDCODE® W8 Garage Door

15 W8-16 DSIEO-1M479: Coachman/Settlers/Affinity

PR Instl Docs FL5684 R12 II DISCONTINUED

Double-skin Insulated (exterior skin 27 ga. min.; interior skin 27 ga. min.) Double Car (92 to 162 wide) WINDCODE® W8 Garage Door

16 W8-16 DSIE-1F171: 4400, 4401, HDG, HDGL, 4300, 4310, 4301, 66, 66G, 67, 67G, 68, 68G, 6200, 6201, 6203, SP200, SF200, SE200

PR Instl Docs FL5684 R12 II DISCONTINUED

Steel Pan (min. 24 ga.) Double Car (92 to 162 wide) WINDCODE® W8 Garage Door

17 W8-16: PAN-2F143: 84A, 94, 98, 48, 48B, 4F, 4RST

PR Instl Docs FL5684 R12 II DISCONTINUED

Double-skin Insulated (exterior skin 27 ga. min.; interior skin 27 ga. min.) Double Car (164 to 182 wide) WINDCODE® W8 Garage Door

18 W8-18 DSIE-1F171: 4400, 4401, HDG, HDGL, HDGF, 4300, 4310, 4301, 66, 66G, 67, 67G, 68, 68G, 6200, 6201, 6203, SP200, SF200, SE200

PR Instl Docs FL5684 R12 II DISCONTINUED

Steel Pan (min. 24 ga.) Single-Car (up to 90 wide) WINDCODE® W9 Garage Door

19 W9-09 PAN-2F143: 93, 84A, 94, 98, 4F, 4RST, 48, 48B

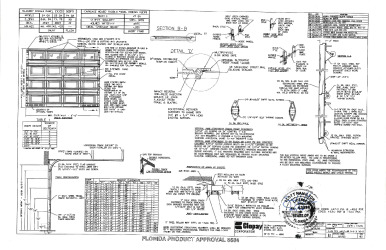

PR Instl Docs FL5684 R12 II 101702-Rev13

Steel Pan (min. 25 ga.) Single-Car (up to 90 wide) WINDCODE® W7 Garage Door

02 W7-09 PAN-2F153: 73, 75, 84A, 94, 98, 42, 42B, 48, 48B, 4F, 4RST, 6RST

PR Instl Docs FL5684 R12 II 104121-Rev06

Gallery/Artistry/Expressions: Steel Pan (min. 24 ga.) Double-Car (up to 90 wide) WINDCODE® W8 Garage Door

20 W8-09 PAN-2F443: G4S, GS4, GD4S, GR4S, E4S, ED4S, SS4, AR4S

PR Instl Docs FL5684 R12 II 104185-Rev03

Double-skin Insulated PUR (exterior skin 27 ga. min.; interior skin 27 ga. min.) Single-Car (up to 9'0" wide) WINDCODE® W8 Garage Door

21 W8-09 DSIU-1F171: 9200, 9201, 9203, HDP20, HDPF20, HDPL20, 7200, 7201, 7203, 8200, 8201, 8203

PR Instl Docs FL5684 R12 II DISCONTINUED

Double-skin Insulated PUR (exterior skin 27 ga. min.; interior skin 27 ga. min.) Double-Car (9'2" to 16'2" wide) WINDCODE® W8 Garage Door with Optional Impact-Resistant Lites

22 W8-16 DSIU-1F171: 9200, 9201, 9203, HDP20, HDPF20, HDPL20, 7200, 7201, 7203, 8200, 8201, 8203

PR Instl Docs FL5684 R12 II DISCONTINUED

Double-skin Insulated PUR (exterior skin 27 ga. min.; interior skin 27 ga. min.) 16'4" to 18'2" wide WINDCODE® W8 Garage Door

23 W8-18 DSIU-1F171: 9200, 9201, 9203, HDP20, HDPF20, HDPL20, 7200, 7201, 7203, 8200, 8201, 8203

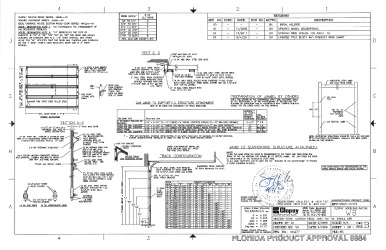

PR Instl Docs FL5684 R12 II 104277-Rev03

Double Skin Insulated PUR (exterior skin 27 ga. min.; interior skin 27ga. min.) with Overlay Single-Car (up to 90 wide) WINDCODE® W8 Garage Door

24 W8-09 DSIUO-1K479: Canyon Ridge/Glenmoor

PR Instl Docs FL5684 R12 II DISCONTINUED

Double Skin Insulated PUR (exterior skin 27 ga. min.; interior skin 27ga. min.) with Overlay Double-Car (92 to 162 wide) WINDCODE® W8 Garage Door

25 W8-16 DSIUO-1K479: Canyon Ridge/Glenmoor

PR Instl Docs FL5684 R12 II DISCONTINUED

Double-skin Insulated PUR (exterior skin 27 ga. min.; interior skin 27 ga. min.) WINDCODE® W8 Sectional Door, up to 122 wide, with optional Impact Resistant Glazing

26 W8-12 C-DSIU-1D477: 3717, C7X17, 3718, C7X18, 3720, C7X20, 240U, 3722, C0X22

PR Instl Docs FL5684 R12 II DISCONTINUED

Double-skin Insulated PUR (exterior skin 27 ga. min.; interior skin 27 ga. min.) WINDCODE® W8 Sectional Door, up to 162 wide, with optional Impact Resistant Glazing

27 W8-16 C-DSIU-1F477: 3720, C7X20, 240U, 3722, C0X22

PR Instl Docs FL5684 R12 II 104857-Rev00 s

Steel Pan (min. 25 ga.) Double Car (92 to 162 wide) WINDCODE® W7 Garage Door

28 W7-16 PAN-2F153: 73, 75, 84A, 94, 98, 42, 42B, 48, 48B, 4F, 4RST, 6RST

PR Instl Docs FL5684 R12 II DISCONTINUED

Steel Pan (min. 25 ga.) Double Car (92 to 162 wide) WINDCODE® W7 Garage Door

03 W7-16 PAN-2F153: 73, 75, 84A, 94, 98, 42, 42B, 48, 48B, 4F, 4RST, 6RST

PR Instl Docs FL5684 R12 II DISCONTINUED

Steel Pan (min. 24 ga.) 164 to 182 wide WINDCODE® W7 Garage Door

04 W7-18 PAN-2F143: 84A, 94, 98, 48, 48B, 4F, 4RST

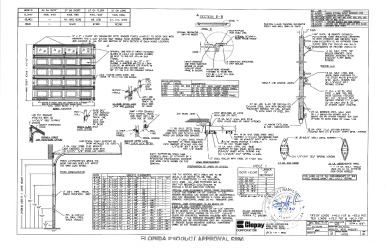

PR Instl Docs FL5684 R12 II 101703-Rev13

Double-skin Insulated (exterior skin 27 ga. min.; interior skin 27 ga. min.) Single-Car (up to 90 wide) WINDCODE® W8 Garage Door

05 W8-09 DSIE-1F171: 4400, 4401, HDG, HDGL, HDGF, 4300, 4310, 4301, 66, 66G, 67, 67G, 68, 68G, 6200, 6201, 6203, SP200, SF200, SE200

PR Instl Docs FL5684 R12 II 101296-Rev15

Steel Pan (min. 25 ga.) Single-Car (up to 90 wide) WINDCODE® W8 Garage Door

06 W8-09 PAN-2F153: 73, 75, 42, 42B, 6RST

PR Instl Docs FL5684 R12 II 103287-Rev05

Steel Pan (min. 24 ga.) Single-Car (up to 90 wide) WINDCODE® W8 Garage Door with no glazing

07 W8-09 PAN-2F143: 84A, 94, 98, 48, 48B, 4F, 4RST (solid doors)

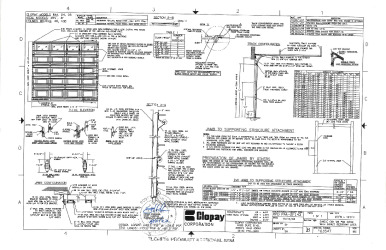

PR Instl Docs FL5684 R12 II 103547-Rev06

Steel Pan (min. 24 ga.) Single-Car (up to 90 wide) WINDCODE® W8 Garage Door with Impact Resistant Glazing

08 W8-09 PAN-2F143: 84A, 94, 98, 48, 48B 4F, 4RST (impact-resistant glazing)

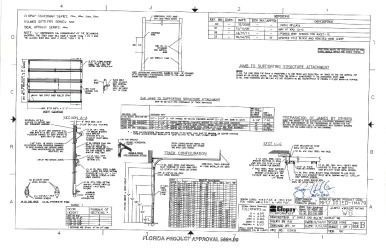

PR Instl Docs FL5684 R12 II 103436-Rev03

Double-skin Insulated (exterior skin 27 ga. min.; interior skin 27 ga. min.) with Overlay Single-Car (up to 90 wide) WINDCODE® W8 Garage Door

09 W8-09 DSIEO-1M479: Coachman/Settlers/Affinity
