FL10408.4-R6

Report Status

Approved

Code Version

2017 Florida Building Code

Application Type

Revision

Jump To

Jump To Listing Details Specifications Contact Information Documents Changes

Save to Favorites

< Previous Listing | Next Listing >

Folio:

FL10408

Model:

kk; 53xx, 54xx, 55xx, 56xx, 57xx, 58xx

Manufacturer:

C.H.I. Overhead Doors

Database:

Florida Product Approval

Source Link:

Visit Source Website

Description:

Up to 09'-00" wide by 20' high steel clad sandwich or laminated sectional door with polystyrene or urethane insulation and with various overlay materials applied to exterior.

Listing Details

Category:

Doors

Subcategory:

Sectional Exterior Door Assemblies

Evaluator:

John E. Scates - PE-51737

Validator:

Gordon Thomas, P.E.

Official Site Status:

Approved

Compliance Method:

Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer

Approval Method:

Method 1 Option D

Entity:

Specifications

Submission Date:

October 4, 2017

Validation Date:

October 19, 2017

Expiration Date:

12/31/2021

HVHZ Approved:

Impact Resistant:

Yes [FL]

Design Pressures:

-56.7psf / +49.9psf

Possible CSI Codes:

CSI Code: 08 36 13 - Sectional Doors

CSI Code: 08 16 00 - Composite Doors

CSI Code: 08 14 23 - Clad Wood Doors

CSI Code: 08 13 16.13 - Aluminum Terrace Doors

CSI Code: 08 13 16 - Aluminum Doors

Other:

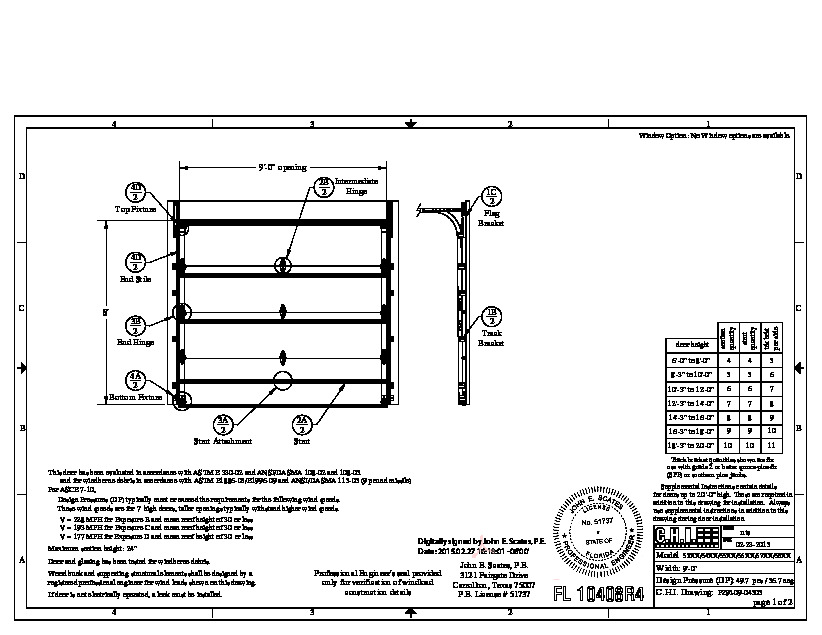

Sectional doors provided for potential "codeplus" applications. Large Missile impact (9 pound missile) and cycling tests were conducted in accordance with ANSI/DASMA 115, ASTM E1886 and ASTM E1996. Static tests were conducted in accordance with ASTM E330 and ANSI/DASMA 108. See drawing FZ9i-09-04505 for widths up to 09'-00" wide @ +49.9 / - 56.7 psf.

Notes:

Date Submitted: October 4, 2017

Date Validated: October 19, 2017

Entity:

Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer

Other: Sectional doors provided for potential "codeplus" applications. Large Missile impact (9 pound missile) and cycling tests were conducted in accordance with ANSI/DASMA 115, ASTM E1886 and ASTM E1996. Static tests were conducted in accordance with ASTM E330 and ANSI/DASMA 108. See drawing FZ9i-09-04505 for widths up to 09'-00" wide @ +49.9 / - 56.7 psf.

Official Site Status: Approved

Subcategory: Sectional Exterior Door Assemblies

Contact Information

Representative:

Pat Hunter

Address:

1485 Sunrise Drive,
Arthur, Illinois 61911 USA

Phone:

(217) 543-2135

Website:

https://www.chiohd.com/

Search the National Fenestration Rating Council
(NFRC) for Energy Efficiency information
