FL13560.4-R11
Report Status
Approved
Code Version
2023 Florida Building Code
Application Type
Revision
Folio:
Model:
[VCE or VCM or VCS] + 2006/2016 (HVHZ)
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
Aluminum-clad Rigid PVC, Curb Mount Venting Skylight, size 2246 and smaller (426-H-695.35/.39/.44/.45)
Listing Details
Specifications
Submission Date:
July 25, 2025
Validation Date:
July 28, 2025
Design Pressures:
-80psf / +80psf
Possible CSI Codes:
CSI Code: 08 64 00 - Plastic-Framed Skylights
CSI Code: 08 63 13 - Domed Metal-Framed Skylights
CSI Code: 08 63 00 - Metal-Framed Skylights
CSI Code: 08 63 23 - Ridge Metal-Framed Skylights
CSI Code: 08 62 13 - Domed Unit Skylights
Other:
Wind Zone 4, Missile D, Cycle Pressure +70/-70, max. size 692mm x 1302mm. Tested pursuant to ASTM E 1886 and ASTM E 1996. Glass meets ASTM E1300: 3mm clear tempered / 7.5mm st. stl. spacer / 7mm laminate using 2.3mm heat-strengthened panes and three 0.030" PVB interlayers. Anchoring to site-built curb: three screws per side for longest members and two per side for shorter members, filling all pre-punched holes with supplied screws.
Notes:
Date Submitted: July 25, 2025
Date Validated: July 28, 2025
Entity: Window and Door Manufacturer Association
Compliance Method: Certification Mark or Listing
Other: Wind Zone 4, Missile D, Cycle Pressure +70/-70, max. size 692mm x 1302mm. Tested pursuant to ASTM E 1886 and ASTM E 1996. Glass meets ASTM E1300: 3mm clear tempered / 7.5mm st. stl. spacer / 7mm laminate using 2.3mm heat-strengthened panes and three 0.030" PVB interlayers. Anchoring to site-built curb: three screws per side for longest members and two per side for shorter members, filling all pre-punched holes with supplied screws.
Official Site Status: Approved
Subcategory: Skylight
Contact Information
Representative:
Mike Rhoden
Address:
P.O. Box 5001,
Greenwood, South Caroli 29648 USA
Greenwood, South Caroli 29648 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 09/08/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

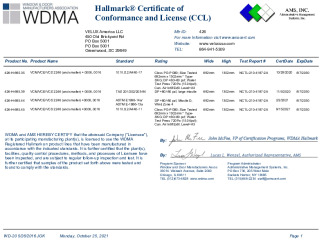

PR CERTIFICATE FL13560 R11 C CAC FL13560 VCE-VCM-VCS 2246 OR SMALLER - 06 OR 16
PR INSTL DOCS FL13560 R11 II FL13560 VCM VCE INSTALLATION INSTRUCTIONS W UNDERLAYMENT
PR INSTL DOCS FL13560 R11 II FL13560 VCS INSTALLATION INSTRUCTIONS
