FL14293.4-R9
Report Status
Approved
Code Version
2020 Florida Building Code
Application Type
Revision
Folio:
Model:
Architect Series Model 5 Clad Inswing Door Impact
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
French Hinged Door 75" x 95.5"
Listing Details
Specifications
Submission Date:
July 29, 2020
Validation Date:
August 6, 2020
Design Pressures:
-70psf / +55psf
Possible CSI Codes:
CSI Code: 08 17 00 - Integrated Door Opening Assemblies
CSI Code: 08 11 13.13 - Standard Hollow Metal Doors and Frames
CSI Code: 08 13 13.13 - Standard Hollow Metal Doors
CSI Code: 08 30 00 - Specialty Doors and Frames
CSI Code: 08 17 43 - Integrated Composite Door Opening Assemblies
Other:
1) These doors are impact rated to Wind Zone 3 Missile Level D.2) Glass & glazing shall be as specified in the attached glazing detail "A" or B or "C".3) Lock shall be Amesbury 3 point or 5 point lock system on active panels and Amesbury 2 point lock system on passive panels. 4) Intermediate rail and partial flat panel applies for use with this door.5) Flat panel not to exceed midspan of panel height.6) Glass in accordance with the current ASTM E1300 Standard
Notes:
Date Submitted: July 29, 2020
Date Validated: August 6, 2020
Entity: Window and Door Manufacturer Association
Compliance Method: Certification Mark or Listing
Other: 1) These doors are impact rated to Wind Zone 3 Missile Level D.2) Glass & glazing shall be as specified in the attached glazing detail "A" or B or "C".3) Lock shall be Amesbury 3 point or 5 point lock system on active panels and Amesbury 2 point lock system on passive panels. 4) Intermediate rail and partial flat panel applies for use with this door.5) Flat panel not to exceed midspan of panel height.6) Glass in accordance with the current ASTM E1300 Standard
Official Site Status: Approved
Subcategory: Swinging Exterior Door Assemblies
Contact Information
Representative:
Joe Hayden Sandi Robinson
Address:
102 Main St.,
Pella, Iowa 50219 USA
Pella, Iowa 50219 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 07/11/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents
PR INSTL DOCS FL14293 R9 II DRAWING 1725
PR INSTL DOCS FL14293 R9 II GLAZING DETAIL A
PR INSTL DOCS FL14293 R9 II GLAZING DETAIL B
PR INSTL DOCS FL14293 R9 II GLAZING DETAIL C
PR TECH DOCS FL14293 R9 AE DRAWING 1725

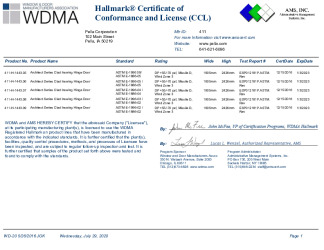

PR CERTIFICATE FL14293 R9 C CAC 14293.4 AFFA IMPACT

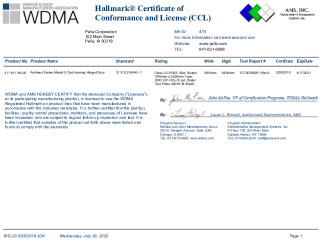

PR CERTIFICATE FL14293 R9 C CAC 14293.4 CCL
PR CERTIFICATE FL14293 R9 C CAC 14293.4 IMPACT
