FL14396.1-R6

Report Status
Approved
Code Version
2023 Florida Building Code
Application Type
Revision
Folio:
Model:

1. Insulated Door

Database:
Florida Product Approval
Source Link:
Description:

CP0001/CP0651 Slat

Listing Details
Category:
Doors
Subcategory:
Roll-Up Exterior Door Assemblies
Evaluator:
Shawn P. Kelley - PE-FL58299
Validator:
Gary Pfuehler
Official Site Status:
Approved
Compliance Method:
Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Approval Method:
Method 1 Option D
Entity:

Specifications
Submission Date:
August 7, 2023
Validation Date:
September 5, 2023
HVHZ Approved:
No
Impact Resistant:
Yes [FL]
Design Pressures:
-120psf / +120psf
Possible CSI Codes:
CSI Code: 08 17 00 - Integrated Door Opening Assemblies
CSI Code: 08 01 17 - Operation and Maintenance of Integrated Door Opening Assemblies
CSI Code: 08 17 33 - Integrated Plastic Door Opening Assemblies
CSI Code: 08 17 13 - Integrated Metal Door Opening Assemblies
CSI Code: 08 17 43 - Integrated Composite Door Opening Assemblies
Other:
Refer to DWG ES 16-63-CLO for maximum design pressure for each door width. The maximum height for all doors is 30 ft. Maximum design pressure is 120 psf. Impact resistant for 50 FPS missile impact speed. Mounting to steel jamb, concrete jamb, or filled CMU jamb. Slat material is available in galvanized or stainless steel.
Notes:


Date Submitted: August 7, 2023

Date Validated: September 5, 2023

Entity:

Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer

Other: Refer to DWG ES 16-63-CLO for maximum design pressure for each door width. The maximum height for all doors is 30 ft. Maximum design pressure is 120 psf. Impact resistant for 50 FPS missile impact speed. Mounting to steel jamb, concrete jamb, or filled CMU jamb. Slat material is available in galvanized or stainless steel.

Official Site Status: Approved

Subcategory: Roll-Up Exterior Door Assemblies
Manufacturer Info
Clopay Building Products Company is a leading manufacturer and distributor of residential and commercial garage doors, rolling steel doors, fire-rated doors, and access control systems. Headquartered in Mason, Ohio, United States, with manufacturing facilities across North America, Clopay offers a wide range of products designed to meet various needs, from residential and commercial applications to industrial and institutional settings. View all listings
* This manufacturer has not claimed their profile. Any logo or description displayed above has been generated by AI.
Contact Information
Representative:
Mark Westerfield
Address:
8585 Duke Blvd.,
Mason, Ohio 45040 USA
Search the National Fenestration Rating Council
(NFRC) for Energy Efficiency information
Listing Changes
Last Synced: 06/18/2024
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents
PR INSTL DOCS FL14396 R6 II 10-476 INSTALLATION INSTRUCTIONS 2020
PR INSTL DOCS FL14396 R6 II 10-476 INSTALLATION INSTRUCTIONS 2020

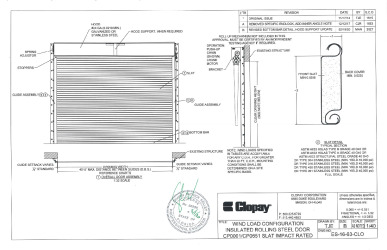

PR INSTL DOCS FL14396 R6 II ES-16-63-CLO; SS RFS
PR INSTL DOCS FL14396 R6 II ES-16-63-CLO; SS RFS
PR TECH DOCS FL14396 R6 AE FBC 2020 CODE COMPLIANCE (CLO  60-65)
PR TECH DOCS FL14396 R6 AE FBC 2020 CODE COMPLIANCE (CLO 60-65)
