FL15012.32-R4

Report Status

Approved

Code Version

2017 Florida Building Code

Application Type

Revision

Jump To

Jump To Listing Details Specifications Contact Information Documents Changes

Save to Favorites

< Previous Listing | Next Listing >

Folio:

FL15012

Model:

tl; 2240, 2241, 2250, 2251, 4240, 4241, 4250, 4251, 5240, 5241, 5250, 5251

Manufacturer:

C.H.I. Overhead Doors

Database:

Florida Product Approval

Source Link:

Visit Source Website

Description:

09'-10" wide through 24'-00" wide by 20' high steel sectional door with or without polystyrene insulation.

Listing Details

Category:

Doors

Subcategory:

Sectional Exterior Door Assemblies

Evaluator:

John E. Scates - PE-51737

Validator:

Gordon Thomas, P.E.

Official Site Status:

Approved

Compliance Method:

Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer

Approval Method:

Method 1 Option D

Entity:

Specifications

Submission Date:

October 4, 2017

Validation Date:

October 19, 2017

Expiration Date:

12/31/2021

HVHZ Approved:

Impact Resistant:

No [FL]

Possible CSI Codes:

CSI Code: 08 36 13 - Sectional Doors

CSI Code: 08 16 00 - Composite Doors

CSI Code: 08 36 00 - Panel Doors

CSI Code: 08 14 33.13 - Wood Terrace Doors

CSI Code: 08 13 16.13 - Aluminum Terrace Doors

Other:

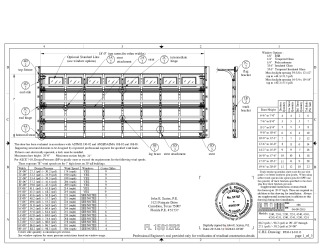

Sectional doors provided for windload applications. Tested in accordance with ASTM E330 and ANSI/DASMA 108. See drawing FZ10-18-01315 for pressures and widths +88.2(psf)/-98.3 (psf) at 09'-10" through +27.1(psf)/-30.2(psf) at 24'-00"

Notes:

Date Submitted: October 4, 2017

Date Validated: October 19, 2017

Entity:

Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer

Other: Sectional doors provided for windload applications. Tested in accordance with ASTM E330 and ANSI/DASMA 108. See drawing FZ10-18-01315 for pressures and widths +88.2(psf)/-98.3 (psf) at 09'-10" through +27.1(psf)/-30.2(psf) at 24'-00"

Official Site Status: Approved

Subcategory: Sectional Exterior Door Assemblies

Contact Information

Representative:

Pat Hunter

Address:

1485 Sunrise Drive,
Arthur, Illinois 61911 USA

Phone:

(217) 543-2135

Website:

https://www.chiohd.com/

Search the National Fenestration Rating Council
(NFRC) for Energy Efficiency information
