FL15043.10-R4
Report Status
Approved
Code Version
2017 Florida Building Code
Application Type
Revision
Folio:
Model:
vi; 3212, 3216, 3285
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
20'-02" through 14'-06" wide by 24' high sectional door with steel sections with polystyrene or thermally broken polyurethane insulation.
Listing Details
Category:
Doors
Subcategory:
Sectional Exterior Door Assemblies
Evaluator:
John E. Scates - PE-51737
Validator:
Gordon Thomas, P.E.
Official Site Status:
Approved
Compliance Method:
Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Entity:
Specifications
Submission Date:
October 4, 2017
Validation Date:
October 19, 2017
Design Pressures:
-35.7psf / +31.6psf
Possible CSI Codes:
CSI Code: 08 36 13 - Sectional Doors
CSI Code: 08 16 00 - Composite Doors
CSI Code: 08 36 00 - Panel Doors
CSI Code: 08 14 00 - Wood Doors
CSI Code: 08 34 19 - Industrial Doors
Other:

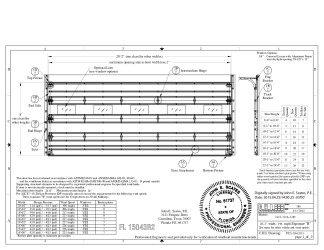

Sectional doors provided for potential "code-plus" applications. Large Missile impact (9 pound missile) and cycling tests conducted in accordance with ANSI/DASMA 115, ASTM E1886 and ASTM E1996. Static tests conducted in accordance with ASTM E330 and ANSI/DASMA 108. See drawing FZ7i-20-63515 for pressures and widths +31.6/-35.7(psf) at 20'-02" through +43.0/-48.3(psf) at 14'-06".
Notes:
Date Submitted: October 4, 2017
Date Validated: October 19, 2017
Entity:
Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Other: Sectional doors provided for potential "code-plus" applications. Large Missile impact (9 pound missile) and cycling tests conducted in accordance with ANSI/DASMA 115, ASTM E1886 and ASTM E1996. Static tests conducted in accordance with ASTM E330 and ANSI/DASMA 108. See drawing FZ7i-20-63515 for pressures and widths +31.6/-35.7(psf) at 20'-02" through +43.0/-48.3(psf) at 14'-06".
Official Site Status: Approved
Subcategory: Sectional Exterior Door Assemblies
Contact Information
Representative:
Pat Hunter
Address:
1485 Sunrise Drive,
Arthur, Illinois 61911 USA
Arthur, Illinois 61911 USA
Phone:
Website:
