FL15043.4-R4
Report Status
Approved
Code Version
2017 Florida Building Code
Application Type
Revision
Folio:
Model:
lk; 3212, 3216, 3285
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
Up to 10'-02" wide by 24' high sectional door with steel sections with polystyrene or thermally broken polyurethane insulation and with or without aluminum framed full view sections.
Listing Details
Category:
Doors
Subcategory:
Sectional Exterior Door Assemblies
Evaluator:
John E. Scates - PE-51737
Validator:
Gordon Thomas, P.E.
Official Site Status:
Approved
Compliance Method:
Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Entity:
Specifications
Submission Date:
October 4, 2017
Validation Date:
October 19, 2017
Design Pressures:
-56.7psf / +49.9psf
Possible CSI Codes:
CSI Code: 08 36 13 - Sectional Doors
CSI Code: 08 13 16.13 - Aluminum Terrace Doors
CSI Code: 08 11 16 - Aluminum Doors and Frames
CSI Code: 08 13 16 - Aluminum Doors
CSI Code: 08 36 00 - Panel Doors
Other:
Sectional doors provided for potential "code-plus" applications. Large Missile impact (9 pound missile) and cycling tests conducted in accordance with ANSI/DASMA 115, ASTM E1886 and ASTM E1996. Static tests conducted in accordance with ASTM E330 and ANSI/DASMA 108. See drawing FZ9i-10-63515 for pressures +49.9/-56.7(psf) for widths up to 10'-02".
Notes:
Date Submitted: October 4, 2017
Date Validated: October 19, 2017
Entity:
Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Other: Sectional doors provided for potential "code-plus" applications. Large Missile impact (9 pound missile) and cycling tests conducted in accordance with ANSI/DASMA 115, ASTM E1886 and ASTM E1996. Static tests conducted in accordance with ASTM E330 and ANSI/DASMA 108. See drawing FZ9i-10-63515 for pressures +49.9/-56.7(psf) for widths up to 10'-02".
Official Site Status: Approved
Subcategory: Sectional Exterior Door Assemblies
Contact Information
Representative:
Pat Hunter
Address:
1485 Sunrise Drive,
Arthur, Illinois 61911 USA
Arthur, Illinois 61911 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 08/21/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents
PR INSTL DOCS FL15043 R4 II JAMB ATTACHMENT DRAWINGS S
PR INSTL DOCS FL15043 R4 II SUPPLEMENTAL INS COMML SAND S
PR TECH DOCS FL15043 R4 AE FL15043 EVAL REPT R4 S

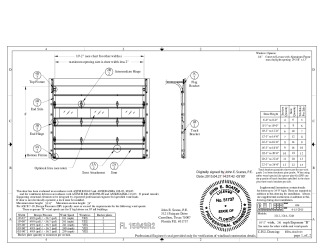

PR TECH DOCS FL15043 R4 AE FZ9I-10-63515 S
