FL16991.14-R5
Report Status
Approved
Code Version
2020 Florida Building Code
Application Type
Revision
Folio:
Model:
FL-16991.14; 6181, 6201, 6202, 6221, 6222, 6242, 6266
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
30'-4" maximum wide by 30' maximum high roll up door with steel slats.
Listing Details
Category:
Doors
Subcategory:
Roll-Up Exterior Door Assemblies
Evaluator:
John E. Scates - PE-51737
Validator:
Kurt Dietrich PE
Official Site Status:
Approved
Compliance Method:
Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Entity:
Specifications
Submission Date:
October 13, 2020
Validation Date:
October 14, 2020
Design Pressures:
-77.7psf / +77.7psf
Possible CSI Codes:
CSI Code: 08 11 13.13 - Standard Hollow Metal Doors and Frames
CSI Code: 08 10 00 - Doors and Frames
CSI Code: 08 13 13.13 - Standard Hollow Metal Doors
CSI Code: 08 11 16 - Aluminum Doors and Frames
CSI Code: 08 30 00 - Specialty Doors and Frames
Other:
Roll up doors provided for windload applications. Tested in accordance with ASTM E330 and ANSI/DASMA 108. See drawing FZ12w-26-R1006 for widths and pressures +/-77.7 (psf) at 20'-4" through +/-48.4 (psf) at 30'-4".
Notes:
Date Submitted: October 13, 2020
Date Validated: October 14, 2020
Entity:
Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Other: Roll up doors provided for windload applications. Tested in accordance with ASTM E330 and ANSI/DASMA 108. See drawing FZ12w-26-R1006 for widths and pressures +/-77.7 (psf) at 20'-4" through +/-48.4 (psf) at 30'-4".
Official Site Status: Approved
Subcategory: Roll-Up Exterior Door Assemblies
Contact Information
Representative:
Pat Hunter
Address:
1485 Sunrise Drive,
Arthur, Illinois 61911 USA
Arthur, Illinois 61911 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 09/07/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

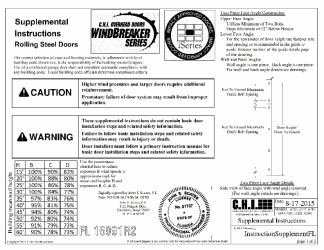

PR INSTL DOCS FL16991 R5 II SUPPLEMENTAL INSTRUCTIONS S
PR TECH DOCS FL16991 R5 AE FL16991 EVAL REPT S
PR INSTL DOCS FL16991 R5 II FZ12W-26-R1006 S
QR Code To This Listing
