FL17754.3-R2
Report Status
Approved
Code Version
2023 Florida Building Code
Application Type
Revision
Folio:
Model:
18 Ft. Wide Glazed & Non-Glazed Wood Garage Door
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
18 ft. Wide Glazed and Non-Glazed Garage Door (Large Missile Impact)
Listing Details
Category:
Doors
Subcategory:
Sectional Exterior Door Assemblies
Evaluator:
Warren W. Schaefer - PE-44135
Validator:
T.E. Lunn, PE, LLC
Official Site Status:
Approved
Compliance Method:
Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Entity:
Specifications
Submission Date:
October 19, 2023
Validation Date:
October 21, 2023
Design Pressures:
-65psf / +48psf
Possible CSI Codes:
CSI Code: 08 16 00 - Composite Doors
CSI Code: 08 16 73 - Sliding Composite Doors
CSI Code: 08 14 33.13 - Wood Terrace Doors
CSI Code: 08 13 16.13 - Aluminum Terrace Doors
CSI Code: 08 13 73 - Sliding Metal Doors
Other:
Door size, assembly and installation requirements are to be as specified in the attached drawing No. 1618. Job required design wind pressure shall be calculated in accordance with the Florida Building Code Chapter 16 and ASCE 7 Minimum Design Loads for Buildings and Other Structures. This door system is rated as a wind zone 4 missile level "D" product. All glass meets the requirements of the current ASTM E 1300 standard.
Notes:
Date Submitted: October 19, 2023
Date Validated: October 21, 2023
Entity:
Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Other: Door size, assembly and installation requirements are to be as specified in the attached drawing No. 1618. Job required design wind pressure shall be calculated in accordance with the Florida Building Code Chapter 16 and ASCE 7 Minimum Design Loads for Buildings and Other Structures. This door system is rated as a wind zone 4 missile level "D" product. All glass meets the requirements of the current ASTM E 1300 standard.
Official Site Status: Approved
Subcategory: Sectional Exterior Door Assemblies
Contact Information
Representative:
N/A
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 10/29/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

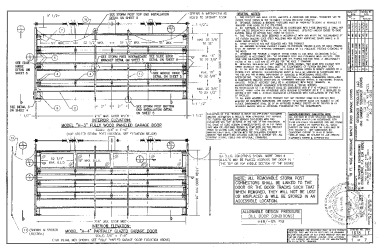

PR INSTL DOCS FL17754 R2 II DRAWING 1618
PR TECH DOCS FL17754 R2 AE EVALUATION REPORT WWS-400
