FL17769.1-R3
Report Status
Approved
Code Version
2023 Florida Building Code
Application Type
Affirmation
Folio:
Model:
Pella/Architect Series Model 6 Clad Double Hung
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
(54in. x 96in.) Pella/Architect Series Double Hung / Single Hung / Simulated Hung - Impact
Listing Details
Specifications
Submission Date:
July 20, 2023
Validation Date:
July 20, 2023
Design Pressures:
-50psf / +50psf
Possible CSI Codes:
CSI Code: 08 62 16 - Pyramidal Unit Skylights
CSI Code: 08 63 16 - Pyramidal Metal-Framed Skylights
CSI Code: 08 63 13 - Domed Metal-Framed Skylights
CSI Code: 08 63 19 - Vaulted Metal-Framed Skylights
CSI Code: 08 63 00 - Metal-Framed Skylights
Other:
Glass and glazing shall be as specified in the attached glazing detail. These windows are impact rated to Wind Zone 3 Missile Level D. When windows are to be installed in a small missile impact zone of a building, the exterior single pane of the IG glass shall be tempered.
Notes:
Date Submitted: July 20, 2023
Date Validated: July 20, 2023
Entity: Window and Door Manufacturer Association
Compliance Method: Certification Mark or Listing
Other: Glass and glazing shall be as specified in the attached glazing detail. These windows are impact rated to Wind Zone 3 Missile Level D. When windows are to be installed in a small missile impact zone of a building, the exterior single pane of the IG glass shall be tempered.
Official Site Status: Approved
Subcategory: Double Hung
Contact Information
Representative:
Joe Hayden Sandi Robinson
Address:
102 Main St.,
Pella, Iowa 50219 USA
Pella, Iowa 50219 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 07/22/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

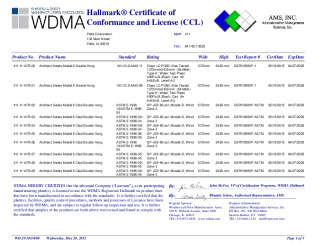

PR CERTIFICATE FL17769 R3 C CAC CCL FOR 411 5-20-15
PR INSTL DOCS FL17769 R3 II DRAWING 1900
PR INSTL DOCS FL17769 R3 II MODEL 6 DH IMPACT GLAZING DETAIL

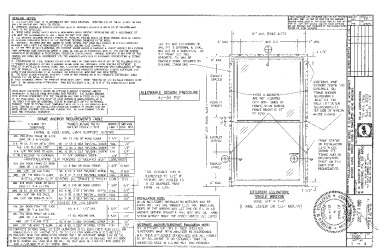

PR TECH DOCS FL17769 R3 AE DRAWING 1900
