FL23184.1-R2

Report Status
Approved
Code Version
2023 Florida Building Code
Application Type
Revision
Folio:
Model:

Pilkington Profilit K25-60-7

Database:
Florida Product Approval
Source Link:
Description:

Wall System made of Glass Profiles Interlocked together thru silicone joints and retained by tracks to provide hurricane protection within non-wind born debris regions.

Listing Details
Category:
Storefront Curtainwall & Cladding
Subcategory:
Products Introduced as a Result of New Technology
Evaluator:
Walter A. Tillit Jr., P.E. - PE-44167
Validator:
John W. Knezevich, PE
Official Site Status:
Approved
Compliance Method:
Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Approval Method:
Method 1 Option D
Entity:

Specifications
Submission Date:
August 1, 2023
Validation Date:
August 18, 2023
HVHZ Approved:
No
Impact Resistant:
No [FL]
Design Pressures:
-70psf / +70psf
Possible CSI Codes:
CSI Code: 08 44 26 - Structural Glass Curtain Walls
CSI Code: 08 01 44 - Operation and Maintenance of Curtain Walls
CSI Code: 08 44 26.13 - Glass Framed Point Supported Glass Curtain Walls
CSI Code: 08 44 26.16 - Metal Framed Point Supported Glass Curtain Walls
CSI Code: 08 44 26.23 - Cable Framed Point Supported Glass Curtain Walls
Other:
ASD Pressure rating: +66 psf, -66 psf at double span (10' +7') with tempered glass, +40 psf, -40 psf or +70 psf, -70 psf at 9'-8" span with annealed and tempered glass respectively, on trapped mounts. See Section 7 of the Product Evaluation Report for Limitations and Conditions of Use.
Notes:


Date Submitted: August 1, 2023

Date Validated: August 18, 2023

Entity:

Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer

Other: ASD Pressure rating: +66 psf, -66 psf at double span (10' +7') with tempered glass, +40 psf, -40 psf or +70 psf, -70 psf at 9'-8" span with annealed and tempered glass respectively, on trapped mounts. See Section 7 of the Product Evaluation Report for Limitations and Conditions of Use.

Official Site Status: Approved

Subcategory: Products Introduced as a Result of New Technology
Manufacturer Info
Technical Glass Products, Inc. is a premier manufacturer of custom-engineered glass solutions for various industries. With over 35 years of experience, they specialize in providing intricate glass fabrication and processing services, delivering high-quality products like glass-to-metal seals, precision glass components, and hermetic glass assemblies. They cater to a diverse range of industries, including aerospace, medical, electronics, and scientific instrumentation, offering tailored solutions that meet specific application requirements. View all listings
* This manufacturer has not claimed their profile. Any logo or description displayed above has been generated by AI.
Contact Information
Representative:
Ronald Madeley
Address:
8107 Bracken Place SE,
Snoqualmie, Washington 98065 U.S.A.
Search the National Fenestration Rating Council
(NFRC) for Energy Efficiency information
Listing Changes
Last Synced: 06/23/2024
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents
PR INSTL DOCS FL23184 R2 II PED DRWG 23-091 TECH GLASS PROD
PR INSTL DOCS FL23184 R2 II PED DRWG 23-091 TECH GLASS PROD

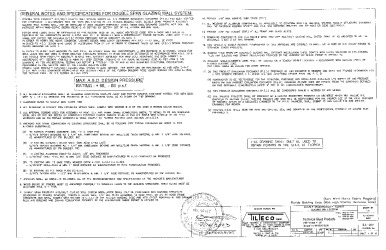

PR INSTL DOCS FL23184 R2 II PED DRWG 23-091 TECH GLASS PROD.1
PR INSTL DOCS FL23184 R2 II PED DRWG 23-091 TECH GLASS PROD.1
PR TECH DOCS FL23184 R2 AE PER DRWG 23-091 TECH GLASS PROD
PR TECH DOCS FL23184 R2 AE PER DRWG 23-091 TECH GLASS PROD
