FL2686.3-R5

Report Status
Approved
Code Version
2017 Florida Building Code
Application Type
Revision
Folio:
Model:

Reverse Classic Wall Panel

Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:

36" wide, 50 or 80 ksi, min 26 ga. screw down panel

Listing Details
Category:
Storefront Curtainwall & Cladding
Subcategory:
Siding
Evaluator:
Bala Sockalingam - PE-62240
Validator:
Yoosef Lavi, P.E.
Official Site Status:
Approved
Compliance Method:
Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Approval Method:
Method 1 Option D
Entity:

Specifications
Submission Date:
August 6, 2017
Validation Date:
August 9, 2017
Expiration Date:
12/31/2021
HVHZ Approved:
No
Impact Resistant:
[ None ]
Design Pressures:
-45psf / +45psf
Possible CSI Codes:
CSI Code: 07 46 63 - Fabricated Panel Assemblies with Siding
CSI Code: 06 12 00 - Structural Panels
CSI Code: 07 42 00 - Wall Panels
CSI Code: 07 40 00 - Roofing and Siding Panels
CSI Code: 09 78 00 - Interior Wall Paneling
Other:
Allowable positive and negative design load of 45 psf at support spacing of 60" o.c. for 80 ksi panel
Notes:


Date Submitted: August 6, 2017

Date Validated: August 9, 2017

Entity:

Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer

Other: Allowable positive and negative design load of 45 psf at support spacing of 60" o.c. for 80 ksi panel

Official Site Status: Approved

Subcategory: Siding
Manufacturer Info
Nucor Building Systems is a manufacturer of metal building systems, providing a wide range of customizable steel structures for commercial, industrial, and residential applications. With a focus on innovative design, quality construction, and sustainable solutions, the company offers a diverse portfolio of building solutions, including structural framing, roof and wall panels, metal decking, and accessories, all tailored to meet specific project requirements and customer needs. Nucor Building Systems is committed to delivering exceptional products, technical expertise, and personalized service, making it a trusted partner for architects, engineers, contractors, and building owners seeking high-performance metal building solutions. View all listings
* This manufacturer has not claimed their profile. Any logo or description displayed above has been generated by AI.
Contact Information
Representative:
Eric Babcock
Address:
200 Whetstone Road,
Swansea, South Carolina 29160 United States
Search the National Fenestration Rating Council
(NFRC) for Energy Efficiency information
Listing Changes
Last Synced: 05/18/2024
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes

Save Time & Money with Samplize Paint Sample Bundles
Easily sample the top 8 colors in a color family + Save 10%
Approval & Installation Documents

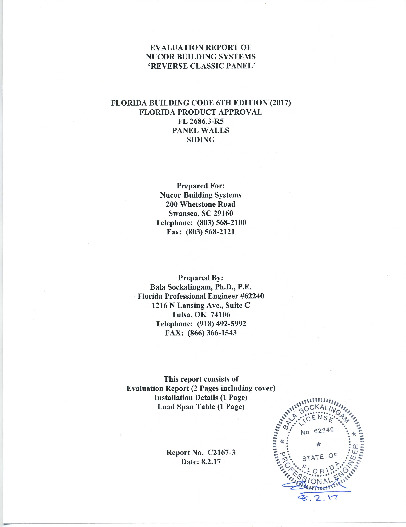

PR INSTL DOCS FL2686 R5 II EVALUATIONREPORTC2167 3
PR INSTL DOCS FL2686 R5 II EVALUATIONREPORTC2167 3
PR TECH DOCS FL2686 R5 AE EVALUATIONREPORTC2167 3
PR TECH DOCS FL2686 R5 AE EVALUATIONREPORTC2167 3
