FL28127.3-R2

Report Status
Approved
Code Version
2020 Florida Building Code
Application Type
Revision
Save to Favorites
< Previous Listing | Next Listing >
Folio:
FL28127
Model:

Premium Coastal DH Operator/Picture Combination (Monolithic)

Manufacturer:
Weather Shield Mfg., Inc.
Database:
Florida Product Approval
Source Link:
Visit Source Website
Description:

1105 Double-Hung (48"x84") Mulled to 1108 DH Picture (56"x84") Insulated Glass. Maximum Tributary Width = 52" based on mull testing & CCL 449-H-074.15 and .17.

Listing Details
Category:
Windows Mullions and Skylights
Subcategory:
Fixed
Evaluator:
  -
Validator:
Window and Door Manufacturers Association
Official Site Status:
Approved
Compliance Method:
Certification Mark or Listing
Approval Method:
Method 1 Option A
Entity:
Window and Door Manufacturer Association
Specifications
Submission Date:
January 15, 2021
Validation Date:
January 22, 2021
HVHZ Approved:
No
Impact Resistant:
Yes [FL]
Design Pressures:
-70psf / +55psf
Possible CSI Codes:
CSI Code: 04 23 19 - Glass Unit Masonry Skylights
CSI Code: 08 54 69 - Fiberglass Storm Windows
CSI Code: 08 81 23 - Exterior Glass Glazing
CSI Code: 08 54 13 - Fiberglass Windows
CSI Code: 08 54 66 - Fiberglass Window Screens
Other:
Complies with ASTM E1300. DH Operator Monolithic 5/16" Laminated lite consists of two lites of 1/8" annealed with .090" PVB interlayer). DH Picture Monolithic 15/32" laminated lite consists of two lites of 4.7mm annealed or heat strengthened with .090" SGP interlayer.
Notes:


Date Submitted: January 15, 2021

Date Validated: January 22, 2021

Entity: Window and Door Manufacturer Association

Compliance Method: Certification Mark or Listing

Other: Complies with ASTM E1300. DH Operator Monolithic 5/16" Laminated lite consists of two lites of 1/8" annealed with .090" PVB interlayer). DH Picture Monolithic 15/32" laminated lite consists of two lites of 4.7mm annealed or heat strengthened with .090" SGP interlayer.

Official Site Status: Approved

Subcategory: Fixed
Contact Information
Representative:
Valerie Bach
Address:
829 N. 8th Street,
Medford, Wisconsin 54451 US
Phone:
(715) 748-2100
Website:
https://weathershield.com/
Search the National Fenestration Rating Council
(NFRC) for Energy Efficiency information
Listing Changes
Last Synced: 07/05/2026
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents
PR INSTL DOCS FL28127 R2 II 1104-1105 DH THROUGH JAMB
PR INSTL DOCS FL28127 R2 II 1104-1105 DH THROUGH JAMB
PR CERTIFICATE FL28127 R2 C CAC 448-H-074.19-.21
PR CERTIFICATE FL28127 R2 C CAC 448-H-074.19-.21

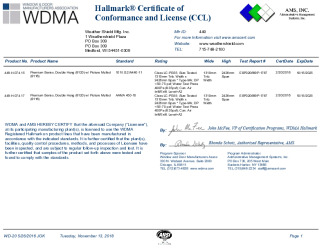

PR CERTIFICATE FL28127 R2 C CAC 449-H-074 15-17 MULLION CCL FOR DH 48X84 MULLED TO DH PICTURE 56X84
PR CERTIFICATE FL28127 R2 C CAC 449-H-074 15-17 MULLION CCL FOR DH 48X84 MULLED TO DH PICTURE 56X84

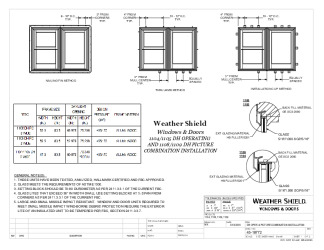

PR INSTL DOCS FL28127 R2 II 45-18772 DH OPER-PICTURE COMB
PR INSTL DOCS FL28127 R2 II 45-18772 DH OPER-PICTURE COMB
PR CERTIFICATE FL28127 R2 C CAC 449-H-037 17-19-20 DH PICTURE 1109 60X84 -- LIMITED TO 56X84 WHEN MULLED TO DH OPERATOR BASED ON CCL-H-074 15-17
PR CERTIFICATE FL28127 R2 C CAC 449-H-037 17-19-20 DH PICTURE 1109 60X84 -- LIMITED TO 56X84 WHEN MULLED TO DH OPERATOR BASED ON CCL-H-074 15-17
