FL33286.4-R3

Report Status
Approved
Code Version
2023 Florida Building Code
Application Type
Affirmation
Folio:
Model:

EF [06 or 16] E-Class (Impact)

Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:

Aluminum Frame Self-Flashed Fixed Skylight, (Impact), size 4646 and smaller (426-H-725.13/.14/.17)

Listing Details
Category:
Windows Mullions and Skylights
Subcategory:
Skylight
Evaluator:
  -
Validator:
Window and Door Manufacturers Association
Official Site Status:
Approved
Compliance Method:
Certification Mark or Listing
Approval Method:
Method 1 Option A
Entity:
Window and Door Manufacturer Association
Specifications
Submission Date:
July 13, 2023
Validation Date:
July 13, 2023
HVHZ Approved:
No
Impact Resistant:
Yes [FL]
Design Pressures:
-60psf / +160psf
Possible CSI Codes:
CSI Code: 08 63 00 - Metal-Framed Skylights
CSI Code: 08 64 00 - Plastic-Framed Skylights
CSI Code: 08 63 23 - Ridge Metal-Framed Skylights
CSI Code: 08 63 16 - Pyramidal Metal-Framed Skylights
CSI Code: 08 63 53 - Motorized Metal-Framed Skylights
Other:
Wind Zone 3, Missile Level C, Cycle Press. +/- 60, max size 1295mm x 1295mm (51" x 51"). Tested ASTM E1886/E1996. Glass meets ASTM E1300: 3.9mm clear temp Lo-E366 (Lo-E340 on 16)/10.5mm st. stl. spacer/7mm laminate using 2 2.3mm panes & 3 0.030" PVB interlayers. Anchoring to roof deck: mounting bracket spacing approx. 6" from corners (4" on 14" side) and in the middle of side when 3 are used, fill all pre-punched holes in mounting brackets with supplied screws.
Notes:


Date Submitted: July 13, 2023

Date Validated: July 13, 2023

Entity: Window and Door Manufacturer Association

Compliance Method: Certification Mark or Listing

Other: Wind Zone 3, Missile Level C, Cycle Press. +/- 60, max size 1295mm x 1295mm (51" x 51"). Tested ASTM E1886/E1996. Glass meets ASTM E1300: 3.9mm clear temp Lo-E366 (Lo-E340 on 16)/10.5mm st. stl. spacer/7mm laminate using 2 2.3mm panes & 3 0.030" PVB interlayers. Anchoring to roof deck: mounting bracket spacing approx. 6" from corners (4" on 14" side) and in the middle of side when 3 are used, fill all pre-punched holes in mounting brackets with supplied screws.

Official Site Status: Approved

Subcategory: Skylight
Manufacturer Info
VELUX
VELUX America, LLC, a leading global provider of skylights, roof windows, and modular skylights, is committed to bringing light and fresh air into homes and commercial buildings. With a focus on energy efficiency, VELUX products help reduce energy consumption and provide natural ventilation. The company's wide range of skylight and roof window options, including manual and electric models, offers flexible solutions for various architectural designs and styles. VELUX America is dedicated to providing high-quality products and exceptional customer service, making it a trusted choice for homeowners, architects, and builders across the United States. View all listings
* This manufacturer has not claimed their profile. Any logo or description displayed above has been generated by AI.
Contact Information
Representative:
Mike Rhoden
Address:
P.O. Box 5001,
Greenwood, South Caroli 29648 USA
Search the National Fenestration Rating Council
(NFRC) for Energy Efficiency information
Listing Changes
Last Synced: 06/13/2024
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

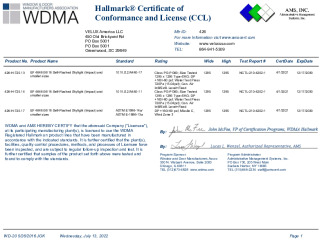

PR CERTIFICATE FL33286 R3 C CAC VELUX CCL EF 4646 06-16
PR CERTIFICATE FL33286 R3 C CAC VELUX CCL EF 4646 06-16
PR INSTL DOCS FL33286 R3 II ECLASS-ASPHALT-SHINGLE-INSTALLATION 0519
PR INSTL DOCS FL33286 R3 II ECLASS-ASPHALT-SHINGLE-INSTALLATION 0519
PR INSTL DOCS FL33286 R3 II ECLASS-METAL-ROOF-INSTALLATION INSTRUCTIONS 0518
PR INSTL DOCS FL33286 R3 II ECLASS-METAL-ROOF-INSTALLATION INSTRUCTIONS 0518
