FL37159.5-R0
Report Status
Approved
Code Version
2020 Florida Building Code
Application Type
New
Folio:
Model:
UDHP IZ3 60108
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
Ultimate Double Hung Picture IZ3 407-H-950
Listing Details
Specifications
Submission Date:
December 29, 2020
Validation Date:
December 31, 2020
Design Pressures:
-65psf / +55psf
Possible CSI Codes:
CSI Code: 08 60 00 - Roof Windows and Skylights
CSI Code: 08 62 16 - Pyramidal Unit Skylights
CSI Code: 08 63 16 - Pyramidal Metal-Framed Skylights
CSI Code: 08 62 00 - Unit Skylights
CSI Code: 08 63 00 - Metal-Framed Skylights
Other:
Max size 60" x 108" (1524mm x 2743mm) Glazing makeup: 24.5mm (0.964) insulating glass, 4.7mm (0.185) tempered exterior sheet, a 9.8mm (0.386) desiccant-filled metal spacer and a 10.1mm (0.398) laminated interior sheet. The interior laminated sheet was comprised of two 3.9mm (.154) annealed sheets with a 2.3mm (0.090) SGP interlayer. Glass complies with ASTM E1300
Notes:
Date Submitted: December 29, 2020
Date Validated: December 31, 2020
Entity: Window and Door Manufacturer Association
Compliance Method: Certification Mark or Listing
Other: Max size 60" x 108" (1524mm x 2743mm) Glazing makeup: 24.5mm (0.964) insulating glass, 4.7mm (0.185) tempered exterior sheet, a 9.8mm (0.386) desiccant-filled metal spacer and a 10.1mm (0.398) laminated interior sheet. The interior laminated sheet was comprised of two 3.9mm (.154) annealed sheets with a 2.3mm (0.090) SGP interlayer. Glass complies with ASTM E1300
Official Site Status: Approved
Subcategory: Double Hung
Contact Information
Representative:
Cheryl Hill
Address:
Hwy 11 West,
Warroad, Minnesota 56763 USA
Warroad, Minnesota 56763 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 06/21/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

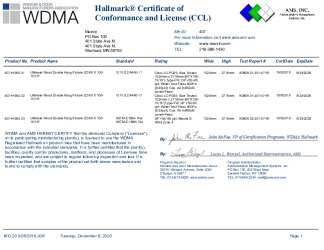

PR CERTIFICATE FL37159 R0 C CAC 950.31.32.33
PR INSTL DOCS FL37159 R0 II 75122
