FL37236.3-R0

Report Status
Approved
Code Version
2020 Florida Building Code
Application Type
New
Folio:
Model:

UWSPD 12080 4 panel

Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:

Ultimate Wood Sliding Patio Door 12080 (OXXO) 407-H-765

Listing Details
Category:
Doors
Subcategory:
Sliding Exterior Door Assemblies
Evaluator:
  -
Validator:
Window and Door Manufacturers Association
Official Site Status:
Approved
Compliance Method:
Certification Mark or Listing
Approval Method:
Method 1 Option A
Entity:
Window and Door Manufacturer Association
Specifications
Submission Date:
January 13, 2021
Validation Date:
January 13, 2021
HVHZ Approved:
No
Impact Resistant:
No [FL]
Design Pressures:
-25psf / +25psf
Possible CSI Codes:
CSI Code: 08 14 73 - Sliding Wood Doors
CSI Code: 08 13 73 - Sliding Metal Doors
CSI Code: 08 16 73 - Sliding Composite Doors
CSI Code: 08 15 73 - Sliding Plastic Doors
CSI Code: 08 32 19 - Sliding Wood-Framed Glass Doors
Other:
Max Size: 3632mm x 2426mm (143" x 95 1/2") Max Panel width: 36 3/8" Configurations: OXXO Glazing Material: The panels were glazed with nominal 19mm (0.75") insulating glass fabricated from two 3.9mm (0.15") tempered sheets glass and an 11.5mm (0.45") stainless steel spacer. Glass complies with ASTM E1300
Notes:


Date Submitted: January 13, 2021

Date Validated: January 13, 2021

Entity: Window and Door Manufacturer Association

Compliance Method: Certification Mark or Listing

Other: Max Size: 3632mm x 2426mm (143" x 95 1/2") Max Panel width: 36 3/8" Configurations: OXXO Glazing Material: The panels were glazed with nominal 19mm (0.75") insulating glass fabricated from two 3.9mm (0.15") tempered sheets glass and an 11.5mm (0.45") stainless steel spacer. Glass complies with ASTM E1300

Official Site Status: Approved

Subcategory: Sliding Exterior Door Assemblies
Contact Information
Representative:
Cheryl Hill
Address:
Hwy 11 West,
Warroad, Minnesota 56763 USA
Search the National Fenestration Rating Council
(NFRC) for Energy Efficiency information

Read, ask experts, & comment on this topic. All for free.

Latest Posts From This Product Category

Ask The Circle
Listing Changes
Last Synced: 06/13/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

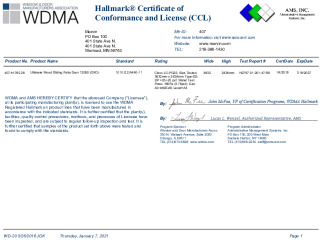

PR CERTIFICATE FL37236 R0 C CAC 765.28
PR CERTIFICATE FL37236 R0 C CAC 765.28

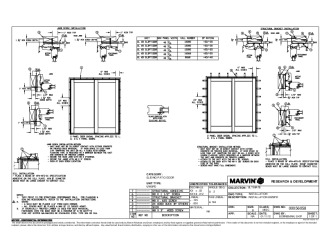

PR INSTL DOCS FL37236 R0 II 56058
PR INSTL DOCS FL37236 R0 II 56058
