FL37251.2-R1
Report Status
Approved
Code Version
2023 Florida Building Code
Application Type
Affirmation
Folio:
Model:
USPD 12080 3 panel
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
Ultimate Sliding Patio Door 12080 (XOO) 407-H-765
Listing Details
Specifications
Submission Date:
October 12, 2023
Validation Date:
October 12, 2023
Design Pressures:
-30psf / +30psf
Possible CSI Codes:
CSI Code: 08 13 73 - Sliding Metal Doors
CSI Code: 08 16 73 - Sliding Composite Doors
CSI Code: 08 15 73 - Sliding Plastic Doors
CSI Code: 08 14 73 - Sliding Wood Doors
CSI Code: 08 17 00 - Integrated Door Opening Assemblies
Other:
Max Size: 3727mm x 2426mm (146 3/4" x 95 1/2") Max Panel Width:48-7/16" Configurations: O, OX, XO, XOO, OOX Glazing Material: The panels were glazed with nominal 19 mm (0.75") insulating glass fabricated from two 3.9 mm (0.156") tempered sheets glass and an 11.5mm (0.453") stainless steel spacer. Glass complies with ASTM E1300
Notes:
Date Submitted: October 12, 2023
Date Validated: October 12, 2023
Entity: Window and Door Manufacturer Association
Compliance Method: Certification Mark or Listing
Other: Max Size: 3727mm x 2426mm (146 3/4" x 95 1/2") Max Panel Width:48-7/16" Configurations: O, OX, XO, XOO, OOX Glazing Material: The panels were glazed with nominal 19 mm (0.75") insulating glass fabricated from two 3.9 mm (0.156") tempered sheets glass and an 11.5mm (0.453") stainless steel spacer. Glass complies with ASTM E1300
Official Site Status: Approved
Subcategory: Sliding Exterior Door Assemblies
Contact Information
Representative:
Cheryl Hill
Address:
Hwy 11 West,
Warroad, Minnesota 56763 USA
Warroad, Minnesota 56763 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 07/13/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

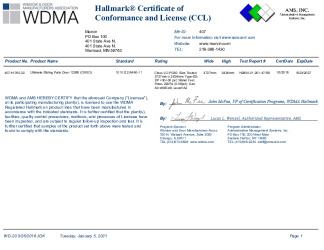

PR CERTIFICATE FL37251 R1 C CAC 765.32
PR INSTL DOCS FL37251 R1 II 56057
