FL38128.2-R1
Report Status
Approved
Code Version
2023 Florida Building Code
Application Type
Affirmation
Folio:
Model:
8122/8117 Signature Two-Wide DH Operator w/DH Transom Stacked Above
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
LCPG50 Twin Mulled Signature DH Operator (35.5"x71.5" Ind. Frame Sizes) with Single DH Transom (71"x35.5") Stacked Above. Horizontal mullion requires .062" steel reinforcement.
Listing Details
Specifications
Submission Date:
December 13, 2023
Validation Date:
December 13, 2023
Design Pressures:
-50psf / +50psf
Possible CSI Codes:
CSI Code: 08 63 23 - Ridge Metal-Framed Skylights
CSI Code: 08 63 00 - Metal-Framed Skylights
CSI Code: 08 63 16 - Pyramidal Metal-Framed Skylights
CSI Code: 08 64 00 - Plastic-Framed Skylights
CSI Code: 08 63 13 - Domed Metal-Framed Skylights
Other:
DH glazing consists of .75" overall IG comprised of two lites of 3.1mm annealed glass. DH Transom glazing consists of two lites 3.1mm for DP+/-45; requires two lites of 3.9mm for DP+50/-50. Glazing complies with ASTM E1300 requirements.
Notes:
Date Submitted: December 13, 2023
Date Validated: December 13, 2023
Entity: Window and Door Manufacturer Association
Compliance Method: Certification Mark or Listing
Other: DH glazing consists of .75" overall IG comprised of two lites of 3.1mm annealed glass. DH Transom glazing consists of two lites 3.1mm for DP+/-45; requires two lites of 3.9mm for DP+50/-50. Glazing complies with ASTM E1300 requirements.
Official Site Status: Approved
Subcategory: Double Hung
Contact Information
Representative:
Valerie Bach
Address:
829 N. 8th Street,
Medford, Wisconsin 54451 US
Medford, Wisconsin 54451 US
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 06/22/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

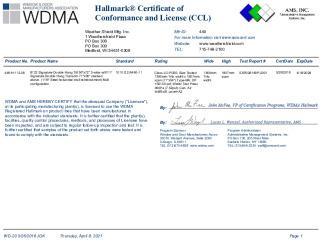

PR CERTIFICATE FL38128 R1 C CAC 449-H-112.08 TWIN 8122 WITH SGL TRANSOM
PR INSTL DOCS FL38128 R1 II 45-30869 2W DH - 1W TRAN.
