FL389.2-R9
Report Status
Approved
Code Version
2017 Florida Building Code
Application Type
Revision
Folio:
Model:
Bertha HV Accordion Shutter-Blade 1 Only- (Non-HVHZ)- Drwg 17-107
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
Extruded aluminum interlocking blades retained by tracks (top and bottom) for storm protection
Listing Details
Category:
Impact Protection Devices
Subcategory:
Accordion
Evaluator:
Walter A.. Tillit, Jr. P.E. - PE-44167
Validator:
John Henry Kampmann Jr.
Official Site Status:
Approved
Compliance Method:

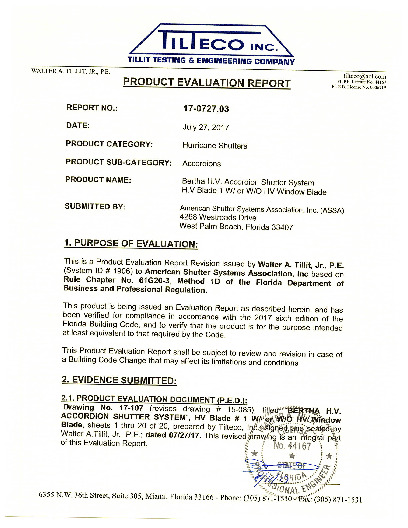

Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Entity:
Specifications
Submission Date:
September 18, 2017
Validation Date:
October 18, 2017
Possible CSI Codes:
CSI Code: 08 11 69.23 - Aluminum Storm Doors and Frames
CSI Code: 05 15 13 - Aluminum Wire Rope Assemblies
CSI Code: 08 12 16 - Aluminum Frames
CSI Code: 05 14 00 - Structural Aluminum Framing
CSI Code: 10 26 16.16 - Protective Corridor Handrails
Other:
Large missile level D. Max. Span is 16-0 for 30 p.s.f negative ASD load depending on centermates and locking rod configuration for the HV1 blade, 8-0 for +64, -72 p.s.f. A.S.D. load for HV blade for Keystone mountings 7-0 p.s.f. for metals stud mountings and 8'-0" for 110 p.s.f. for HV1A working in unison. See sheets 7, 11 and 20 respectively of installation drawings for other spans and pressures.
Notes:
Date Submitted: September 18, 2017
Date Validated: October 18, 2017
Entity:
Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Other: Large missile level D. Max. Span is 16-0 for 30 p.s.f negative ASD load depending on centermates and locking rod configuration for the HV1 blade, 8-0 for +64, -72 p.s.f. A.S.D. load for HV blade for Keystone mountings 7-0 p.s.f. for metals stud mountings and 8'-0" for 110 p.s.f. for HV1A working in unison. See sheets 7, 11 and 20 respectively of installation drawings for other spans and pressures.
Official Site Status: Approved
Subcategory: Accordion
Manufacturer Info
The American Shutter Systems Association, Inc. (ASSA) is a non-profit trade association dedicated to promoting the interests of the shutter industry. Founded in 1980, ASSA represents shutter manufacturers, distributors, and retailers, as well as related businesses such as shutter installers and repair specialists. The association works to improve industry standards, educate consumers about the benefits of shutters, and provide networking opportunities for its members. View all listings
* This manufacturer has not claimed their profile. Any logo or description displayed above has been generated by AI.
Contact Information
Representative:
Bill Feeley
Address:
4268 Westroads Drive,
West Palm Beach, Florida 33407 USA
West Palm Beach, Florida 33407 USA
