FL41057.2-R2
Report Status
Approved
Code Version
2023 Florida Building Code
Application Type
Revision
Folio:
Model:
UOD 2.25 IZ3 3080 and UOFD 2.25 G2 IZ3 3080 O
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
Ultimate Outswing Door 2.25 IZ3 3080 and Ultimate Outswing French Door 2.25 G2 IZ3 3080 O
Listing Details
Specifications
Submission Date:
November 11, 2024
Validation Date:
November 13, 2024
Design Pressures:
-65psf / +65psf
Possible CSI Codes:
CSI Code: 08 17 00 - Integrated Door Opening Assemblies
CSI Code: 06 48 13 - Exterior Wood Door Frames
CSI Code: 08 17 23 - Integrated Wood Door Opening Assemblies
CSI Code: 08 17 13 - Integrated Metal Door Opening Assemblies
CSI Code: 08 01 17 - Operation and Maintenance of Integrated Door Opening Assemblies
Other:
Max Size: 37 7/16 x 98" Max Panel Width: 35.063" Wind Zone 3 Missile Level D. Glass makeup; insulating glass consisting of a 3.9 mm (5/32") tempered exterior lite, and a 8.6 mm laminated interior lite. The laminated interior lite was comprised of two, 3.1 mm annealed sheets with a 2.3 mm (.090") PVB interlayer. Glass complies with ASTM E1300.
Notes:
Date Submitted: November 11, 2024
Date Validated: November 13, 2024
Entity: Window and Door Manufacturer Association
Compliance Method: Certification Mark or Listing
Other: Max Size: 37 7/16 x 98" Max Panel Width: 35.063" Wind Zone 3 Missile Level D. Glass makeup; insulating glass consisting of a 3.9 mm (5/32") tempered exterior lite, and a 8.6 mm laminated interior lite. The laminated interior lite was comprised of two, 3.1 mm annealed sheets with a 2.3 mm (.090") PVB interlayer. Glass complies with ASTM E1300.
Official Site Status: Approved
Subcategory: Swinging Exterior Door Assemblies
Contact Information
Representative:
Cheryl Hill
Address:
Hwy 11 West,
Warroad, Minnesota 56763 USA
Warroad, Minnesota 56763 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 10/31/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

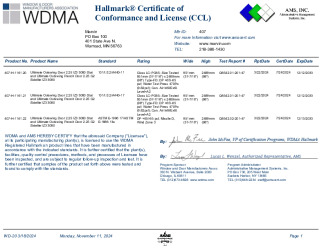

PR CERTIFICATE FL41057 R2 C CAC CCL 1161.20.21.22

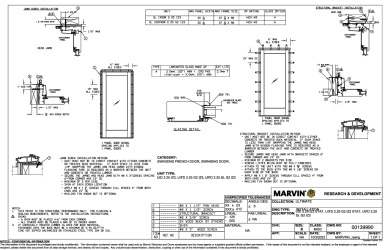

PR INSTL DOCS FL41057 R2 II 00139990 UID2.25 O INSTALLATION
