FL41057.5-R0
Report Status
Approved
Code Version
2020 Florida Building Code
Application Type
New
Folio:
Model:
UOFD 2.25 G2 IZ3 CN7080 XX
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
Ultimate Outswing French Door 2.25 G2 IZ3 CN7080 XX
Listing Details
Specifications
Submission Date:
February 25, 2022
Validation Date:
March 1, 2022
Design Pressures:
-65psf / +65psf
Possible CSI Codes:
CSI Code: 08 17 00 - Integrated Door Opening Assemblies
CSI Code: 06 48 13 - Exterior Wood Door Frames
CSI Code: 06 48 16 - Interior Wood Door Frames
CSI Code: 08 17 43 - Integrated Composite Door Opening Assemblies
CSI Code: 08 01 17 - Operation and Maintenance of Integrated Door Opening Assemblies
Other:
Max Size: 84 5/8 x 98" Max Panel Width: 41.063" Wind Zone 3 Missile Level D. Glass makeup; insulating glass consisting of a 4.7 mm (3/16") tempered exterior lite, and a 8.6 mm laminated interior lite. The laminated interior lite was comprised of two, 3.0 mm annealed sheets with a 2.2 mm (.090") SGP interlayer. Glass complies with ASTM E1300.
Notes:
Date Submitted: February 25, 2022
Date Validated: March 1, 2022
Entity: Window and Door Manufacturer Association
Compliance Method: Certification Mark or Listing
Other: Max Size: 84 5/8 x 98" Max Panel Width: 41.063" Wind Zone 3 Missile Level D. Glass makeup; insulating glass consisting of a 4.7 mm (3/16") tempered exterior lite, and a 8.6 mm laminated interior lite. The laminated interior lite was comprised of two, 3.0 mm annealed sheets with a 2.2 mm (.090") SGP interlayer. Glass complies with ASTM E1300.
Official Site Status: Approved
Subcategory: Swinging Exterior Door Assemblies
Contact Information
Representative:
Cheryl Hill
Address:
Hwy 11 West,
Warroad, Minnesota 56763 USA
Warroad, Minnesota 56763 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 09/29/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

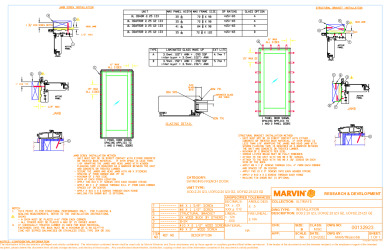

PR INSTL DOCS FL41057 R0 II 132923 OPER
PR CERTIFICATE FL41057 R0 C CAC UOFD 2.25 G2 IZ3 7080 XX 1164.28.29.30
