FL42140.1-R1
Report Status
Approved
Code Version
2023 Florida Building Code
Application Type
Revision
Folio:
Model:
ROLL UP SHUTTER SYSTEM WITH CHD-6 SLAT (END RETENTION) (NHVHZ)
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
Extruded aluminum slats interlocked together thru knuckles and retained by tracks to provide hurricane protection
Listing Details
Category:
Impact Protection Devices
Subcategory:
Roll-up
Evaluator:
WALTER A. TILLIT JR., P.E. - PE-44167
Validator:
John W. Knezevich, PE
Official Site Status:
Approved
Compliance Method:
Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Entity:
Specifications
Submission Date:
October 4, 2023
Validation Date:
October 5, 2023
Design Pressures:
-30psf / +30psf
Possible CSI Codes:
CSI Code: 08 11 69.23 - Aluminum Storm Doors and Frames
CSI Code: 08 12 16 - Aluminum Frames
CSI Code: 08 11 63.23 - Aluminum Screen and Storm Doors and Frames
CSI Code: 05 45 00 - Metal Support Assemblies
CSI Code: 08 11 69 - Metal Storm Doors and Frames
Other:
LARGE MISSILE LEVEL "D", WIND ZONES 1,2,3 AND 4 (BASIC PROTECTION ONLY). PRESSURE RATING +30, -30 P.S.F. AT 21' -8" SPAN (WALL MOUNTED) AND +140, -140 P.S.F. AT 7' -9" (WALL MOUNTED) SPAN, 3/8" SLIP. SEE SHEETS 13 AND 18 OF INSTALLATION DRAWING FOR ADDITIONAL PRESSURES AND SPANS.
Notes:
Date Submitted: October 4, 2023
Date Validated: October 5, 2023
Entity:
Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Other: LARGE MISSILE LEVEL "D", WIND ZONES 1,2,3 AND 4 (BASIC PROTECTION ONLY). PRESSURE RATING +30, -30 P.S.F. AT 21' -8" SPAN (WALL MOUNTED) AND +140, -140 P.S.F. AT 7' -9" (WALL MOUNTED) SPAN, 3/8" SLIP. SEE SHEETS 13 AND 18 OF INSTALLATION DRAWING FOR ADDITIONAL PRESSURES AND SPANS.
Official Site Status: Approved
Subcategory: Roll-up
Contact Information
Representative:
Jaime Zabala
Address:
6063 Janes Lane,
Naples, Florida 34109 USA
Naples, Florida 34109 USA
Phone:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 07/25/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

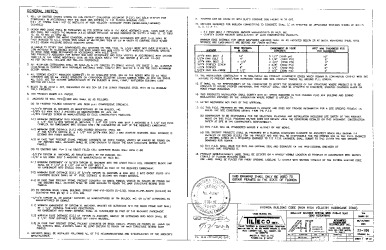

PR INSTL DOCS FL42140 R1 II PED DRWG 23-186 ADVANCED HURRICANE TECH
