FL4236.2-R5

Report Status
Approved
Code Version
2017 Florida Building Code
Application Type
Revision
Folio:
Model:

IL 20

Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:

Inter-lock 20 Metal Roof Panel24 Ga. 1-3/4" Rib, 18" wide over 22 Ga. Metal Deck

Listing Details
Category:
Roofing
Subcategory:
Metal Roofing
Evaluator:
Terrence E. Wolfe - PE-44923
Validator:
Brian Jaks, P.E.
Official Site Status:
Approved
Compliance Method:
Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Approval Method:
Method 1 Option D
Entity:

Specifications
Submission Date:
October 2, 2017
Validation Date:
October 11, 2017
Expiration Date:
12/31/2021
HVHZ Approved:
No
Impact Resistant:
[ None ]
Design Pressures:
-52.5psf / +0psf
Possible CSI Codes:
CSI Code: 07 41 13 - Metal Roof Panels
CSI Code: 07 41 00 - Roof Panels
CSI Code: 07 63 00 - Sheet Metal Roofing Specialties
CSI Code: 07 61 00 - Sheet Metal Roofing
CSI Code: 07 41 63 - Fabricated Roof Panel Assemblies
Other:
-52.5 psf @ 48" o.c. clip spacing. Install per manufacturer's details. Not for use in HVHZ Zones.
Notes:


Date Submitted: October 2, 2017

Date Validated: October 11, 2017

Entity:

Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer

Other: -52.5 psf @ 48" o.c. clip spacing. Install per manufacturer's details. Not for use in HVHZ Zones.

Official Site Status: Approved

Subcategory: Metal Roofing
Manufacturer Info
Dimensional Metals, Inc. is a global provider of premium-quality metal products, specializing in precision-rolled strips and foils for various industries, including aerospace, automotive, electronics, medical, and energy. View all listings
* This manufacturer has not claimed their profile. Any logo or description displayed above has been generated by AI.
Contact Information
Representative:
Brian Clem
Address:
819 South Salisbury GQ Ave.,
Salisbury, North Caroli 28146 USA
Listing Changes
Last Synced: 05/20/2024
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes

Save Time & Money with Samplize Paint Sample Bundles
Easily sample the top 8 colors in a color family + Save 10%
Approval & Installation Documents
PR INSTL DOCS FL4236 R5 II IL 20 24 GA. OVER STEEL DECK - SECURED
PR INSTL DOCS FL4236 R5 II IL 20 24 GA. OVER STEEL DECK - SECURED

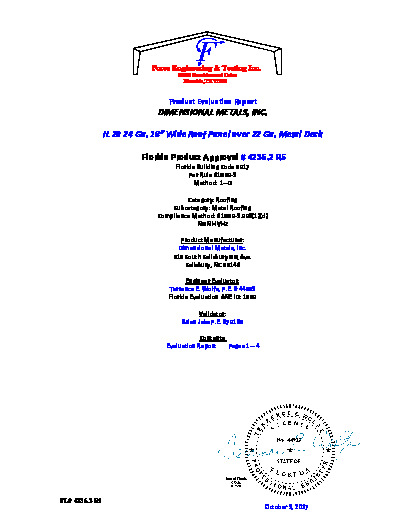

PR TECH DOCS FL4236 R5 AE IL 20 24 GA. OVER STEEL DECK - SECURED
PR TECH DOCS FL4236 R5 AE IL 20 24 GA. OVER STEEL DECK - SECURED
