FL47414.5-R0
Report Status
Approved
Code Version
2023 Florida Building Code
Application Type
New
Folio:
Model:
VELUX CMDG 4646 (Curb Mount) Polycarb Dome over Insulated Glass Skylight - Non-Impact
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
CMDG Aluminum Curb Mount Fixed Skylight, size 4646 and smaller (426-H-732.00/.01)
Listing Details
Specifications
Submission Date:
March 31, 2025
Validation Date:
April 4, 2025
Design Pressures:
-60psf / +140psf
Possible CSI Codes:
CSI Code: 08 63 23 - Ridge Metal-Framed Skylights
CSI Code: 08 63 00 - Metal-Framed Skylights
CSI Code: 08 63 13 - Domed Metal-Framed Skylights
CSI Code: 08 63 53 - Motorized Metal-Framed Skylights
CSI Code: 08 62 00 - Unit Skylights
Other:
SKP-PG60, max size 1301mm x 1301mm (51.25" x 51.25"). PG60 means minimum capacity is 60psf. Class A Burn-rated dome. Exterior dome is smooth polycarb over 3mm clear tempered / 8.5mm Tp spacer / 5.4mm laminate using two 2.3mm panes and 0.76" PVB interlayer. Lo-E 366 coating. (Glass meets ASTM E1300). Anchoring to site-built curb using supplied #8 1.75" stainless steel panhead screws. Fill all pre-drilled holes with screws.
Notes:
Date Submitted: March 31, 2025
Date Validated: April 4, 2025
Entity: Window and Door Manufacturer Association
Compliance Method: Certification Mark or Listing
Other: SKP-PG60, max size 1301mm x 1301mm (51.25" x 51.25"). PG60 means minimum capacity is 60psf. Class A Burn-rated dome. Exterior dome is smooth polycarb over 3mm clear tempered / 8.5mm Tp spacer / 5.4mm laminate using two 2.3mm panes and 0.76" PVB interlayer. Lo-E 366 coating. (Glass meets ASTM E1300). Anchoring to site-built curb using supplied #8 1.75" stainless steel panhead screws. Fill all pre-drilled holes with screws.
Official Site Status: Approved
Subcategory: Skylight
Contact Information
Representative:
Mike Rhoden
Address:
P.O. Box 5001,
Greenwood, South Caroli 29648 USA
Greenwood, South Caroli 29648 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 06/19/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

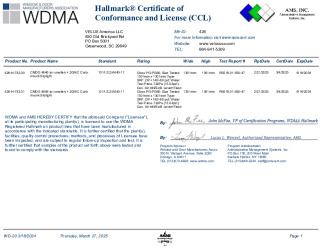

PR CERTIFICATE FL47414 R0 C CAC VELUX CCL CMDG 4646 2004C CURB-MOUNT POLYCARB OVER GLASS SKYLIGHT
PR INSTL DOCS FL47414 R0 II VELUX CMDG INSTALLATION INSTRUCTIONS
