FL4809.11-R20
Report Status
Approved
Code Version
2017 Florida Building Code
Application Type
Revision
Folio:
Model:
CMOBFD IZ3 180100
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
Clad 2 1/4" Ultimate Bi-Fold Door StormPlus IZ3 407-H-1146
Listing Details
Specifications
Submission Date:
March 15, 2018
Validation Date:
April 3, 2018
Design Pressures:
-50psf / +50psf
Possible CSI Codes:
CSI Code: 08 14 23 - Clad Wood Doors
CSI Code: 08 13 13.13 - Standard Hollow Metal Doors
CSI Code: 08 11 69.23 - Aluminum Storm Doors and Frames
CSI Code: 08 11 69.13 - Steel Storm Doors and Frames
CSI Code: 08 14 69 - Wood Storm Doors
Other:
Max Size: 5467mm x 3035mm (215 1/4" x1191/2") Max Panel Width: 35 1/16" Wind Zone 3 Missile Level D. Glass makeup; insulating glass consisting of a 4.7 mm (0.185") tempered exterior lite, 9.3 mm (0.366") stainless steel spacer and a 8.4mm (.331") laminated interior lite. The laminated interior lite was comprised of two 3.1 mm (.122") annealed sheets with a 2.2 mm (.090") SGP interlayer. Glass complies with ASTM E1300. Hardware: Multi point lock w/deadbolt.
Notes:
Date Submitted: March 15, 2018
Date Validated: April 3, 2018
Entity: Window and Door Manufacturer Association
Compliance Method: Certification Mark or Listing
Other: Max Size: 5467mm x 3035mm (215 1/4" x1191/2") Max Panel Width: 35 1/16" Wind Zone 3 Missile Level D. Glass makeup; insulating glass consisting of a 4.7 mm (0.185") tempered exterior lite, 9.3 mm (0.366") stainless steel spacer and a 8.4mm (.331") laminated interior lite. The laminated interior lite was comprised of two 3.1 mm (.122") annealed sheets with a 2.2 mm (.090") SGP interlayer. Glass complies with ASTM E1300. Hardware: Multi point lock w/deadbolt.
Official Site Status: Approved
Subcategory: Swinging Exterior Door Assemblies
Contact Information
Representative:
Cheryl Hill
Address:
Hwy 11 West,
Warroad, Minnesota 56763 USA
Warroad, Minnesota 56763 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 07/09/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

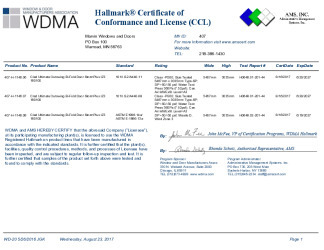

PR CERTIFICATE FL4809 R20 C CAC CCL FOR MARVIN 1146.06, .07, .08

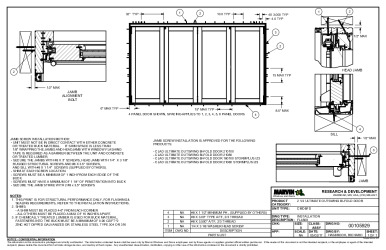

PR INSTL DOCS FL4809 R20 II 00105929
