FL4939.11-R18
Report Status
Approved
Code Version
2017 Florida Building Code
Application Type
Revision
Folio:
Model:
CSPD 12080 3 panel
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
Clad Sliding Patio Door 12080 (OXO) 407-H-691
Listing Details
Specifications
Submission Date:
November 21, 2017
Validation Date:
November 28, 2017
Design Pressures:
-30psf / +30psf
Possible CSI Codes:
CSI Code: 08 16 73 - Sliding Composite Doors
CSI Code: 08 13 73 - Sliding Metal Doors
CSI Code: 08 13 16.13 - Aluminum Terrace Doors
CSI Code: 08 14 73 - Sliding Wood Doors
CSI Code: 08 14 23 - Clad Wood Doors
Other:
Max Size: 3727mm x 2426mm (146 3/4" x 95 1/2")Max Panel Width:48.406"Configurations: O, OX, XO, XOO, OXO, OOX Glazing Material: The panels were glazed with nominal 19 mm (0.75") insulating glass fabricated from two 3.1 mm (0.12") tempered sheets glass and an 13 mm (0.51") stainless steel spacer. Glass complies with ASTM E1300
Notes:
Date Submitted: November 21, 2017
Date Validated: November 28, 2017
Entity: Window and Door Manufacturer Association
Compliance Method: Certification Mark or Listing
Other: Max Size: 3727mm x 2426mm (146 3/4" x 95 1/2")Max Panel Width:48.406"Configurations: O, OX, XO, XOO, OXO, OOX Glazing Material: The panels were glazed with nominal 19 mm (0.75") insulating glass fabricated from two 3.1 mm (0.12") tempered sheets glass and an 13 mm (0.51") stainless steel spacer. Glass complies with ASTM E1300
Official Site Status: Approved
Subcategory: Sliding Exterior Door Assemblies
Contact Information
Representative:
Cheryl Hill
Address:
Hwy 11 West,
Warroad, Minnesota 56763 USA
Warroad, Minnesota 56763 USA
Phone:
Website:
Listing Changes
Last Synced: 07/30/2026
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

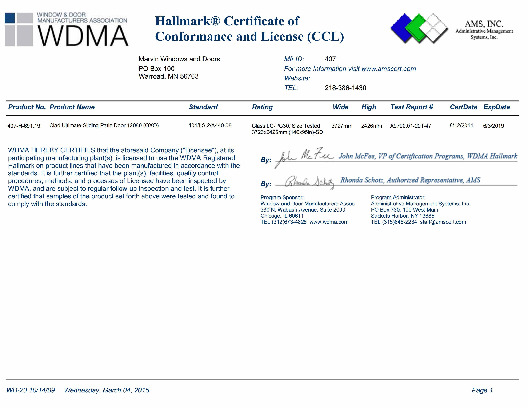

PR CERTIFICATE FL4939 R18 C CAC CCL FOR MARVIN 407-H-691.19

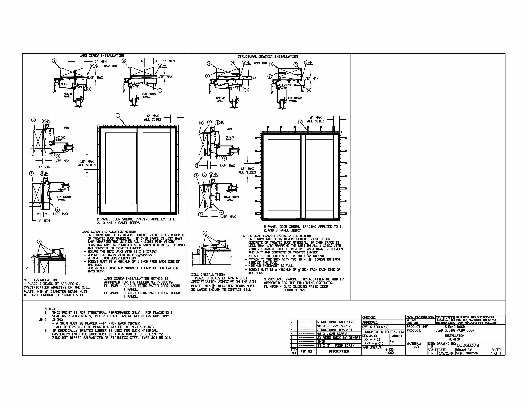

PR INSTL DOCS FL4939 R18 II 00068379
