FL5562.4-R8

Report Status
Approved
Code Version
2017 Florida Building Code
Application Type
Revision
Folio:
Model:

Tite-Loc Plus Panel

Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:

2" High, 18" Wide x 0.040" Aluminum Panels over 16 Ga. Purlins

Listing Details
Category:
Components, Fasteners, Materials
Subcategory:
Roof Deck
Evaluator:
Bala Sockalingam - PE-62240
Validator:
Locke Bowden P.E.
Official Site Status:
Approved
Compliance Method:
Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Approval Method:
Method 1 Option D
Entity:

Specifications
Submission Date:
October 3, 2017
Validation Date:
October 4, 2017
Expiration Date:
12/31/2021
HVHZ Approved:
No
Impact Resistant:
[ None ]
Design Pressures:
-202.5psf / +0psf
Possible CSI Codes:
CSI Code: 07 41 00 - Roof Panels
CSI Code: 07 41 13 - Metal Roof Panels
CSI Code: 06 12 00 - Structural Panels
CSI Code: 07 41 63 - Fabricated Roof Panel Assemblies
CSI Code: 07 41 23 - Wood Roof Panels
Other:
Uplift load of 56.0 psf @ clip spacing of 5'-0" o.c. and 202.5 psf @ clip spacing of 1'-0" o.c. Install per manufacturer's details. Not for use in HVHZ.
Notes:


Date Submitted: October 3, 2017

Date Validated: October 4, 2017

Entity:

Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer

Other: Uplift load of 56.0 psf @ clip spacing of 5'-0" o.c. and 202.5 psf @ clip spacing of 1'-0" o.c. Install per manufacturer's details. Not for use in HVHZ.

Official Site Status: Approved

Subcategory: Roof Deck
Manufacturer Info
Petersen Aluminum Corporation, headquartered in Elk Grove Village, Illinois, is a leading manufacturer and distributor of aluminum coils, sheets, and plates, along with fabricated products such as extrusions, composite panels, and anodized aluminum. The company serves a diverse range of industries including construction, transportation, consumer durables, and aerospace through its extensive network of sales offices, distribution centers, and manufacturing facilities across North America and Europe. View all listings
* This manufacturer has not claimed their profile. Any logo or description displayed above has been generated by AI.
Contact Information
Representative:
Nicholas Delfino
Address:
102 Northpoint Parkway Building 106,
Acworth, Georgia 30102 USA
Listing Changes
Last Synced: 06/16/2024
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

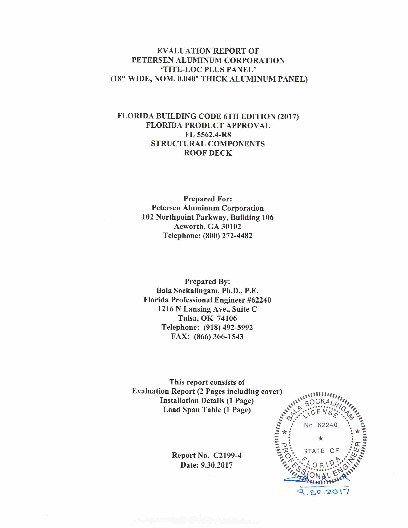

PR INSTL DOCS FL5562 R8 II EVALUATIONREPORTC2199 4
