FL6278.5-R6

Report Status
Approved
Code Version
2020 Florida Building Code
Application Type
Revision
Folio:
Model:

5- "Vertical-Lok"

Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:

Roof Panel, 24 Gauge Steel, 16" Wide Panel, Attached to Structural Supports with panel clips.

Listing Details
Category:
Components, Fasteners, Materials
Subcategory:
Roof Deck
Evaluator:
R. Keith Joyce - PE-59081
Validator:
Dennis Johnson, PE
Official Site Status:
Approved
Compliance Method:
Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Approval Method:
Method 1 Option D
Entity:

Specifications
Submission Date:
November 19, 2020
Validation Date:
November 20, 2020
HVHZ Approved:
No
Impact Resistant:
No [FL]
Design Pressures:
-40.4psf / +27psf
Possible CSI Codes:
CSI Code: 07 41 00 - Roof Panels
CSI Code: 07 41 13 - Metal Roof Panels
CSI Code: 06 12 00 - Structural Panels
CSI Code: 07 41 63 - Fabricated Roof Panel Assemblies
CSI Code: 07 41 23 - Wood Roof Panels
Other:
+ 27 / -40.4 psf allowable load based on supports at 5'-0" o.c. Refer to Evaluation Report for additional Span Load values.
Notes:


Date Submitted: November 19, 2020

Date Validated: November 20, 2020

Entity:

Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer

Other: + 27 / -40.4 psf allowable load based on supports at 5'-0" o.c. Refer to Evaluation Report for additional Span Load values.

Official Site Status: Approved

Subcategory: Roof Deck
Manufacturer Info
Corle Building Systems is a family-owned company based in Lenox, Iowa, specializing in the design, engineering, and manufacturing of pre-engineered steel structures for agricultural, commercial, and industrial use. The company has a solid reputation for its innovative and cost-effective building solutions, coupled with its commitment to exceptional customer service and on-time delivery. View all listings
* This manufacturer has not claimed their profile. Any logo or description displayed above has been generated by AI.
Contact Information
Representative:
Johnson Dennis
Address:
114 Rosemont Lane,
Imler, PA, Pennsylvania 15563 USA
Listing Changes
Last Synced: 06/25/2024
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents
PR INSTL DOCS FL6278 R6 II VERTICAL-LOK INSTALLAITON INSTRUCTIONS
PR INSTL DOCS FL6278 R6 II VERTICAL-LOK INSTALLAITON INSTRUCTIONS

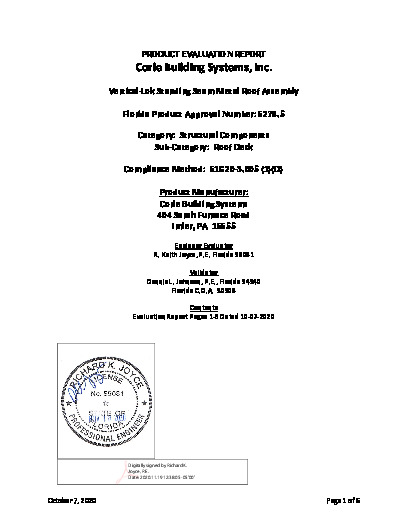

PR TECH DOCS FL6278 R6 AE CORLE VERTICAL LOK
PR TECH DOCS FL6278 R6 AE CORLE VERTICAL LOK
