FL6393.1-R16
Report Status
Approved
Code Version
2020 Florida Building Code
Application Type
Revision
Folio:
Model:
VELUX Flat Glass Sun Tunnel (HVHZ)
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
[TZR or TZRL or TZRQ] + [014] + [1A00] 3.9mm tempered clear outer pane with 7mm laminated inner pane.
Listing Details
Specifications
Submission Date:
July 15, 2021
Validation Date:
August 18, 2021
Design Pressures:
-50psf / +50psf
Possible CSI Codes:
CSI Code: 12 24 16.13 - Z-Pleated Window Shades
CSI Code: 08 63 23 - Ridge Metal-Framed Skylights
CSI Code: 08 63 13 - Domed Metal-Framed Skylights
CSI Code: 08 63 00 - Metal-Framed Skylights
CSI Code: 08 62 13 - Domed Unit Skylights
Other:
Wind Zone 4, Missile D, Design Press. +120/-80; Max tube dia. 356 mm (14 in). Tested for cycling per ASTM E1886/ASTM E1996. Glass meets ASTM E1300: 3.9mm tempered clear outer pane with 7mm laminate using 2.3mm panes and three 0.030" PVB interlayers. Anchorage fasteners provided to secure skylight to curb : #8 1 3/4" (4.2 x 45mm) pan head st. st. metal screws.
Notes:
Date Submitted: July 15, 2021
Date Validated: August 18, 2021
Entity: Window and Door Manufacturer Association
Compliance Method: Certification Mark or Listing
Other: Wind Zone 4, Missile D, Design Press. +120/-80; Max tube dia. 356 mm (14 in). Tested for cycling per ASTM E1886/ASTM E1996. Glass meets ASTM E1300: 3.9mm tempered clear outer pane with 7mm laminate using 2.3mm panes and three 0.030" PVB interlayers. Anchorage fasteners provided to secure skylight to curb : #8 1 3/4" (4.2 x 45mm) pan head st. st. metal screws.
Official Site Status: Approved
Subcategory: Skylight
Contact Information
Representative:
Mike Rhoden
Address:
P.O. Box 5001,
Greenwood, South Caroli 29648 USA
Greenwood, South Caroli 29648 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 09/30/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents
PR CERTIFICATE FL6393 R16 C CAC FL6393 TZR TZRL TZRQ (IMPACT) 014 1A00

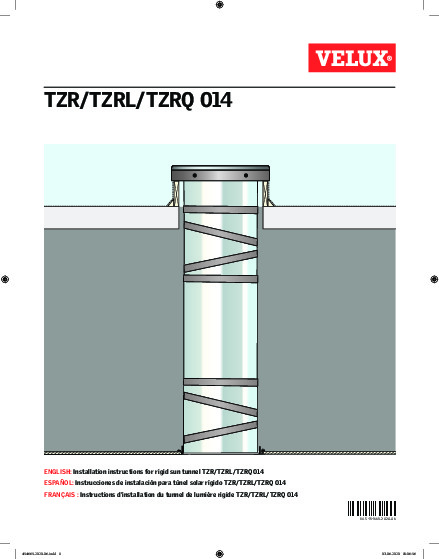

PR INSTL DOCS FL6393 R16 II TZR-TZRL-TZRQ INSTALLATION INSTRUCTIONS
