FL6393.13-R20
Report Status
Approved
Code Version
2023 Florida Building Code
Application Type
Revision
Folio:
Model:
VELUX TGF 022 (Deck Mount) Sun Tunnel - Impact Resistant
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
TGF 022 + 1000 (426-H-705.05) Polycarb dome.
Listing Details
Specifications
Submission Date:
June 5, 2025
Validation Date:
June 30, 2025
Design Pressures:
-130psf / +300psf
Possible CSI Codes:
CSI Code: 08 63 13 - Domed Metal-Framed Skylights
CSI Code: 08 62 13 - Domed Unit Skylights
CSI Code: 08 62 16 - Pyramidal Unit Skylights
CSI Code: 08 63 16 - Pyramidal Metal-Framed Skylights
CSI Code: 08 60 00 - Roof Windows and Skylights
Other:
Wind Zone 3, Missile C, Cycle Pressure +50/-50; Tested for cycling per ASTM E1886/ASTM E1996. TDDCC-PG130; Max. tube dia. 559 mm (22 in) - TDD. PG130 means minimum capacity is 130 psf. Dome glazing is minimum 3 mm thick. Flashing attaches to roof deck. Anchorage fasteners provided are black #8 st. stl. pan head screws.
Notes:
Date Submitted: June 5, 2025
Date Validated: June 30, 2025
Entity: Window and Door Manufacturer Association
Compliance Method: Certification Mark or Listing
Other: Wind Zone 3, Missile C, Cycle Pressure +50/-50; Tested for cycling per ASTM E1886/ASTM E1996. TDDCC-PG130; Max. tube dia. 559 mm (22 in) - TDD. PG130 means minimum capacity is 130 psf. Dome glazing is minimum 3 mm thick. Flashing attaches to roof deck. Anchorage fasteners provided are black #8 st. stl. pan head screws.
Official Site Status: Approved
Subcategory: Skylight
Contact Information
Representative:
Mike Rhoden
Address:
P.O. Box 5001,
Greenwood, South Caroli 29648 USA
Greenwood, South Caroli 29648 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 11/02/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

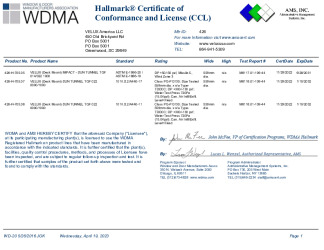

PR CERTIFICATE FL6393 R20 C CAC TGF 022 1000 (IMPACT) CCL
