FL6393.8-R13

Report Status
Approved
Code Version
2017 Florida Building Code
Application Type
Revision
Folio:
Model:

VELUX Sun Tunnel (Residential) Impact Resistant

Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:

[TGR, TMF or TMR] + [010 or 014] + [1000 or 1000E0] - and - [TGF 014 or TGF 022] + [1000 or 1000E0] (426-H-705.03)

Listing Details
Category:
Windows Mullions and Skylights
Subcategory:
Skylight
Evaluator:
  -
Validator:
Window and Door Manufacturers Association
Official Site Status:
Approved
Compliance Method:
Certification Mark or Listing
Approval Method:
Method 1 Option A
Entity:
Window and Door Manufacturer Association
Specifications
Submission Date:
November 2, 2018
Validation Date:
November 28, 2018
Expiration Date:
12/31/2021
HVHZ Approved:
No
Impact Resistant:
Yes [FL]
Design Pressures:
-50psf / +50psf
Possible CSI Codes:
CSI Code: 26 09 36.19 - Standalone Multipreset Modular Dimming
CSI Code: 26 09 36.16 - Integrated Multipreset Modular Dimming Controls
CSI Code: 08 60 00 - Roof Windows and Skylights
CSI Code: 26 09 36 - Modular Dimming Controls
CSI Code: 08 62 00 - Unit Skylights
Other:
Wind Zone 3, Missile Level C, Cycle Pressure +50/-50, max. dia. 559 mm (22 in.). These models were tested for impact and cycling pursuant to ASTM E1996-05 and ASTM E1886-05. Dome glazing is minimum 3 mm thick. Flashing types attach to roof deck. Anchorage fasteners provided are black #8 st. stl. pan head screws. [See following item for Air-water-structural approvals.]
Notes:


Date Submitted: November 2, 2018

Date Validated: November 28, 2018

Entity: Window and Door Manufacturer Association

Compliance Method: Certification Mark or Listing

Other: Wind Zone 3, Missile Level C, Cycle Pressure +50/-50, max. dia. 559 mm (22 in.). These models were tested for impact and cycling pursuant to ASTM E1996-05 and ASTM E1886-05. Dome glazing is minimum 3 mm thick. Flashing types attach to roof deck. Anchorage fasteners provided are black #8 st. stl. pan head screws. [See following item for Air-water-structural approvals.]

Official Site Status: Approved

Subcategory: Skylight
Manufacturer Info
VELUX
VELUX America, LLC, a leading global provider of skylights, roof windows, and modular skylights, is committed to bringing light and fresh air into homes and commercial buildings. With a focus on energy efficiency, VELUX products help reduce energy consumption and provide natural ventilation. The company's wide range of skylight and roof window options, including manual and electric models, offers flexible solutions for various architectural designs and styles. VELUX America is dedicated to providing high-quality products and exceptional customer service, making it a trusted choice for homeowners, architects, and builders across the United States. View all listings
* This manufacturer has not claimed their profile. Any logo or description displayed above has been generated by AI.
Contact Information
Representative:
Mike Rhoden
Address:
P.O. Box 5001,
Greenwood, South Caroli 29648 USA
Search the National Fenestration Rating Council
(NFRC) for Energy Efficiency information
Listing Changes
Last Synced: 05/20/2024
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes

Save Time & Money with Samplize Paint Sample Bundles
Easily sample the top 8 colors in a color family + Save 10%
Approval & Installation Documents

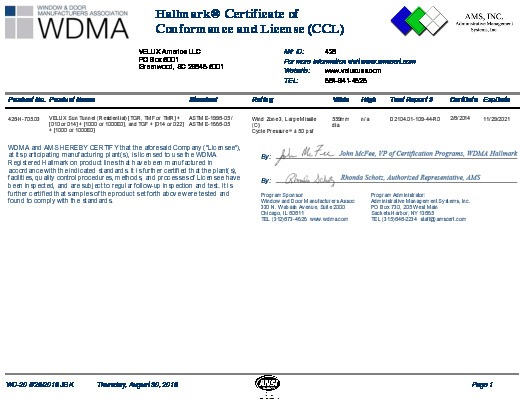

PR CERTIFICATE FL6393 R13 C CAC TGF TGR TMF TMR RESIDENTIAL SUN TUNNEL-IMPACT
PR CERTIFICATE FL6393 R13 C CAC TGF TGR TMF TMR RESIDENTIAL SUN TUNNEL-IMPACT
PR INSTL DOCS FL6393 R13 II TGF 022 INSTALLATION
PR INSTL DOCS FL6393 R13 II TGF 022 INSTALLATION
PR INSTL DOCS FL6393 R13 II TGF TMF 014 INSTALLATION
PR INSTL DOCS FL6393 R13 II TGF TMF 014 INSTALLATION

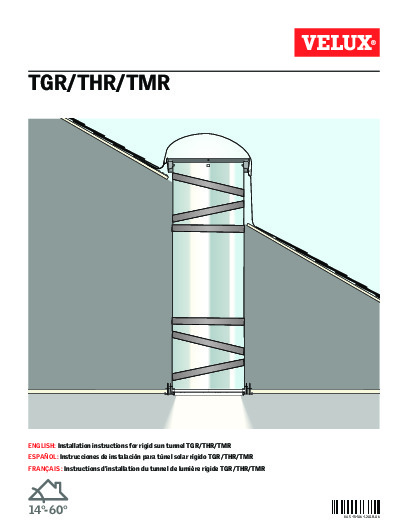

PR INSTL DOCS FL6393 R13 II TGR TMR THR 014 INSTALLATION
PR INSTL DOCS FL6393 R13 II TGR TMR THR 014 INSTALLATION
