FL6566.1-R8
Report Status
Approved
Code Version
2020 Florida Building Code
Application Type
Editorial Change
Folio:
Model:
Extruded Bertha Bahama Shutter - HVHZ - Drawing#20-161
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
Extruded aluminum blades retained by perimeter aluminum frame and tracks, to provide hurricane protection.
Listing Details
Category:
Impact Protection Devices
Subcategory:
Bahama
Evaluator:
Walter A. Tillit Jr., P.E - PE-44167
Validator:
John Henry Kampmann Jr.
Official Site Status:
Approved
Compliance Method:
Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Entity:
Specifications
Submission Date:
February 22, 2021
Validation Date:
March 15, 2021
Possible CSI Codes:
CSI Code: 08 12 16 - Aluminum Frames
CSI Code: 05 14 00 - Structural Aluminum Framing
CSI Code: 07 46 16 - Aluminum Siding
CSI Code: 08 11 69.23 - Aluminum Storm Doors and Frames
CSI Code: 05 14 13 - Architecturally-Exposed Structural Aluminum Framing
Other:
Large Missile. Max. span is 42" X 96" at +75, -100 p.s.f. for single units depending on side bracket condition and 84" high X unlimited width for +62, -75 p.s.f. load depending on side bracket conditions. See sheet 9 of installation drawings for other spans and pressures. MAY BE INSTALLED ON HIGH VELOCITY HURRICANE ZONES.
Notes:
Date Submitted: February 22, 2021
Date Validated: March 15, 2021
Entity:
Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Other: Large Missile. Max. span is 42" X 96" at +75, -100 p.s.f. for single units depending on side bracket condition and 84" high X unlimited width for +62, -75 p.s.f. load depending on side bracket conditions. See sheet 9 of installation drawings for other spans and pressures. MAY BE INSTALLED ON HIGH VELOCITY HURRICANE ZONES.
Official Site Status: Approved
Subcategory: Bahama
Contact Information
Representative:
Bill Feeley
Address:
4268 Westroads Drive,
West Palm Beach, Florida 33407 USA
West Palm Beach, Florida 33407 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 10/15/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents
PR INSTL DOCS FL6566 R8 II EXTRUDED BERTHA BAHAMA SHUTTER INSTALLATION INSTRUCTIONS HVHZ

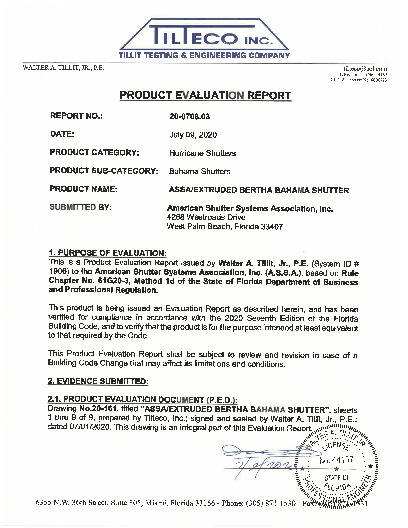

PR TECH DOCS FL6566 R8 AE EXTRUDED BERTHA BAHAMA SHUTTER EVALUATION REPORT
