FL9288.1-R4
Report Status
Approved
Code Version
2017 Florida Building Code
Application Type
Revision
Folio:
Model:
26 Ga. R Wall Panel
Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:
26 Ga. R Wall Panel over open framing Non-HVHZ
Listing Details
Category:
Components, Fasteners, Materials
Subcategory:
Structural Wall
Evaluator:
Locke Bowden - PE-49704
Validator:
Zachary R. Priest, P.E.
Official Site Status:
Approved
Compliance Method:
Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Entity:
Specifications
Submission Date:
October 19, 2017
Validation Date:
October 19, 2017
Design Pressures:
-40psf / +50psf
Possible CSI Codes:
CSI Code: 07 42 00 - Wall Panels
CSI Code: 07 42 13 - Metal Wall Panels
CSI Code: 07 42 63 - Fabricated Wall Panel Assemblies
CSI Code: 07 42 13.16 - Metal Plate Wall Panels
CSI Code: 06 12 00 - Structural Panels
Other:
+50.0 psf @ 5'-0" o.c. fastener spacing. -40.0 psf @ 5'-0" psf fastener spacing.The panel is a thru-fastened structural wall panel installed over open framing. Non-HVHZ. Engineer must evaluate the panel attachment to substrate for fastener pullout/pullover per AISI Specifications. See Wall erection details from manufacturer. The use of this panel for shear wall application is outside the scope of this product approval.
Notes:
Date Submitted: October 19, 2017
Date Validated: October 19, 2017
Entity:
Compliance Method: Evaluation Report from a Florida Registered Architect or a Licensed Florida Professional Engineer
Other: +50.0 psf @ 5'-0" o.c. fastener spacing. -40.0 psf @ 5'-0" psf fastener spacing.The panel is a thru-fastened structural wall panel installed over open framing. Non-HVHZ. Engineer must evaluate the panel attachment to substrate for fastener pullout/pullover per AISI Specifications. See Wall erection details from manufacturer. The use of this panel for shear wall application is outside the scope of this product approval.
Official Site Status: Approved
Subcategory: Structural Wall
Contact Information
Representative:
JASON NORTON
Address:
5846 Hwy 189,
BAKER, Florida 32531 USA
BAKER, Florida 32531 USA
Phone:
Website:
Read, ask experts, & comment on this topic. All for free.
Latest Posts From This Product Category
Listing Changes
Last Synced: 07/06/2025
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes
Approval & Installation Documents

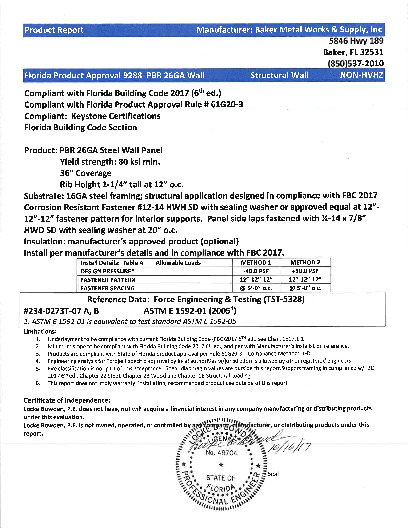

PR INSTL DOCS FL9288 R4 II FL9288 - BAKER METAL WORKS - STRUCTURAL WALL COMBINED
