FL3557.2-R14

Report Status
Approved
Code Version
2017 Florida Building Code
Application Type
Revision
Folio:
Model:

CS20-250, CS18-200, CS16-150 & CS14-100 Coiled Straps

Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:

- Coiled Straps are 20 gauge steel (CS20-250), 18 gauge steel (CS18-200), 16 gauge steel (CS16-150), or 14 gauge steel (CS14-100).

Listing Details
Category:
Components, Fasteners, Materials
Subcategory:
Wood Connectors
Evaluator:
  -
Validator:
Jeffrey P. Arneson, P.E.
Official Site Status:
Approved
Compliance Method:
Certification Mark or Listing
Approval Method:
Method 1 Option A
Entity:
DrJ Engineering LLC
Specifications
Submission Date:
April 10, 2020
Validation Date:
April 10, 2020
Expiration Date:
12/31/2021
HVHZ Approved:
No
Impact Resistant:
[ None ]
Possible CSI Codes:
CSI Code: 05 15 16 - Steel Wire Rope Assemblies
CSI Code: 05 15 19 - Stainless-Steel Wire Rope Assemblies
CSI Code: 05 15 00 - Wire Rope Assemblies
CSI Code: 05 15 13 - Aluminum Wire Rope Assemblies
CSI Code: 05 73 16 - Wire Rope Decorative Metal Railings
Other:
Each strap is 1-1/4" wide with nail holes punched at intervals of 1-1/2" along its length. The straps are manufactured from ASTM A653, Structural Steel, Grade 50 (Fu = 70 ksi, Fy = 50 ksi) steel galvanized with a G90 zinc coating
Notes:


Date Submitted: April 10, 2020

Date Validated: April 10, 2020

Entity: DrJ Engineering LLC

Compliance Method: Certification Mark or Listing

Other: Each strap is 1-1/4" wide with nail holes punched at intervals of 1-1/2" along its length. The straps are manufactured from ASTM A653, Structural Steel, Grade 50 (Fu = 70 ksi, Fy = 50 ksi) steel galvanized with a G90 zinc coating

Official Site Status: Approved

Subcategory: Wood Connectors
Manufacturer Info
Quick Tie Products, Inc. is a worldwide leader in the design and manufacture of high-quality construction fasteners. Since 1997, contractors, remodelers, and do-it-yourselfers have relied on Quick Tie's innovative fastening solutions to deliver superior results in concrete forming, reinforcing, and masonry projects. View all listings
* This manufacturer has not claimed their profile. Any logo or description displayed above has been generated by AI.
Contact Information
Representative:
Harvel Crumley
Address:
13300 Vantage Way,
Jacksonville, Florida 32218 USA
Listing Changes
Last Synced: 05/20/2024
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes

Save Time & Money with Samplize Paint Sample Bundles
Easily sample the top 8 colors in a color family + Save 10%
Approval & Installation Documents

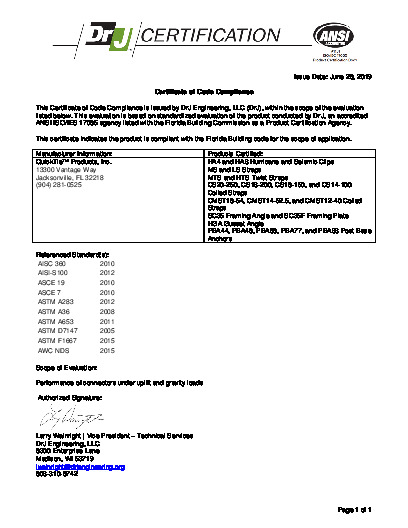

PR CERTIFICATE FL3557 R14 C CAC 190726 0910-01 FPA CERTIFICATE DRJ
PR CERTIFICATE FL3557 R14 C CAC 190726 0910-01 FPA CERTIFICATE DRJ
PR TECH DOCS FL3557 R14 AE 200203 TER 0910 01 PCM EPCM MTS HTS HA6 SEALED
PR TECH DOCS FL3557 R14 AE 200203 TER 0910 01 PCM EPCM MTS HTS HA6 SEALED

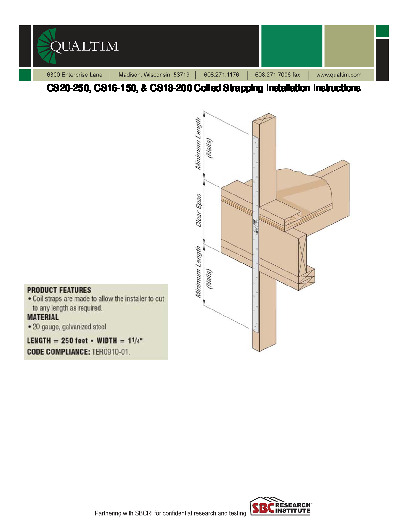

PR INSTL DOCS FL3557 R14 II CS INSTALLATION INSTRUCTIONS UPDATED110429
