FL3557.6-R10

Report Status
Approved
Code Version
2017 Florida Building Code
Application Type
Revision
Folio:
Model:

SC35 Framing Angle and SC35F Framing Plate

Manufacturer:
Database:
Florida Product Approval
Source Link:
Description:

The SC35 anchors floor and ceiling joists to headers. The SC35F provides solid blocking to top plates. The SC35 uses a 90° framing angle to join posts to beams and to make other right-angle connections.

Listing Details
Category:
Components, Fasteners, Materials
Subcategory:
Wood Connectors
Evaluator:
  -
Validator:
Jeffrey P. Arneson, P.E.
Official Site Status:
Approved
Compliance Method:
Certification Mark or Listing
Approval Method:
Method 1 Option A
Entity:
DrJ Engineering LLC
Specifications
Submission Date:
February 25, 2019
Validation Date:
March 4, 2019
Expiration Date:
12/31/2021
HVHZ Approved:
No
Impact Resistant:
[ None ]
Possible CSI Codes:
CSI Code: 05 21 23 - Steel Joist Girder Framing
CSI Code: 05 21 00 - Steel Joist Framing
CSI Code: 05 12 00 - Structural Steel Framing
CSI Code: 06 12 00 - Structural Panels
CSI Code: 14 81 13 - Beam Scaffolding
Other:
The anchors are 18 gauge (0.0466") steel manufactured from ASTM A653, Structural Steel, Grade 50, Class 3 (Fu = 70 ksi, Fy = 50 ksi) steel galvanized with a G90 zinc coating.
Notes:


Date Submitted: February 25, 2019

Date Validated: March 4, 2019

Entity: DrJ Engineering LLC

Compliance Method: Certification Mark or Listing

Other: The anchors are 18 gauge (0.0466") steel manufactured from ASTM A653, Structural Steel, Grade 50, Class 3 (Fu = 70 ksi, Fy = 50 ksi) steel galvanized with a G90 zinc coating.

Official Site Status: Approved

Subcategory: Wood Connectors
Manufacturer Info
Quick Tie Products, Inc. is a worldwide leader in the design and manufacture of high-quality construction fasteners. Since 1997, contractors, remodelers, and do-it-yourselfers have relied on Quick Tie's innovative fastening solutions to deliver superior results in concrete forming, reinforcing, and masonry projects. View all listings
* This manufacturer has not claimed their profile. Any logo or description displayed above has been generated by AI.
Contact Information
Representative:
Harvel Crumley
Address:
13300 Vantage Way,
Jacksonville, Florida 32218 USA
Listing Changes
Last Synced: 05/20/2024
Change Log effective March 1st 2023
Please sign in or create an account to view listing changes

Save Time & Money with Samplize Paint Sample Bundles
Easily sample the top 8 colors in a color family + Save 10%
Approval & Installation Documents

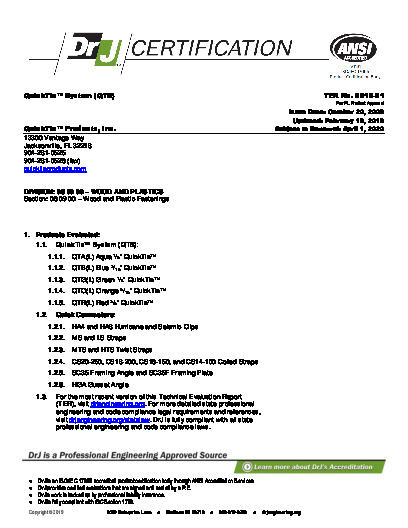

PR CERTIFICATE FL3557 R10 C CAC 190219  CERTIFICATION LETTER TER 0910-01 SYSTEMS QUICK CONNECTORS FPA
PR CERTIFICATE FL3557 R10 C CAC 190219 CERTIFICATION LETTER TER 0910-01 SYSTEMS QUICK CONNECTORS FPA
PR CERTIFICATE FL3557 R10 C CAC TER 0910 01 QT ALL PRODUCT LINES FL PRODUCT APPROVAL
PR CERTIFICATE FL3557 R10 C CAC TER 0910 01 QT ALL PRODUCT LINES FL PRODUCT APPROVAL
PR INSTL DOCS FL3557 R10 II SC35 AND SC35F INSTALLATION INSTRUCTIONS UPDATED110704
PR INSTL DOCS FL3557 R10 II SC35 AND SC35F INSTALLATION INSTRUCTIONS UPDATED110704
