Engineering Plans: Sheds

PLAN FOR THE PERFECT SHED or ADU

There's a lot more to sheds than a pretty picture

Sheds can serve a wide range of different purposes, from storage to full-on lifestyle retreats (also referred to as ADU’s – Alternate Dwelling Units).

While sheds do play a functional role, some sheds are more decorative in nature. Think  office space, extra bedroom, play area for children, spaces for garden plants, workshops, or art & music stucio, woodworking or tinkering.  Tiny houses are close cousins to sheds, incorporating all the comforts of home.

Regardless of the use of your shed, these structures need to meet code-minimum requirements to resist wind, snow, ice, seismic, and other hazardous conditions. Proper planning and a compliant engineering plan from a licensed professional are key to a shed sustaining the elements and providing decades of enjoyment for you and your family.

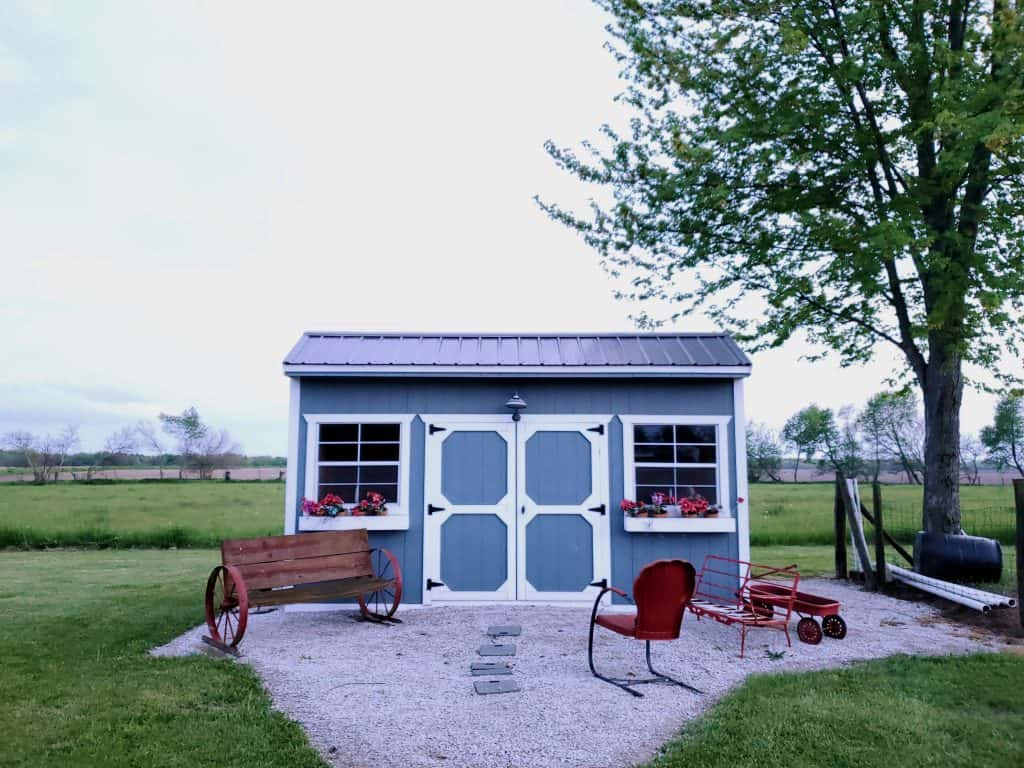

shed doors windows in grass with outdoor decor

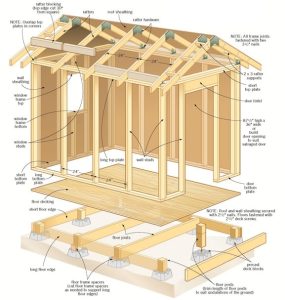

Browse over 12,000 Shed Plans

We’ve found this resource for finding excellent shed plans.  They are easy to use & build from, they offer CAD design details, material take-off lists, and they offer a risk-free purchase plan.  Free shed plans are also available.

Also Check out another one of our affiliates – ShedBuildingGuide.com

Note: EngineeringPlans.com participates in an affiliate program for these links & may receive an affiliate fee from any purchases made. There is no cost to you for this service.

Purchase engineer-certified Shed Plans for permit & construction.
Manufacturers talk to us about creating pre-engineered plans for you.

Top Considerations When Designing & Purchasing or Building A Backyard Shed or ADU

Make sure your shed area is free from debris and organics that can decay and cause erosion & settlement. You may need to excavate and bring in compatible fill or gravel.

Check city records- has the area ever flooded? You may want to raise your shed to avoid possible flooding. Foundation supports need to be able to handle both gravity & uplift forces and not just sit on the ground.

Use Tools like the ATC Wind Speed Tool to find wind speeds in your area, then use ASCE 7 resources to convert those speeds & exposures to pressures to properly design walls and connectors to withstand these forces.

Similar to walls, roofs have uplift & lateral forces to consider.  Always use extra straps from walls to the roof, wrapped and nailed per manufacturer specifications. Provide what's known as a 'continuous load path' - connecting all elements from the roof to the ground to ensure nothing comes loose and starts a cascading failure.

Windows should be rated for the design pressures determined by ASCE 7 calculations and anchored according to manufacturer's specifications.

There are strict rules to ensure those inside a shed can properly exit during a fire. Don't think that just because it's a shed the rules don't apply. Hazards can strike anytime. Follow egress & all window & door safety rules when designing your perfect shed.

Stairs have rules governing tread and riser sizes and continuity. Railings have requirements to meet minimum forces from human impact with safety factors. If your shed is over 30" from ground level, railings become a life safety concern, especially on shed balconies and decks.

You may think you're going to live in your house forever, or that your neighbor is your best friend, but these are the two most common traps to fall into if your shed doesn't meet code.

Try to sell your house with a non-compliant design or proper plans from a design professional and you find yourself spending two to four times or more for plans and code required retrofits.

Put the shed in an easement? it may have to be moved or removed for access or to shift it off of your neighbor's property line.

Always follow electrical codes and retain a licensed electrical contractor when designing and installing electrical access to your shed. Fires come quickly from faulty wires, especially in small, non-compliant wood structures where care was not taken to install proper wiring, junction boxes, and outlets.

For any of these considerations, a design professional should be consulted to determine the code-minimum design forces on your shed, and properly design the foundation, tie-down, wall strength, windows, doors, roof, roof strapping, and railings & stair access including egress, fire, head/cold, electrical, and other considerations.  Wind, snow, seismic, hail, flying debris, and other factors contribute to shed structural integrity. This site is not intending to offer professional design advice.  Nothing mentioned here should be used for design without consulting a professional.
