Framing, Mechanical, Electrical, and Plumbing Installation Micro-Doc

Watch the interior framing, mechanical, electrical, and plumbing installation in this entertaining micro-doc

Beyond The Video (A Micro-Doc)

The framing & MEP teams brought their tools & their ‘A’ game to frame & rough in MEP work in this two-story house in record time.

Multiple teams worked side-by-side to give life to the hollow space created by the masonry shell. If you are looking for masonry plans and product approvals, check out our easy-to-use Florida Product Approvals search engine.

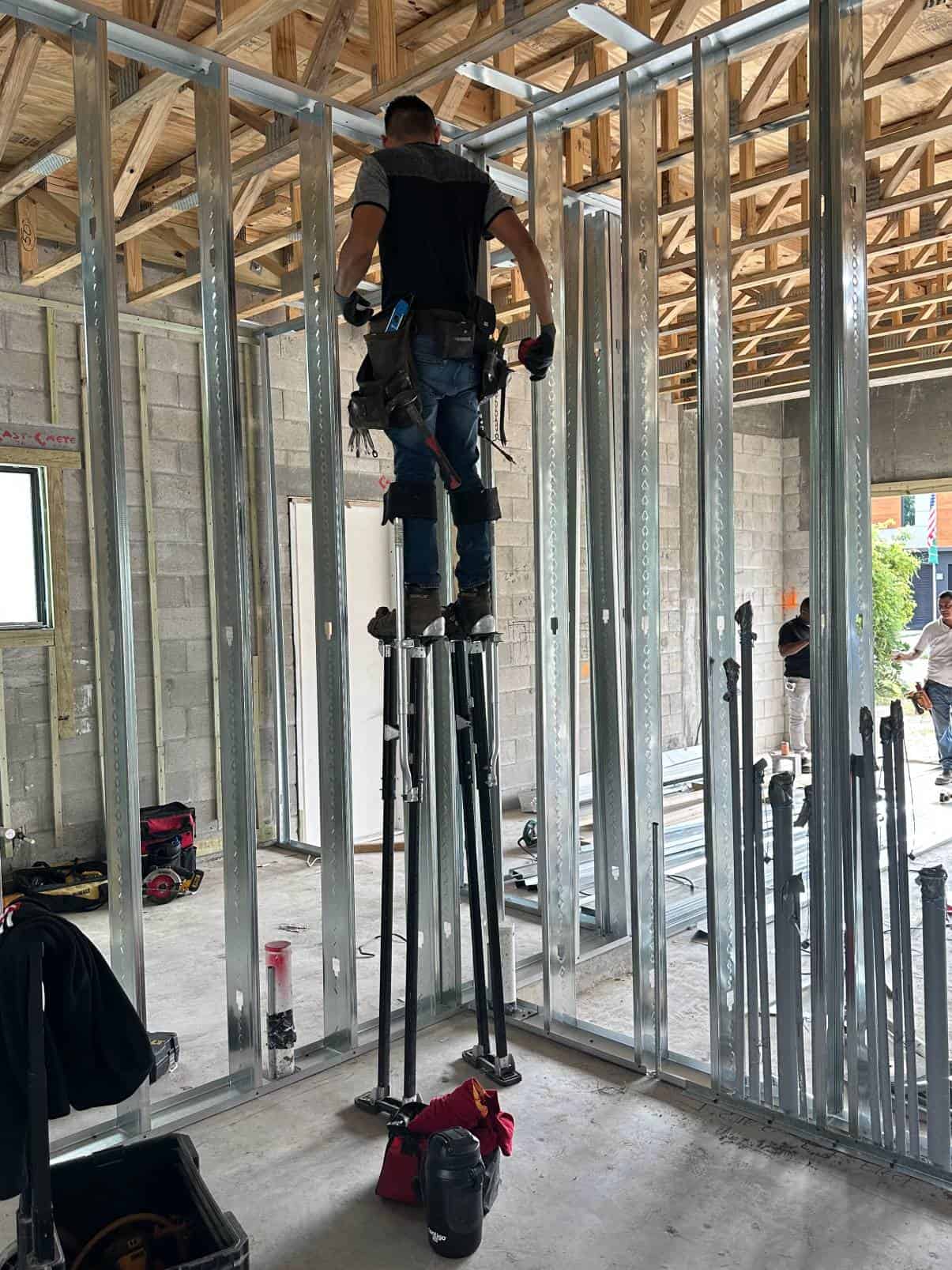

This photo is one of many who worked day after day on stilts to reach areas of framing quickly.

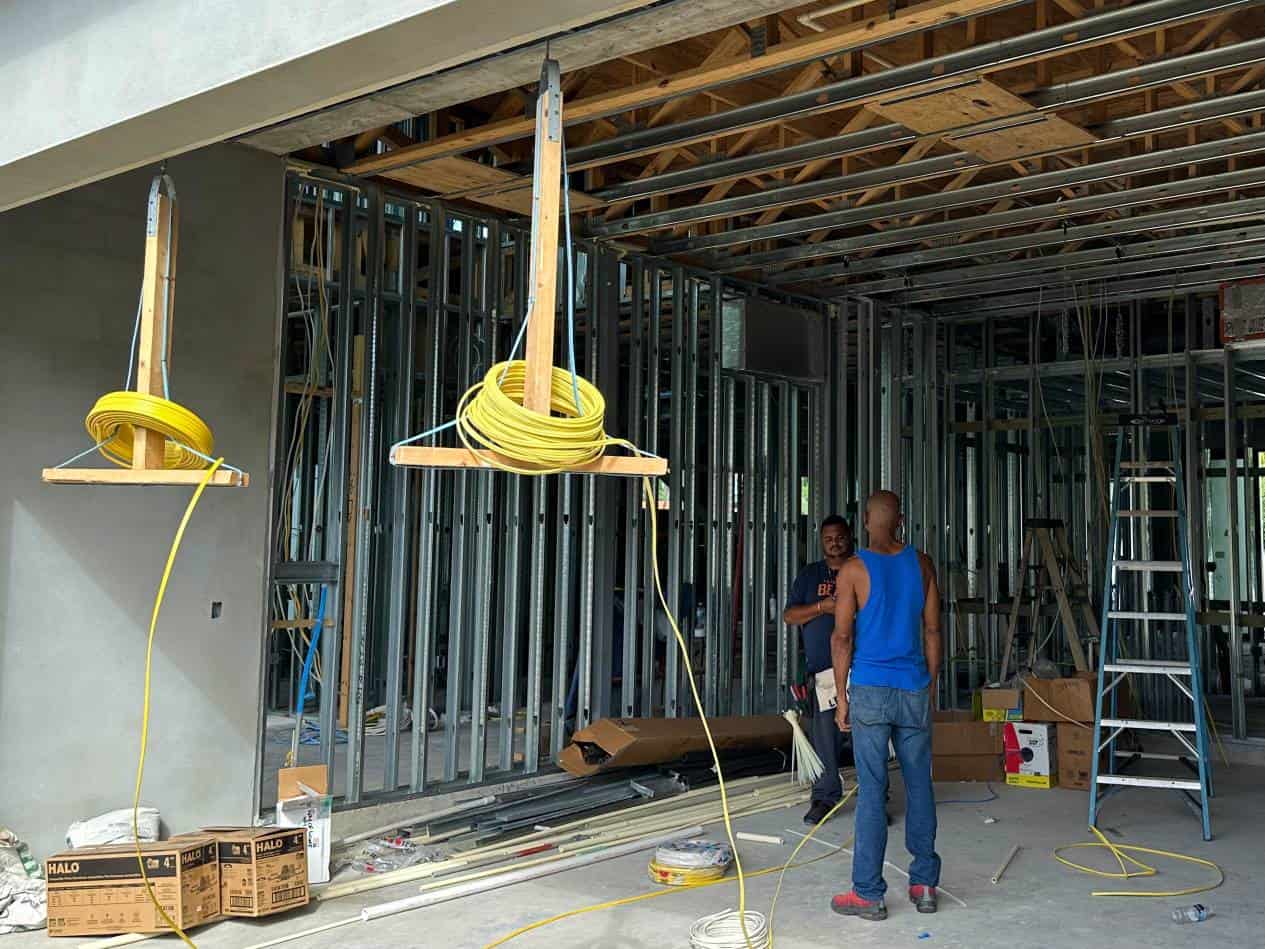

Watch the video for other innovations, like the homemade electrical wire spindles that quickly provide the miles of wire needed for electrical work, as seen below.

Time Lapse - Shower Pans

The video illustrates the shower pan bottom felt liner being installed, but there’s more to the shower story to tell.

Here’s a time-lapse of what it took to form the shower pan & prepare for walls & tile. Click/press the photos for a closer look.

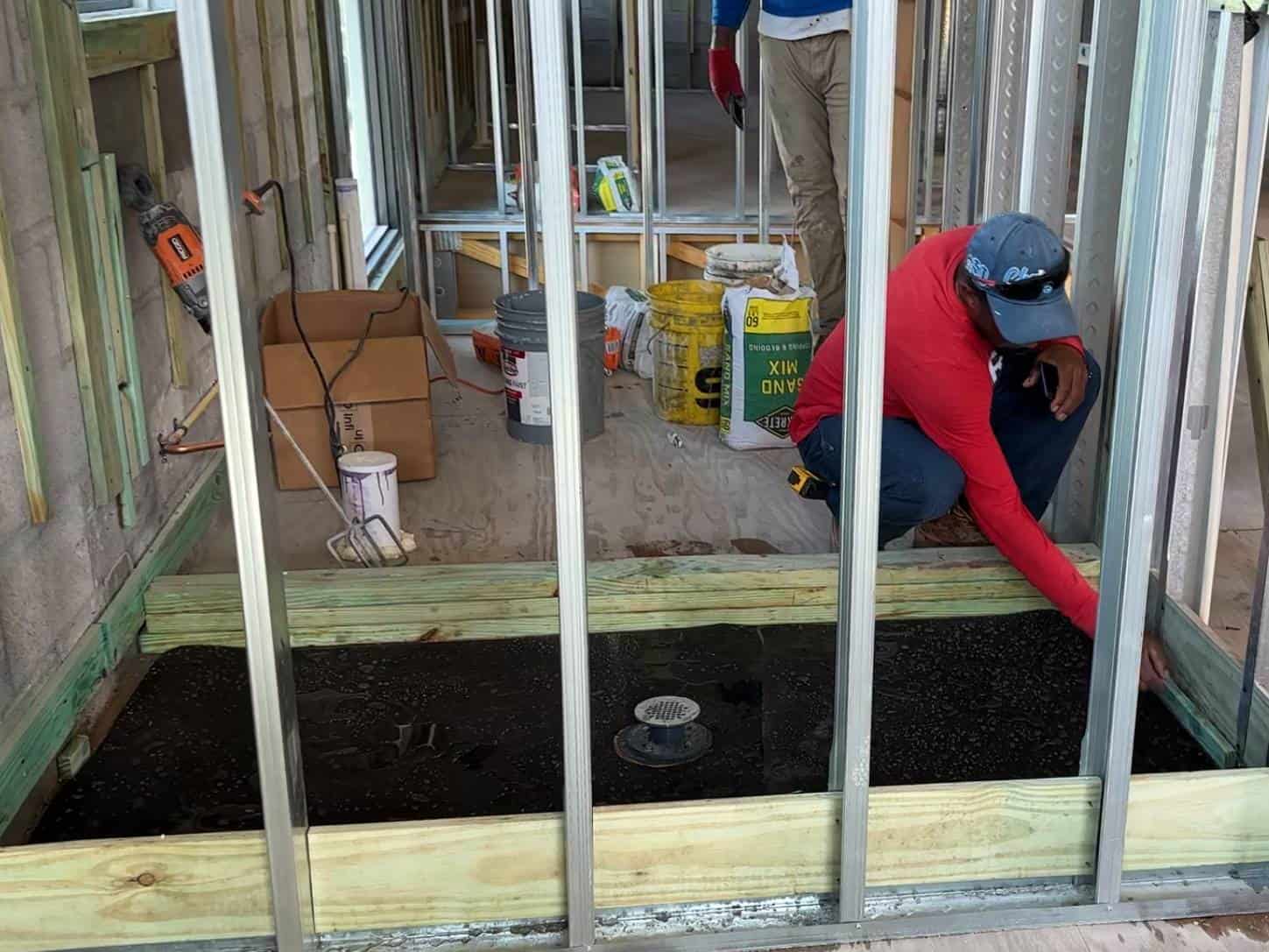

Wood curbs are constructed to form the pan frame. Felt paper lines the bottom to protect the base material from the concrete base.

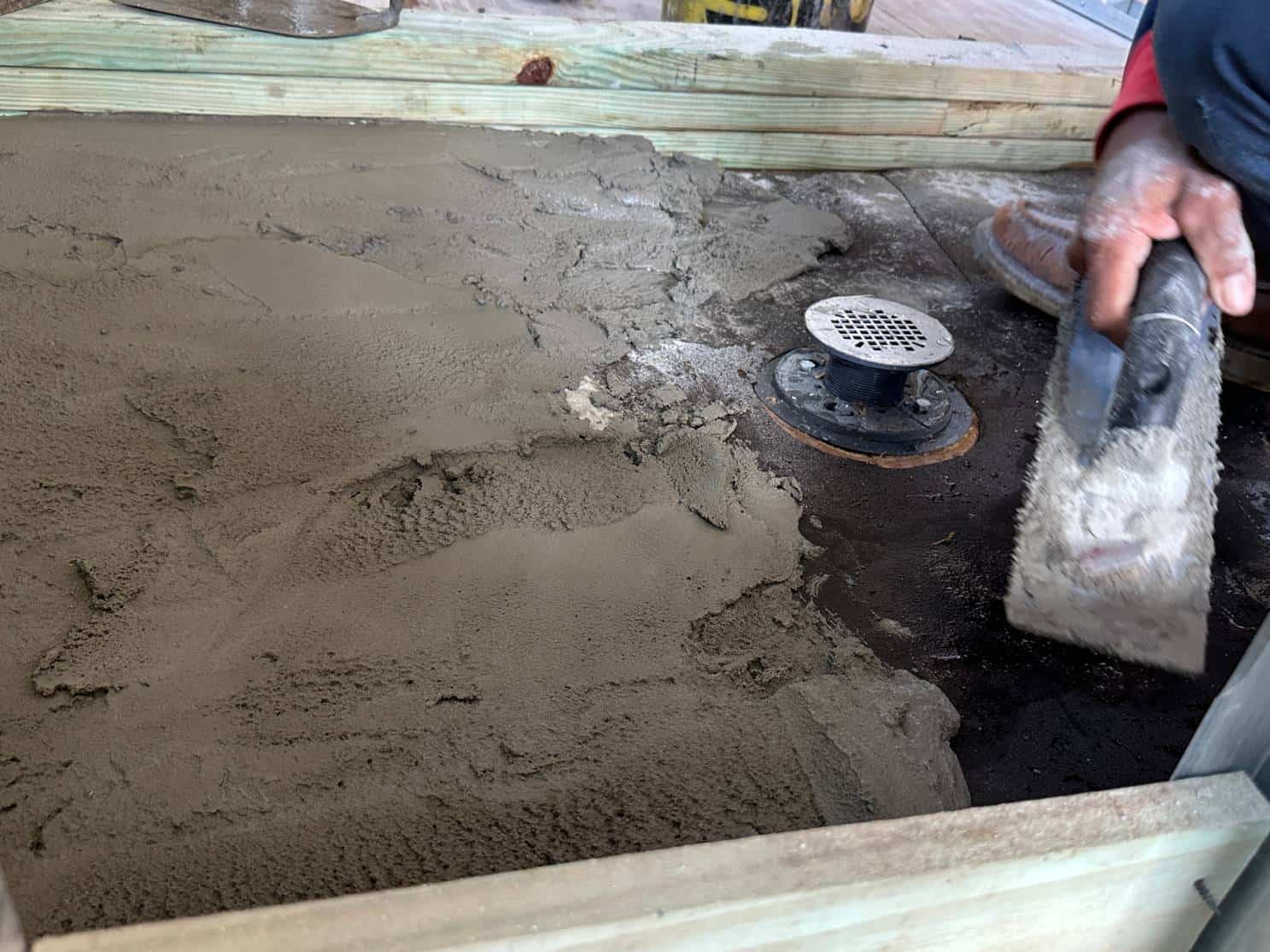

Concrete is formed and sloped to allow water to run toward the drain. A temporary drain is installed to assist with height & framing. The final drain will replace it after the tile is set.

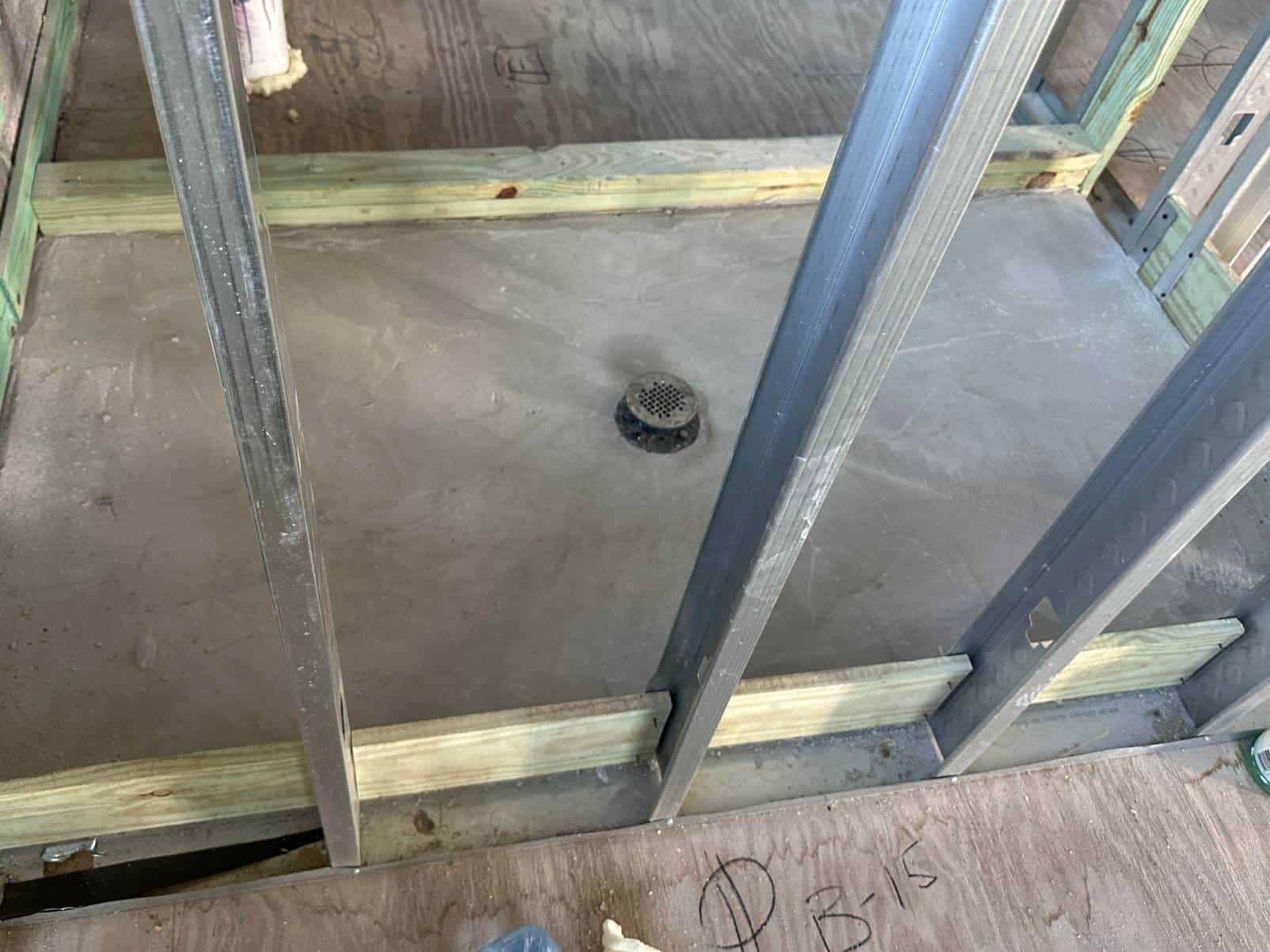

This is finished concrete over the felt paper in preparation for the shower pan.

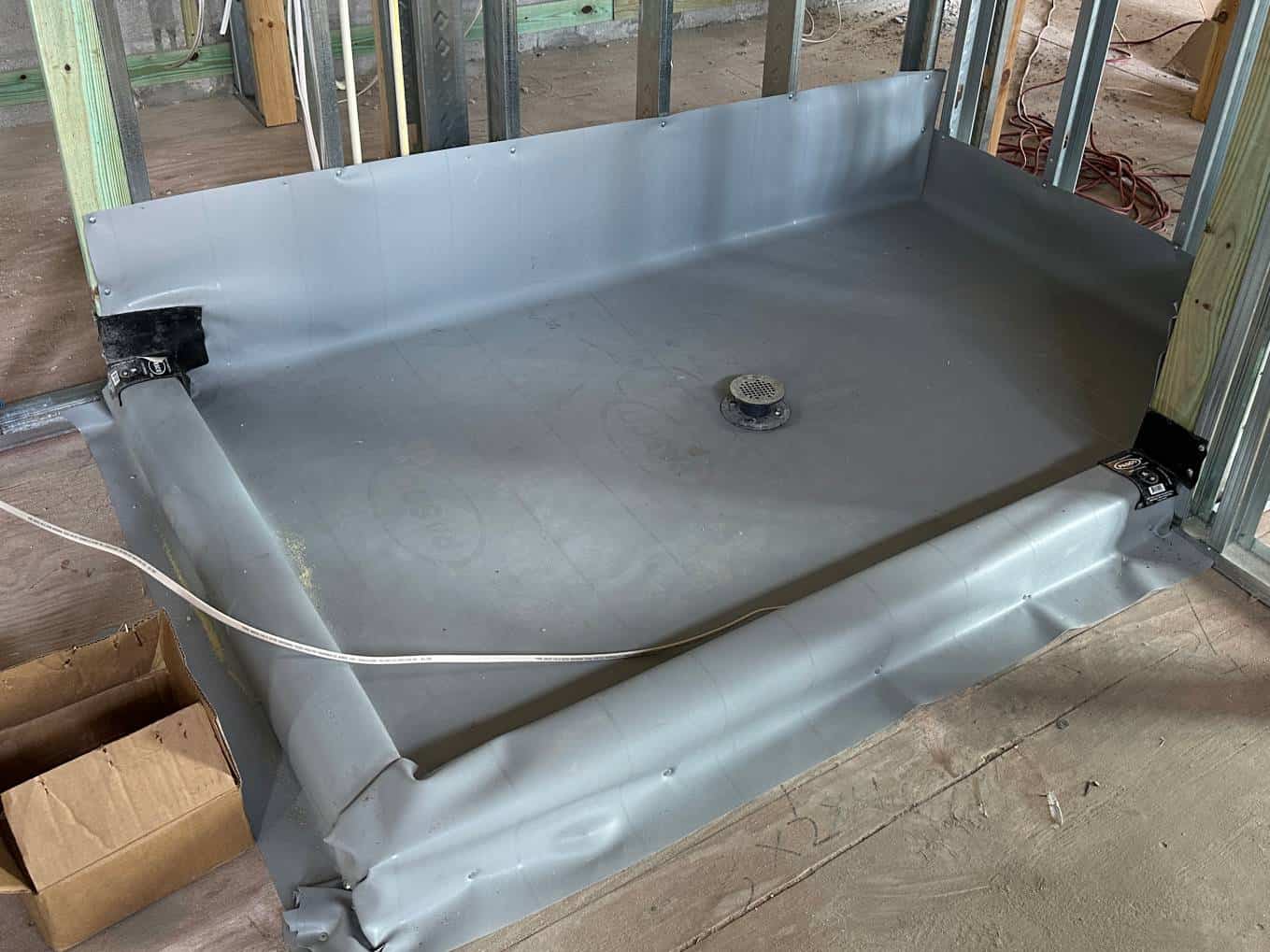

Last, the shower pan is installed. Extra pan material is left at walls which go behind water-resistant drywall.  More on the drywall in an upcoming episode. The pan material is bent over the shower curb in preparation for the tile coming soon.


Try Our Amazing Search

Introducing a new era in Product Approval Search. Find the right building product for your project FAST, stay notified of new products, & more.
Search product approvals

Field Changes

Every project has on-site changes that you don’t see on plans but realize once work is framed.

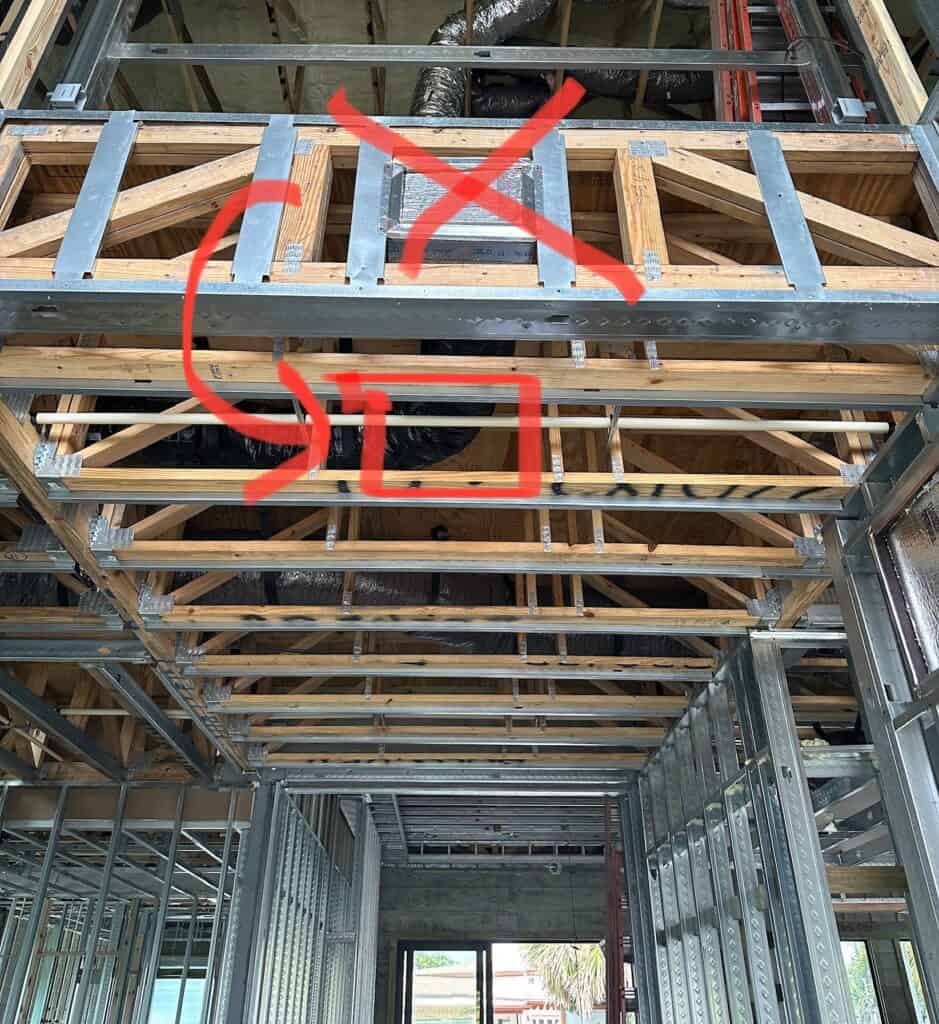

In the photo on the left, it was decided in the field to move the AC vent in this area open to the second floor to the ceiling to provide a clean finish on the partition between floors.

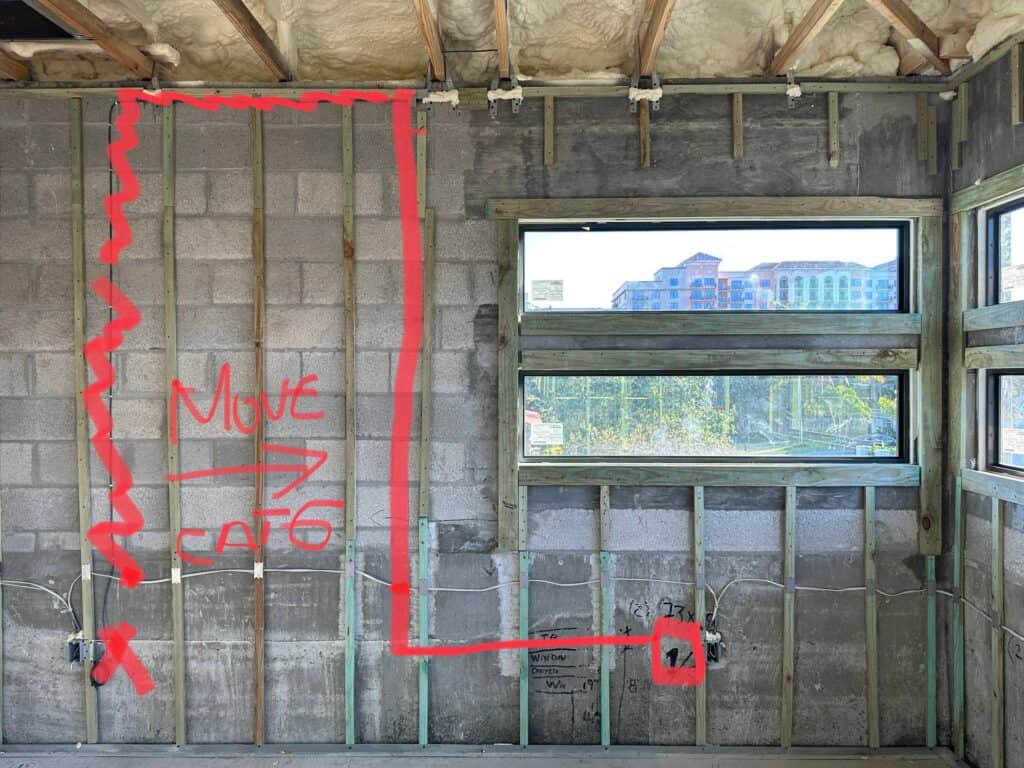

In the photo below, CAT-6 cabling was re-routed closer to the corner to allow a more discreet installation of computer components in this office space.

Installation Anomolies

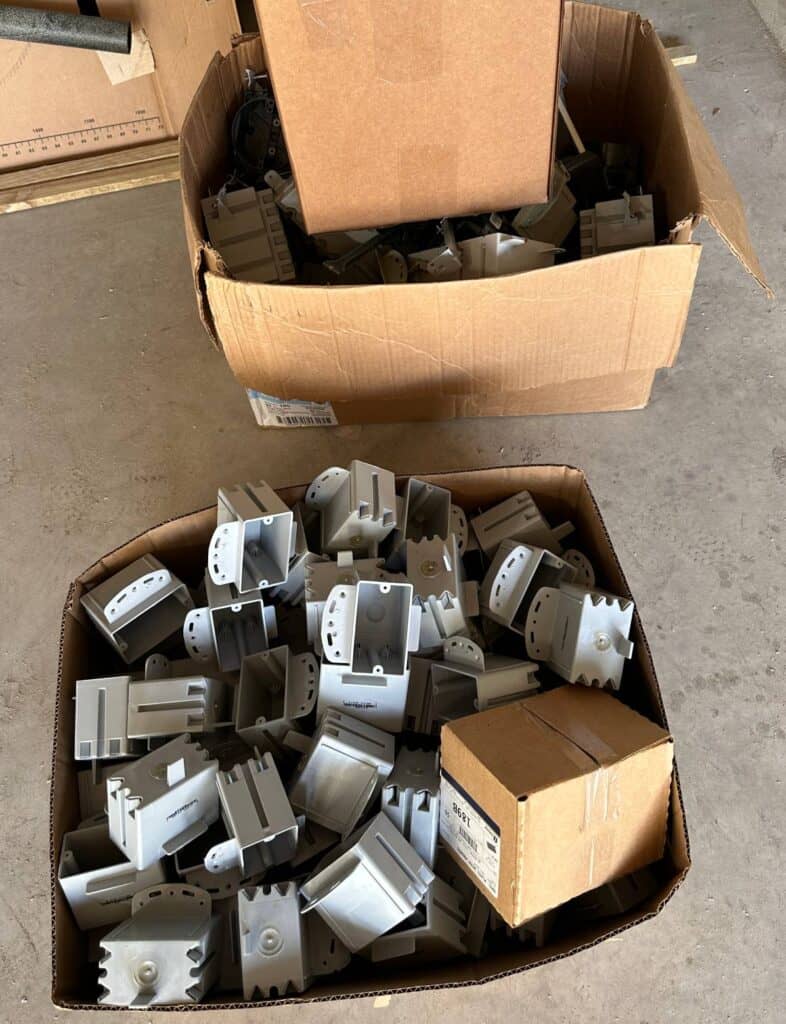

With over 100 of these plastic gang boxes to be installed, some areas require creative solutions.

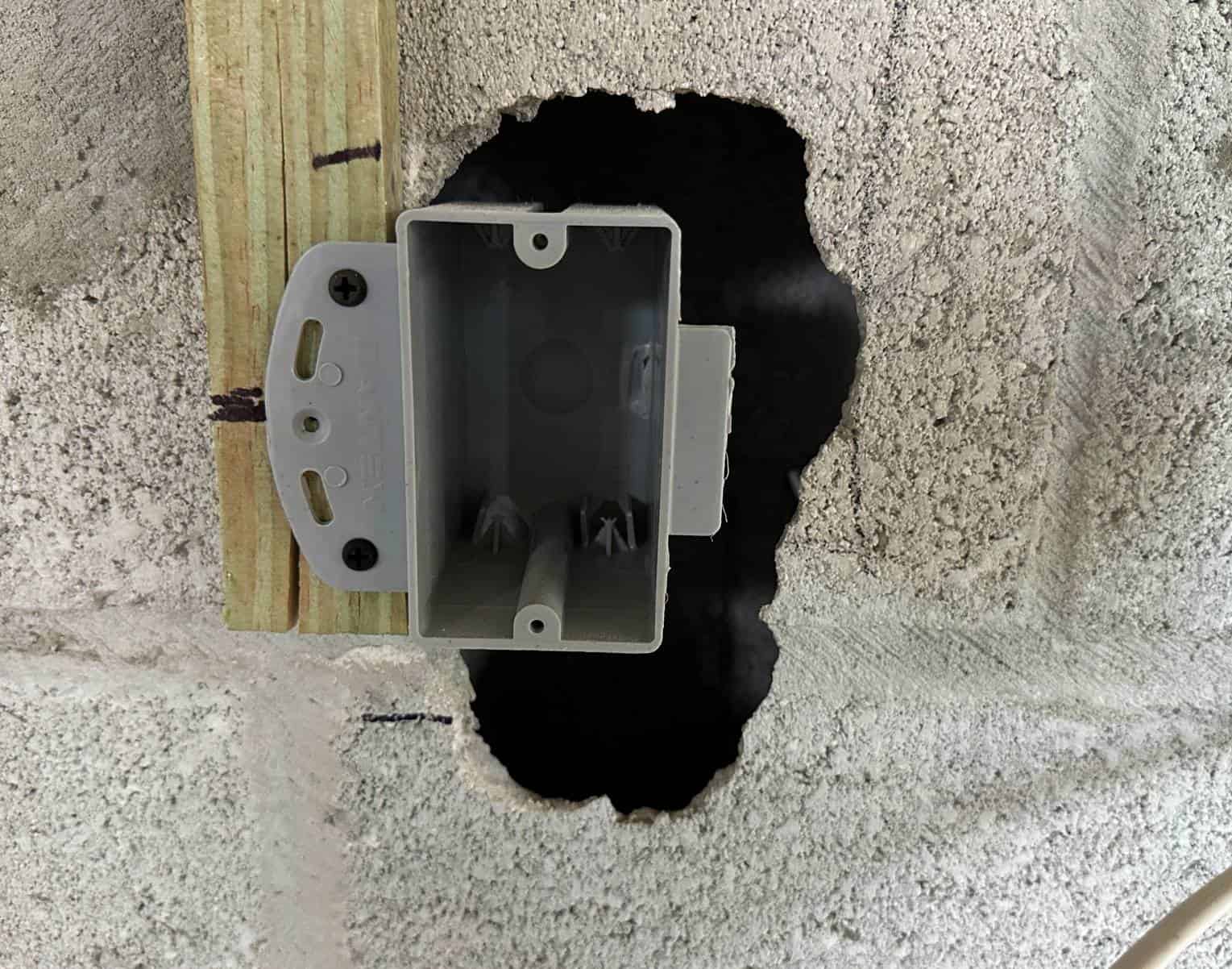

In the situation below, the exterior masonry wall block is knocked out to accommodate the receptacle.  It will be filled with insulating foam to restore thermal properties but they become weak points in the wall.

So What's He Doing?

With framing complete, it’s a requirement to fire-stop and seal areas from air leakage.

Each opening is sealed, and the area is prepared for our upcoming episode, the drywall installation. That’s going to surprise and entertain!
