Episode 2 – 1st Floor Masonry Walls

Bricks And Sticks

There’s more to masonry construction then cementing blocks together to make a wall.

In this episode, see inside walls to learn how block houses are reinforced to build a house.

Block Delivery

Your GC first needs to estimate the amount of blocks needed for your project.

A typical block is roughly 8″ X 16″ X 8″ deep.

Count blocks needed for solid wall areas. Subtract blocks for windows & doors, add for breakage, etc., and always round up to the next palette size.

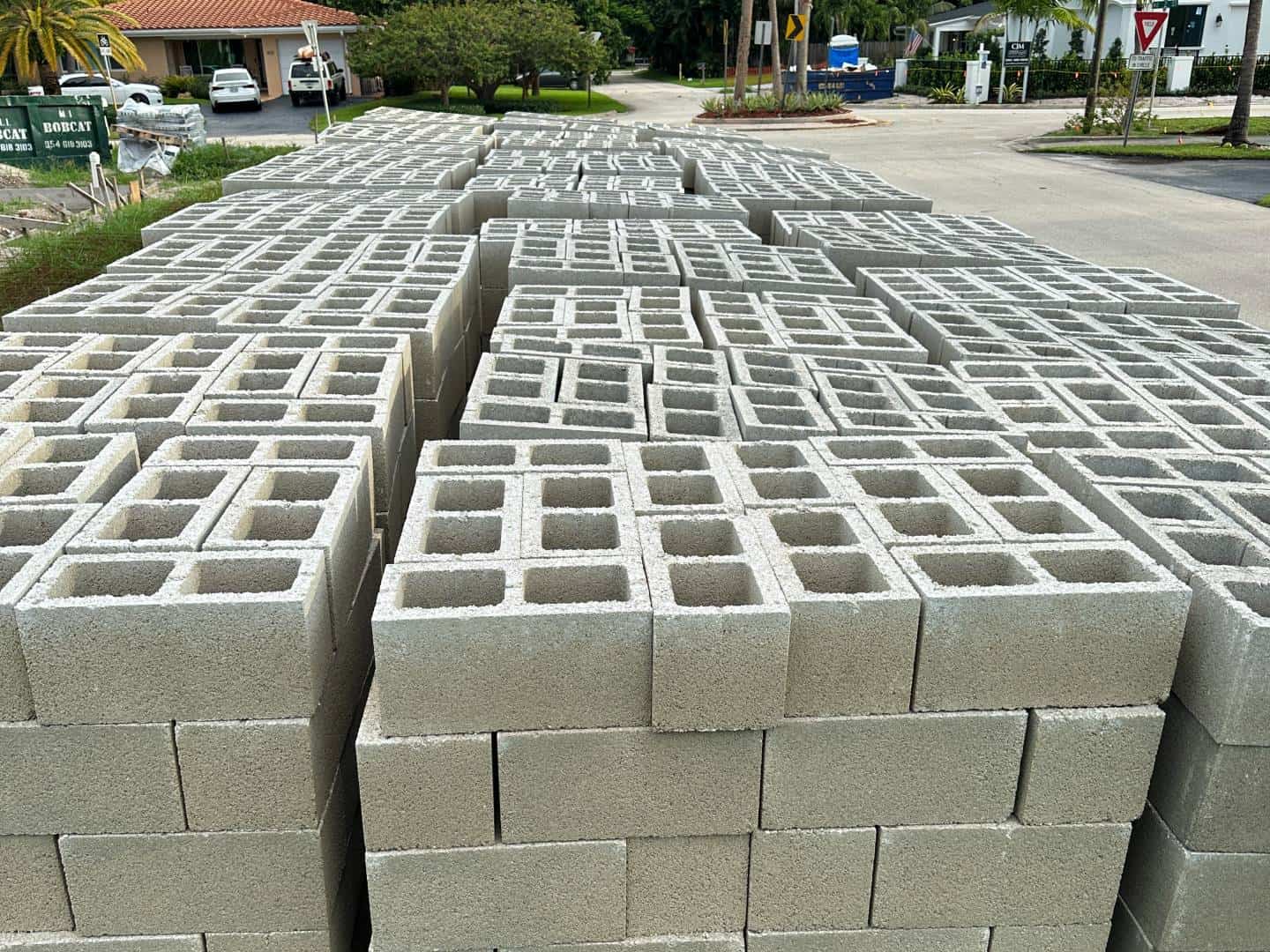

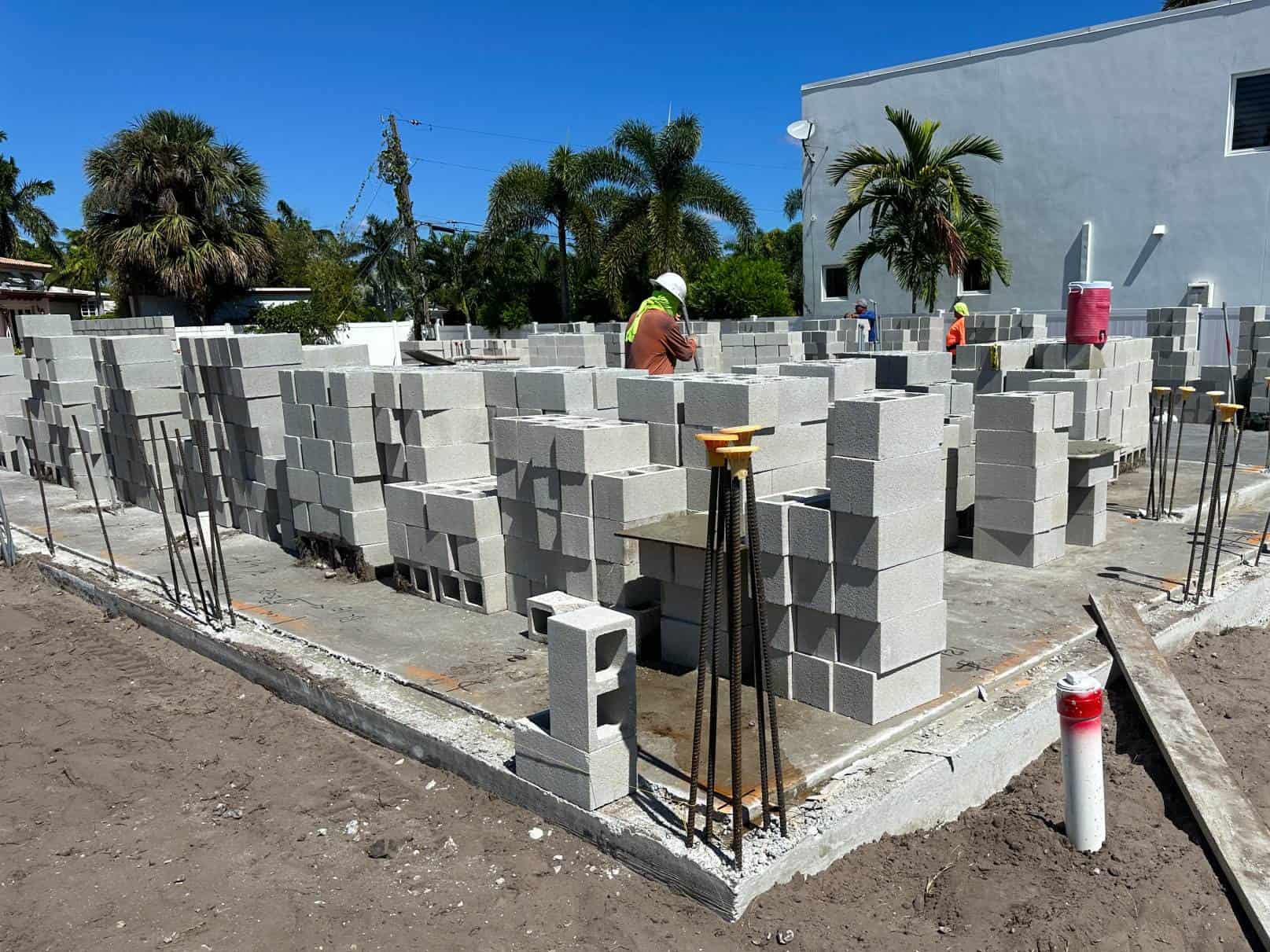

Blocks for the first floor of our project were dropped off in palettes awaiting installation.

The Setup

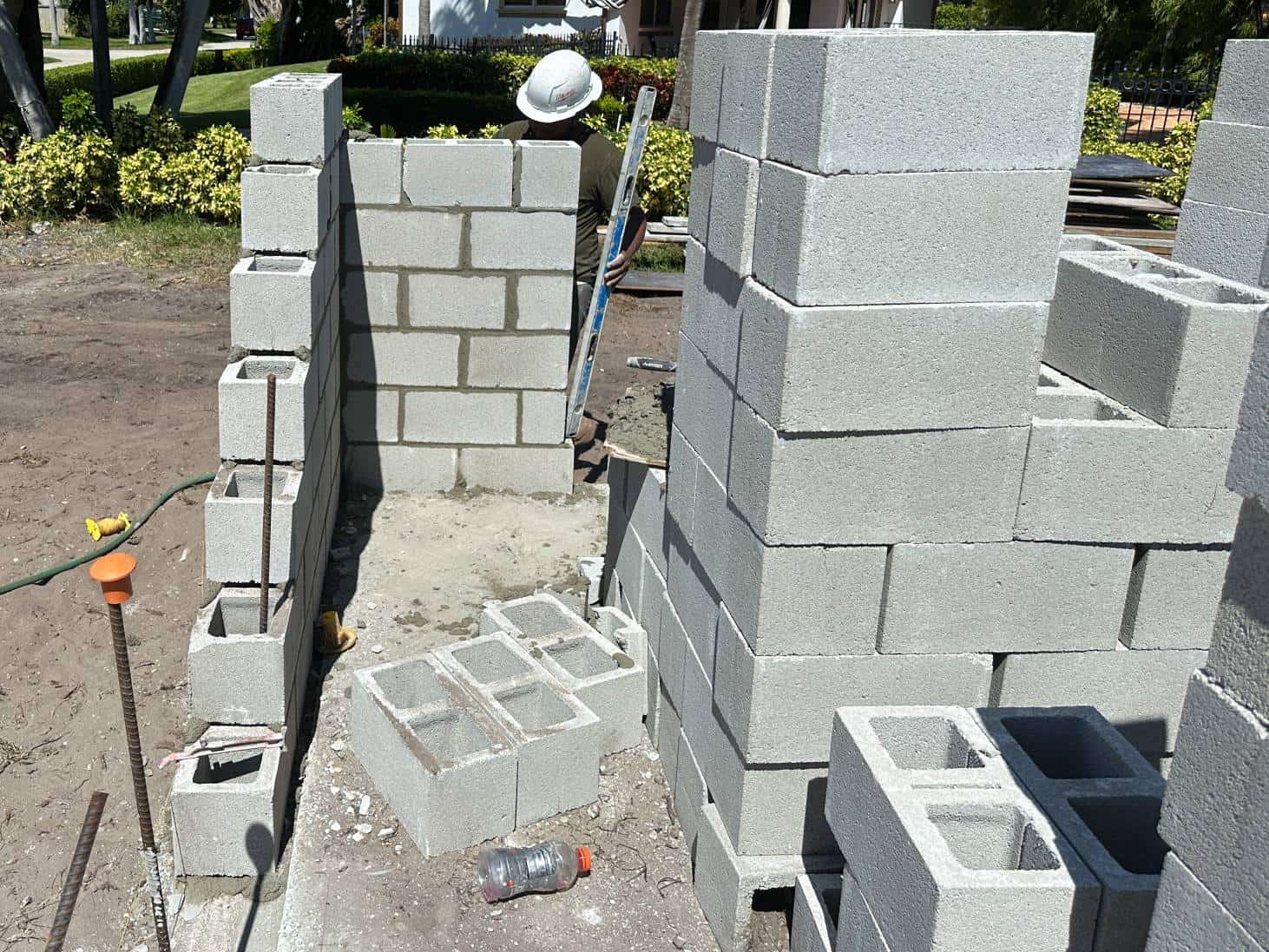

Masons arrive at the project site and position blocks in their rough locations.

This is important not only for quick installation but to make sure the mortar stays consistent as it’s made without delay.





Walls Are Formed

Area by area, course by course, block is laid.

There’s something more going on here though.

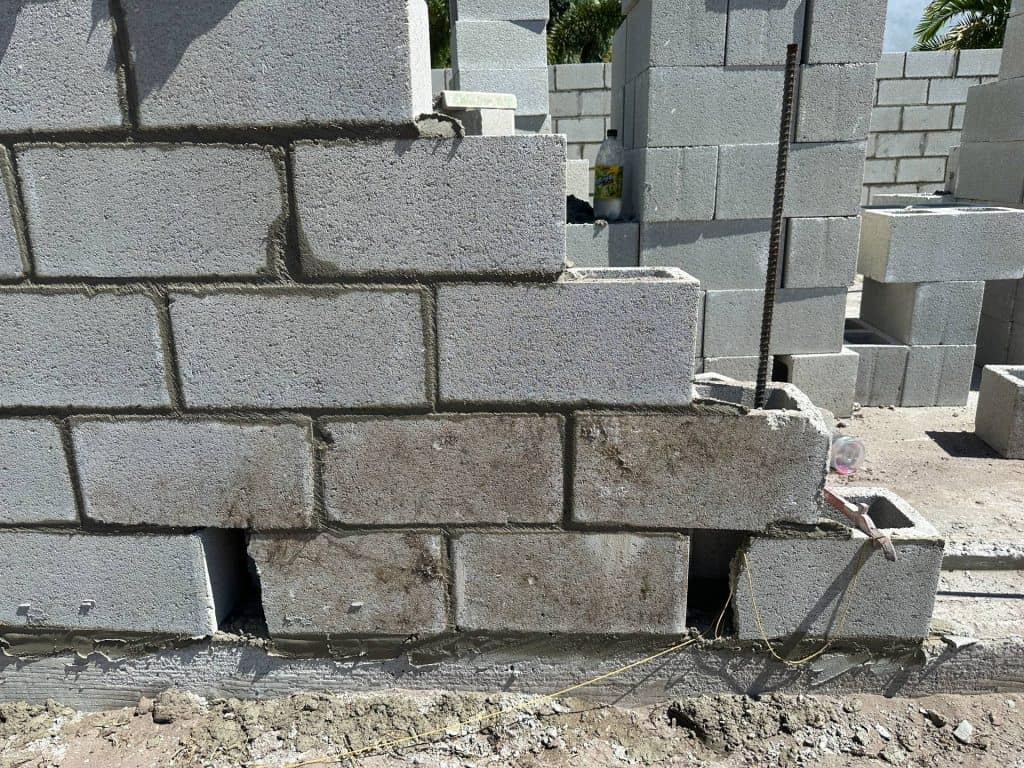

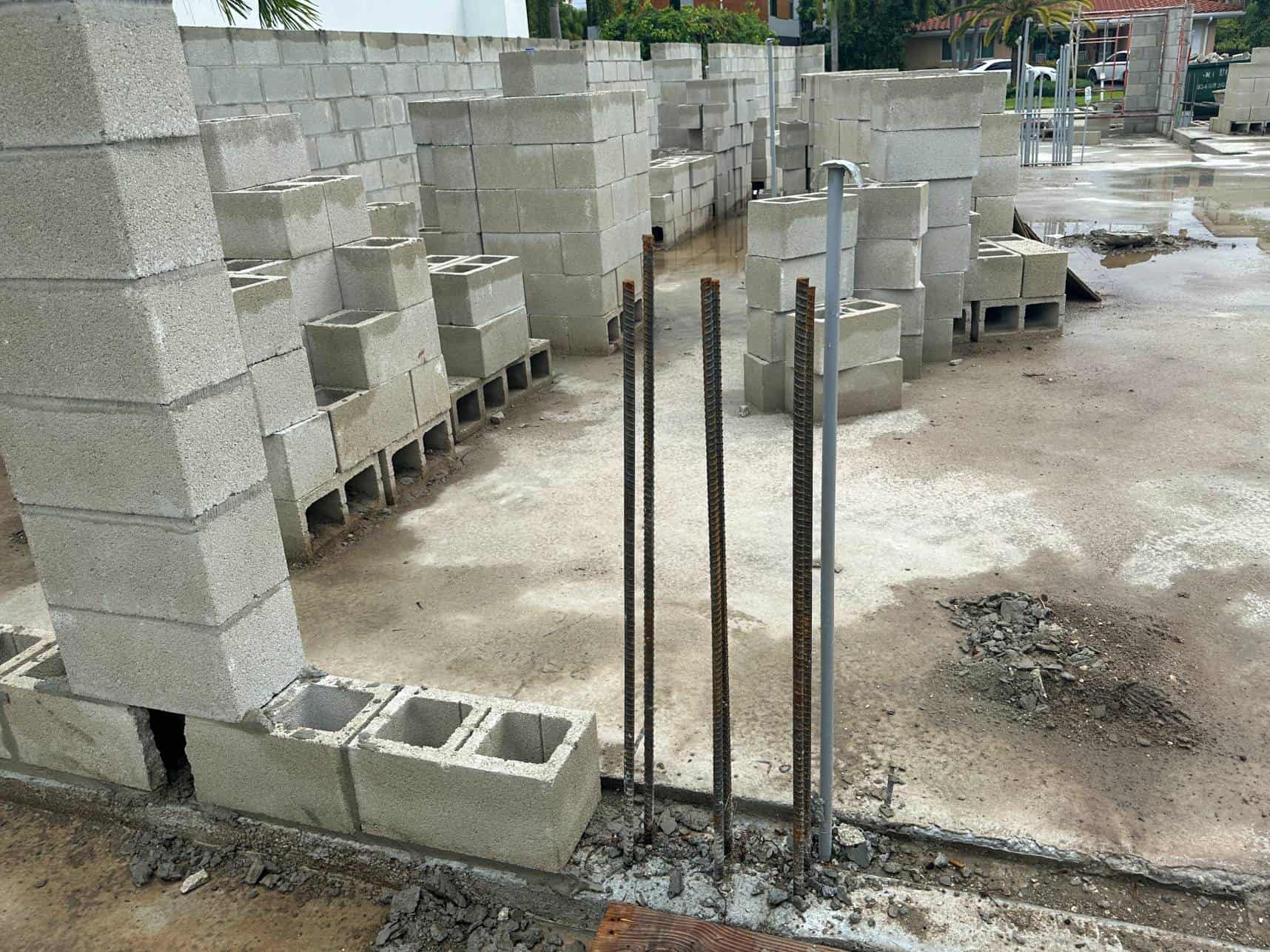

Episode 1 showed us how reinforcing steel was stubbed out of the slab to be integrated in the walls in key locations.  These bars rise up about 4′ and sit inside the masonry cells.

Another bar will be dropped down from the top and tied to this bar, and that cell will be filled with mortar.

Wait,
There’s More

In addition to the vertical steel reinforcing, every other course of block is set with horizontal joint reinforcing. This ensures a sound mesh of steel hidden inside masonry walls in both directions.

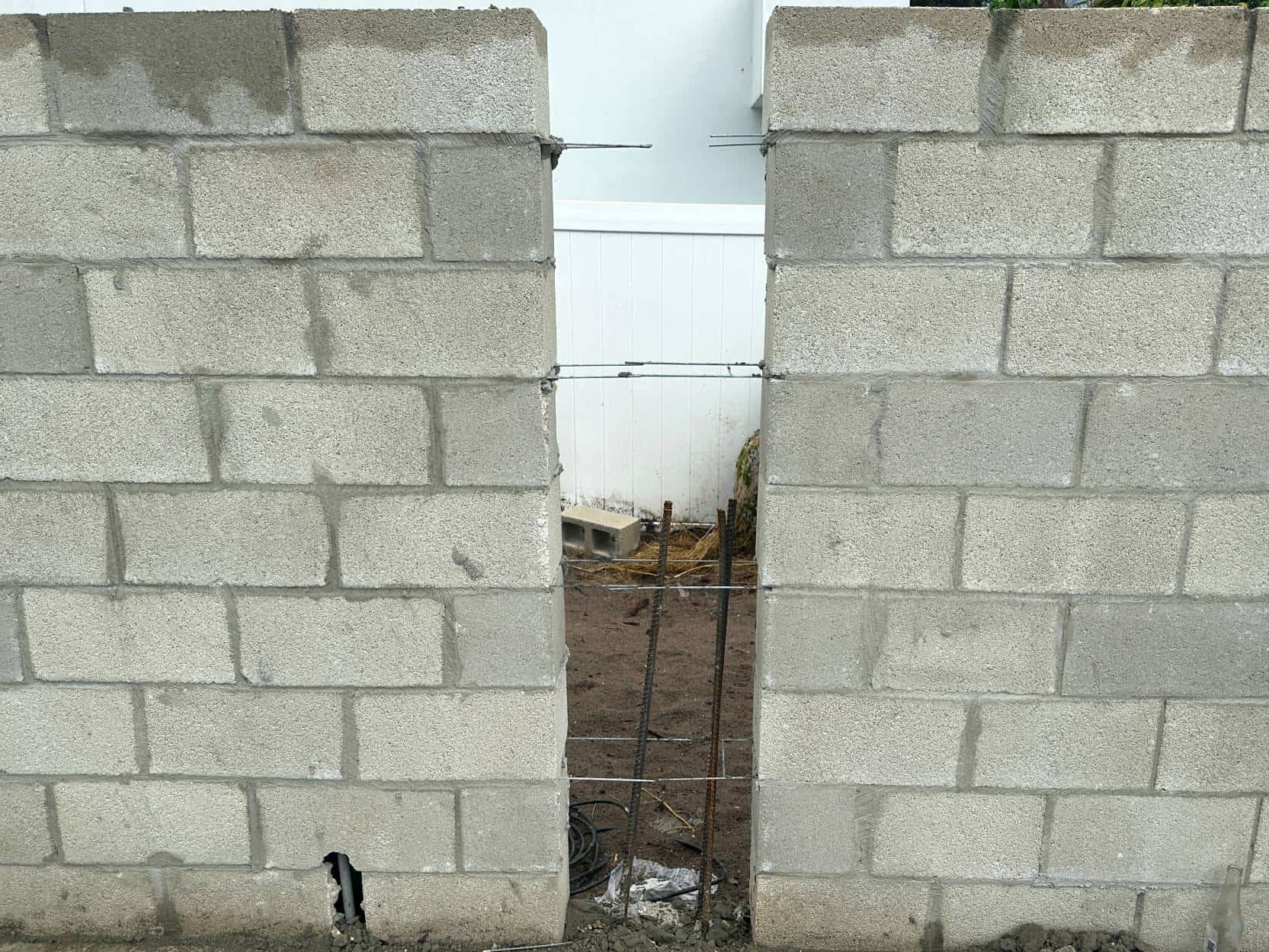

Breaks in the walls are for windows, doors & poured columns like this one.

If you look closely you can also see the horizontal joint reinforcement sticking into the poured column area (click the photo).

Breakout Article - Wood Framed Houses

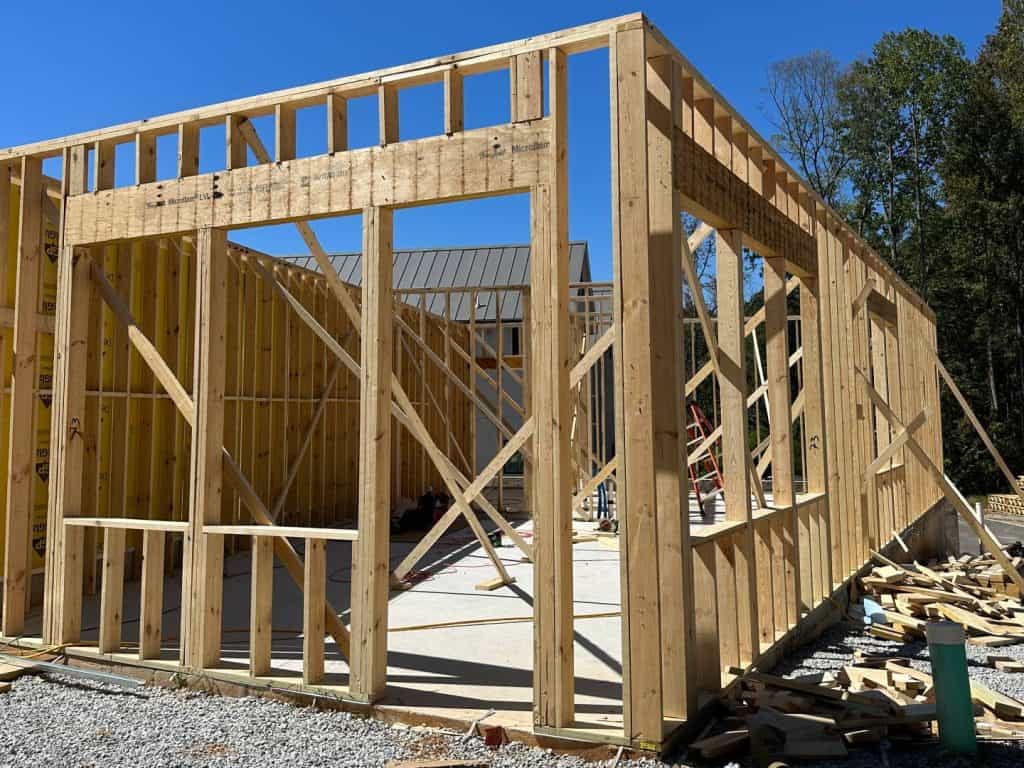

This is a masonry house.  But many houses are wood frame.  Click below to read our article illustrating the differences in wood design from masonry construction.

wood framed walls overview

Close-Up

More about the parts that make up the masonry walls. Press photos to zoom in.

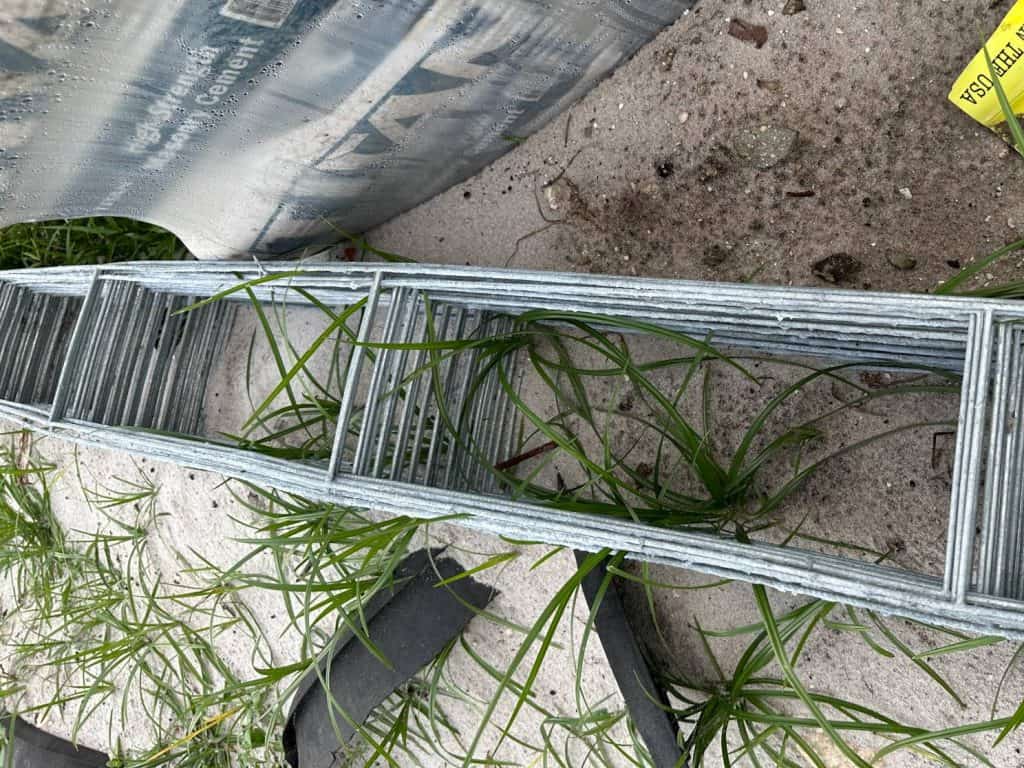

This is what the horizontal joint reinforcing looks like
(see also #3 below).

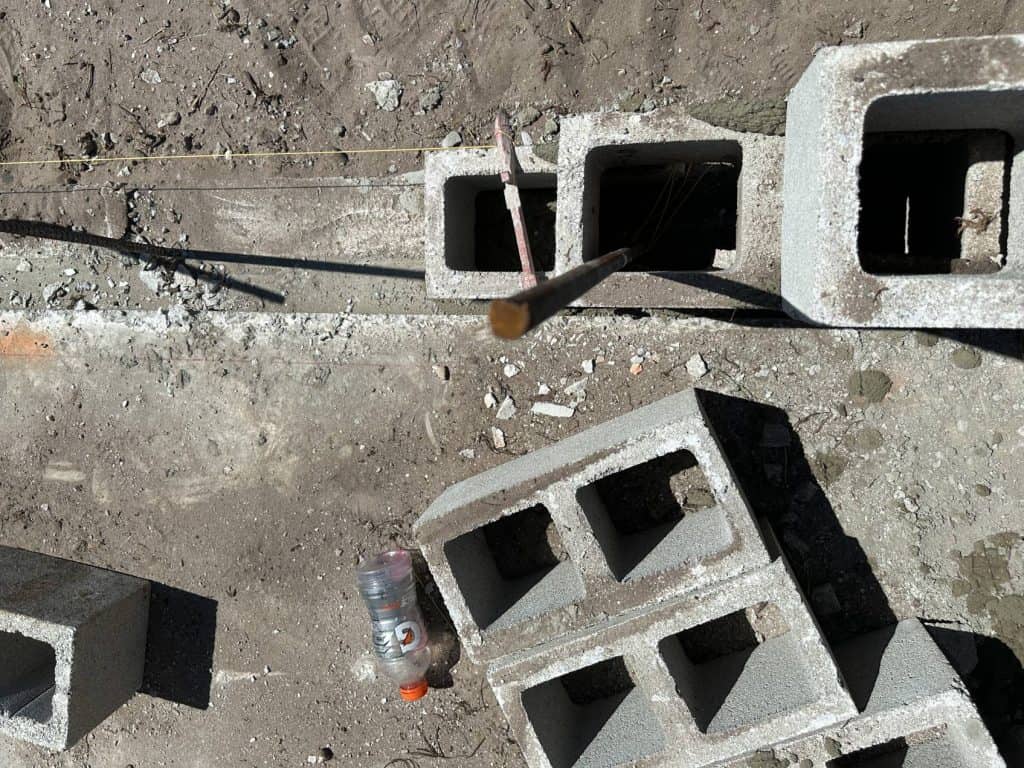

Close-up of the vertical reinforcing steel inside the masonry cell.

Don’t worry, it’s centered, it’s just bent over. (see #2 below).

Lintels are used to span over
windows & doors.
(see #7 below).

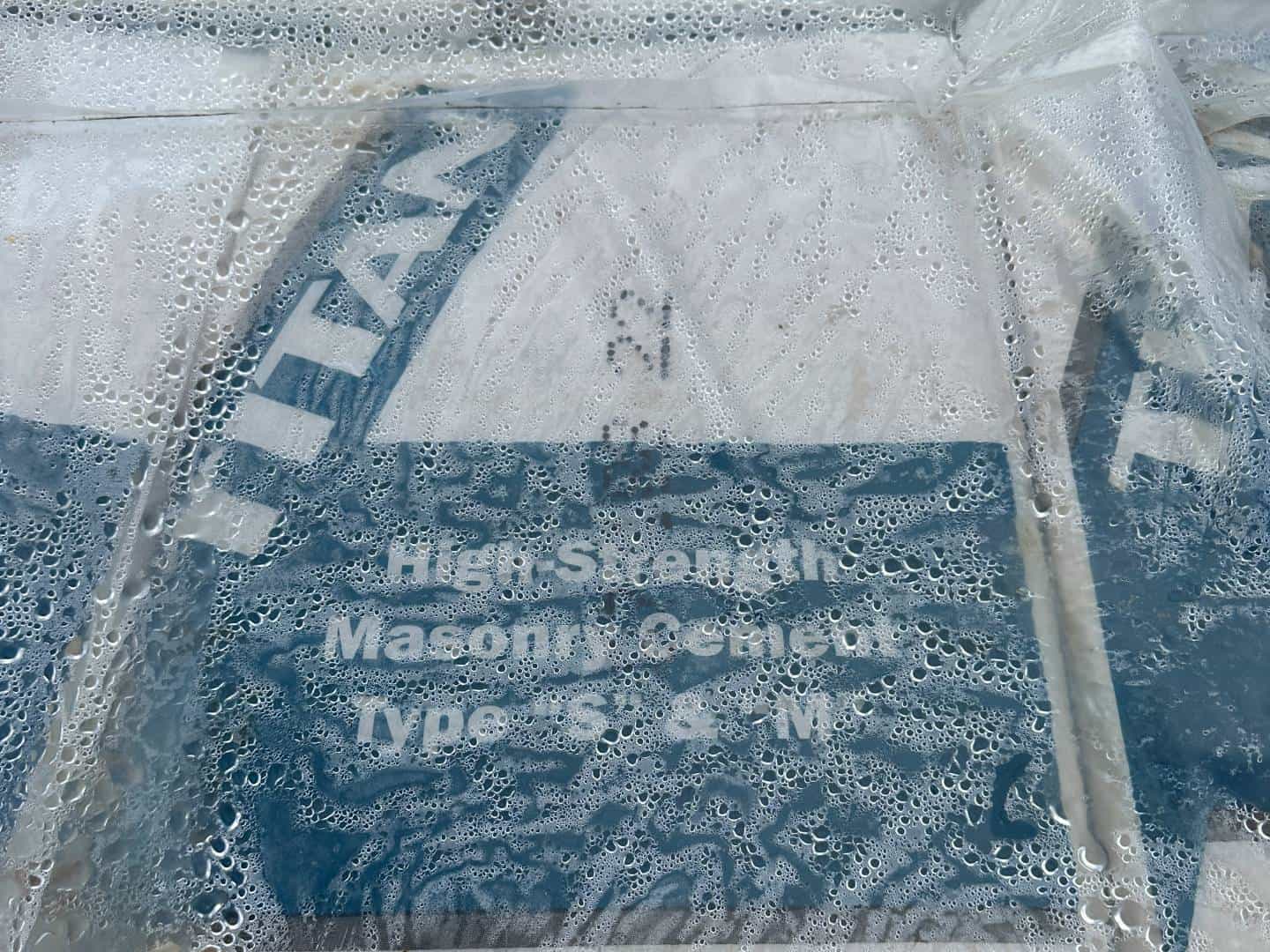

Masonry wall cement is used to bond the blocks. It’s unique in that it has no rock aggregate and lays easily in the block.

Technical Corner - Plan Tutorial

The Engineering Behind The Plan

Learn to read the construction plans

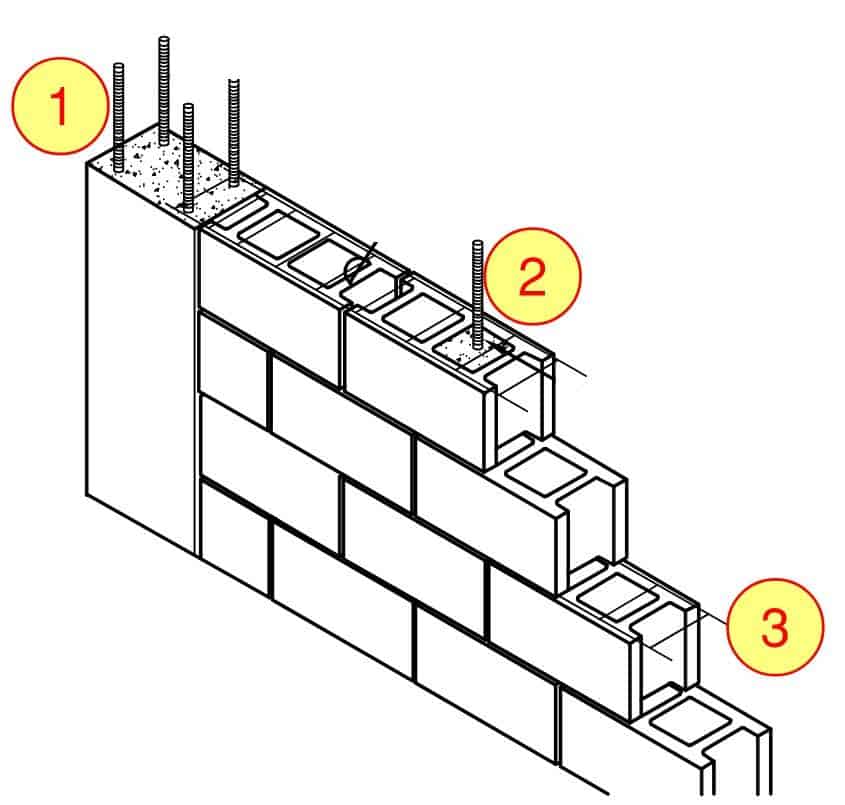

Plan Page: The Masonry Wall Details

1:  Vertical steel reinforcing bars for poured columns. You can see them on the foundation plan in Episode 1.

2: Vertical steel reinforcing for inside the masonry walls, creating a ‘filled cell’.

3: Horizontal joint reinforcing, installed every other block course, to strengthen walls & prevent cracking.

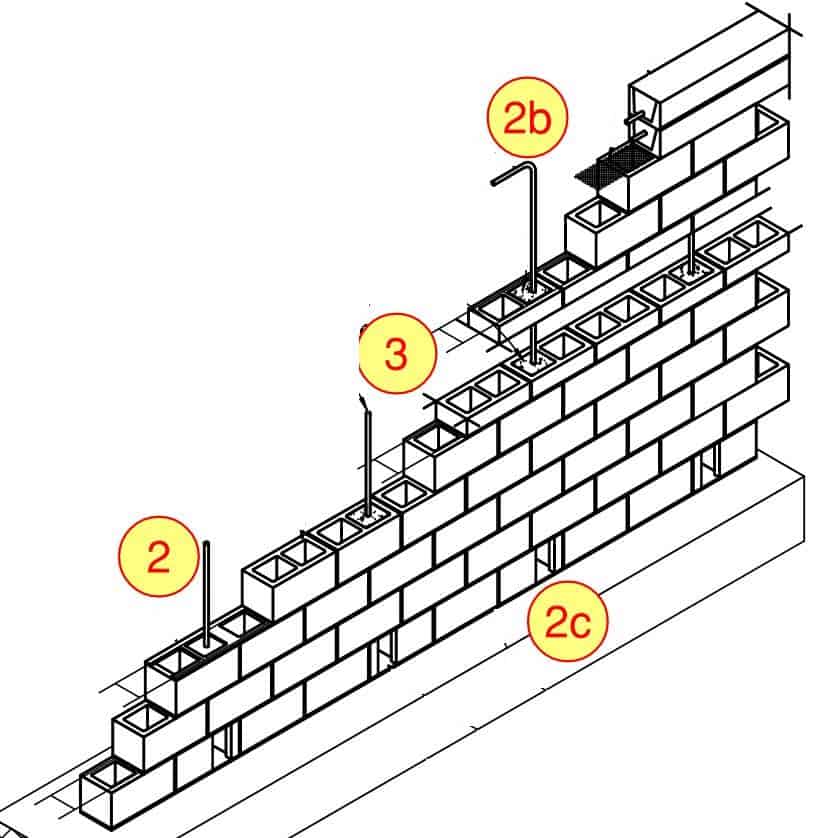

2b: Top of the reinforcing bar, bent into the tie beam (covered in episode 3).

2c: This shows the bottom of the filled cell block open to allow the wall steel to tie into the slab steel & be inspected.

Click image to enlarge
Masonry filled cell graphic b

The Engineering Behind The Plan, explained: These ‘filled cells’ are calculated by engineers to take both gravity forces from the floor and roof above at the same time as maximum hurricane winds (even uplift forces).

Their spacing, bar size, and height are taken into account in the calculations. When a filled cell can’t hold enough of these loads, poured columns are used. That’s coming in episode 3.

Quick Clips From The Field

Walk the project with us for a better view of the masonry wall construction.

The Finished Product

Here’s an overview of the finished masonry walls.  It has a long way to go to gain enough strength to hold what’s to come, but the house is taking shape.

You can see the masonry wall features discussed here in this photo.

What Happens After The Masonry Walls Are Installed?

There’s a lot ahead (the pretty stuff too!). Blocks on their own aren’t very strong.

These walls need to be ‘tied’ together with tie beams and tie columns.  That’s in episode 3.  Some surprises await!
